Bottle Makers

24 Jun 2021, last revised 11 Dec 2023

Maker's Marks on Copper Country Bottles

A maker's mark indicates the glass factory that manufactured a bottle. If present, it consists of embossed initials or a monogram on the base or heel of a bottle. Knowing the maker reveals another dimension of fascinating history that can be particularly useful for dating bottles.

Glass makers typically specialized in the types of bottles they manufactured. Thus, soda/beer bottles vs. pharmacy bottles vs. milk bottles were mostly made by different glass makers.

Here we describe the maker's marks found on Copper Country bottles. For more information see Toulouse (1), David Whitten's site, glassbottlemarks.com, and Bill Lindsey's site, sha.org/bottle/makersmarks.htm, which includes the Encyclopedia of Manufacturer's Marks on Historic Bottles by Bill Lockhart and others.

Maker's Mark
Dates of Use
Glass Factory
Location
Example
Found on:

1882-c.1895
Bellaire Bottle Co.
Bellaire, OH (1882-1922)
phar. #30
example
pharmacy: #30

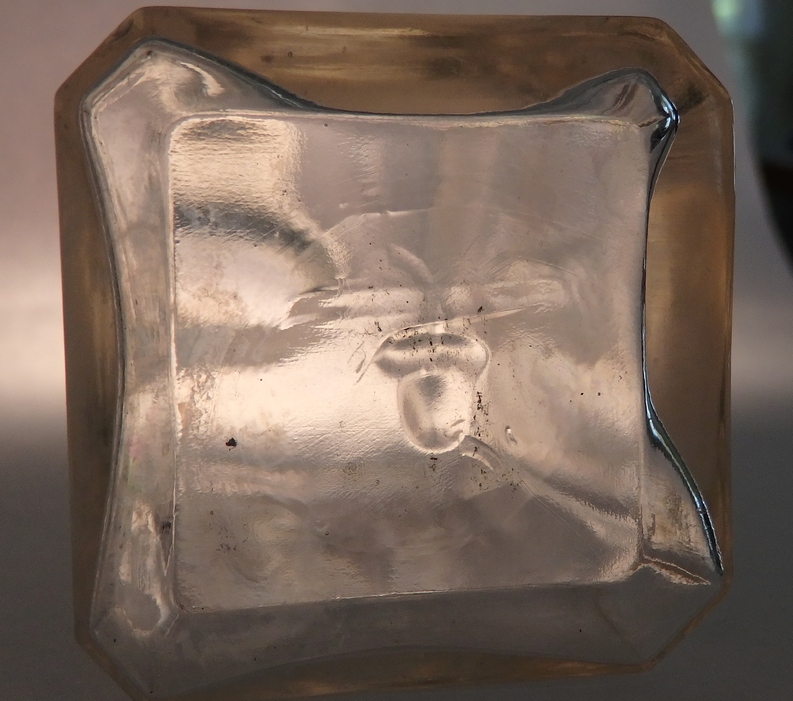

At first, the embossed acorn on the base of M. Printz #30 was overlooked as being a maker's mark. Fortunately, Whitten (2) was able to attribute the acorn logo to Bellaire Bottle Co. based on its appearance on company letterhead. Furthermore, Lockhart et al. (5) corroborated this attribution with a letter instructing a mold maker not to cut the acorn on the bottom of a mold.

Bellaire Bottle Co. incorporated in Oct 1881 and the factory was operational by Feb 1882 with a 10-pot furnace (5). The factory made prescription ware and flasks, and had two furnaces by 1886 (5). The acorn trademark was used by at least 1888 (5). From 1897, the factory operated only one furnace with 10 to 12 pots (5). The company continued to specialize in flint glass bottles and jars and later employed machines (5). The factory was idle in late 1922 with plans to remodel and produce milk bottles exclusively, but it never reopened (5).

Lockhart et al. (5) and Whitten (2) noted that the use of the logo was likely limited to the earlier years of the company, and suggested end dates of c.1890 (5) and c.1895 (2), respectively. The M. Printz bottle falls within these ranges, given it could not date any later than Apr 1891 (see company history for Eagle Drug Store).

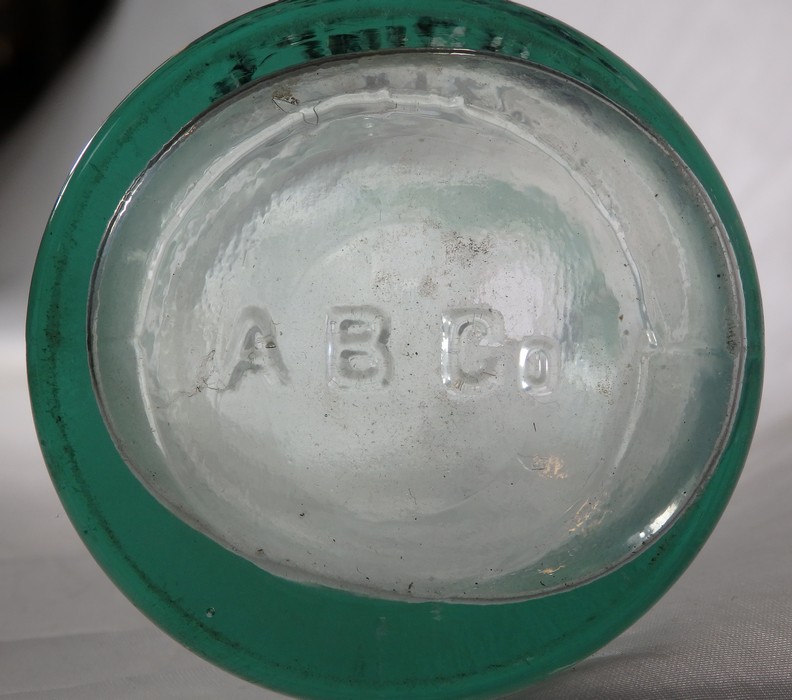

A B Co.
1905-1916
American Bottle Co.
Chicago, IL (office, 1905-1916)
Toledo, OH (office, 1916-1929)
beer #26a
example

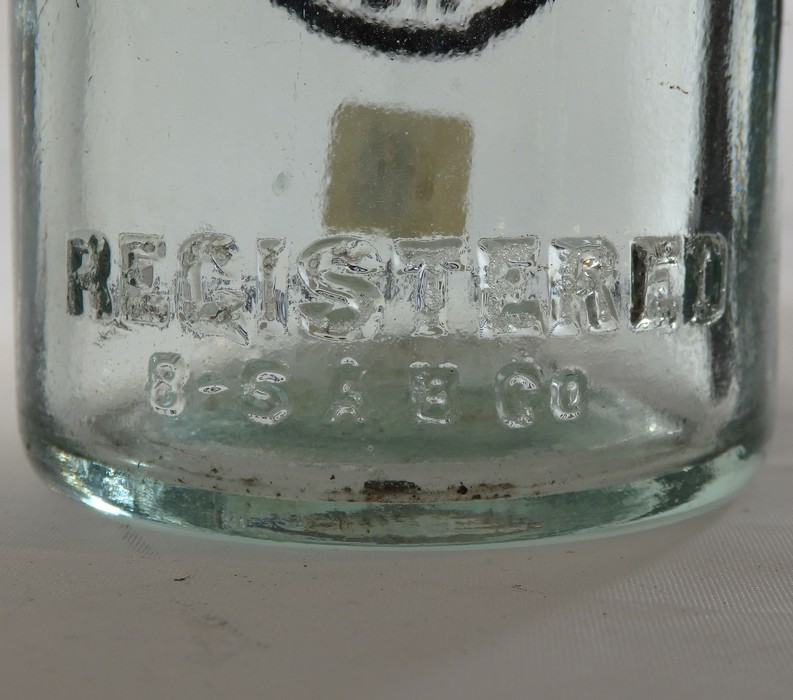

soda #64
example
beer: #22, 25a, 26a, 28, 29, 30a, 31, 53a, 54, 55, 56, 57, 75b, 76, 81, 82, 89, 91, 91c, 94, 95, 96, 99, 113, 114, 115, 117, 118, s3, s6, s61
soda: #38, 64, 65, 76, 139

Given that American Bottle Co. was a conglomeration of factories, it is no surprise that many soda and beer bottles from the Copper Country bear its mark. American Bottle Co. incorporated in Aug 1905 with the addition of Adolphus Busch Glass Manufacturing Co. (Belleville, IL and St. Louis, MO) and Streator Bottle & Glass Co. (Streator, IL) to Ohio Bottle Co. (8). American Bottle Co. maintained the exclusive license to produce beer and soda bottles with Owens machines from 1905 to 1929 (37), but Newark Machine Bottle Co. was the factory that initially made the ABMs (8). American Bottle Co. served as selling agent while its plants continued to mouth-blow bottles (8). At some point, the Newark Machine Bottle Co. dissolved and the Newark and Streator plants of American Bottle Co. started using machines (8):

  1. The Wooster plant closed in 1904 due to labor issues and never reopened.
  2. The St. Louis plant burned in Feb 1905, but was rebuilt. Busch withdrew the plant from the merger in 1907.
  3. The Belleville plant closed in 1909 due to walkouts and strikes possibly resulting from reduced production of beer bottles during local and state prohibition.
  4. The Massillon plants closed in 1913 due to flood damage.
  5. The Newark plant received its first Owens machine in 1905 and had 15 in 1907 and 27 in 1909. Lockhart et al. (8) concluded that mouth blowing was probably discontinued by 1906. Owens Bottle Machine Co. became the majority stock holder of American Bottle Co. in 1916 and took control of the operations of the Newark plant. The plant was closed in 1930 following the formation of Owens-Illinois Glass Co. in May 1929.
  6. The Streator plant converted to machines and abandoned mouth-blowing by 1914. By 1916, it had 27 machines at two plants.

American Bottle Co. dissolved when Owens Bottle Machine Co. and Illinois Glass Co. merged to form Owens-Illinois Glass Co. in 1929 (8).

Based on the dates for the A B Co. mark stated by Toulouse (1), Witten (2), and Lockhart et al. (8), it is apparent that the mark was discontinued when Owens Bottle Machine Co. took control of operations in 1916.

American Bottle Co. pioneered marking bottles to indicate plant and production date (8). The intent was so bottlers could track the life of the bottles in circulation (8). According to Lockhart et al. (8), a number indicates the year and a letter indicates the plant (B = Belleville, S = Streator, N = Newark). For example, 6-B = Belleville 1906, S-12 = Streator 1912, 0-S = Streator 1910, and 25N = Newark 1925. Since a number 5 is not known, Lockhart et al. (8) speculated that bottles may not have been produced with the A B Co. mark in 1905 during the transition period after the merger, or if they were, they were not date coded.

A closer examination of the Copper Country bottles revealed that many have a date code. For example, 8 - S on Hancock City Bottling Works #64 indicate that it was produced by the Streator plant in 1908. All Copper Country bottles with an A B Co. date code, it turns out, was made by the Streator plant. On some bottles, the date number was on distorted glass, often raised from the bottle surface, indicating that the mold was patched and re-cut for a new year. Some bottles have specimens with different date codes, indicating that different batches were ordered during different years.

Even though the A B Co. mark ended in 1916, the company did not end, nor did the use of its date code. Some Copper Country bottles have the date code, but not the maker's mark. ABM bottles exhibit the 16 S to 29 S series for 1916-1929 (8).

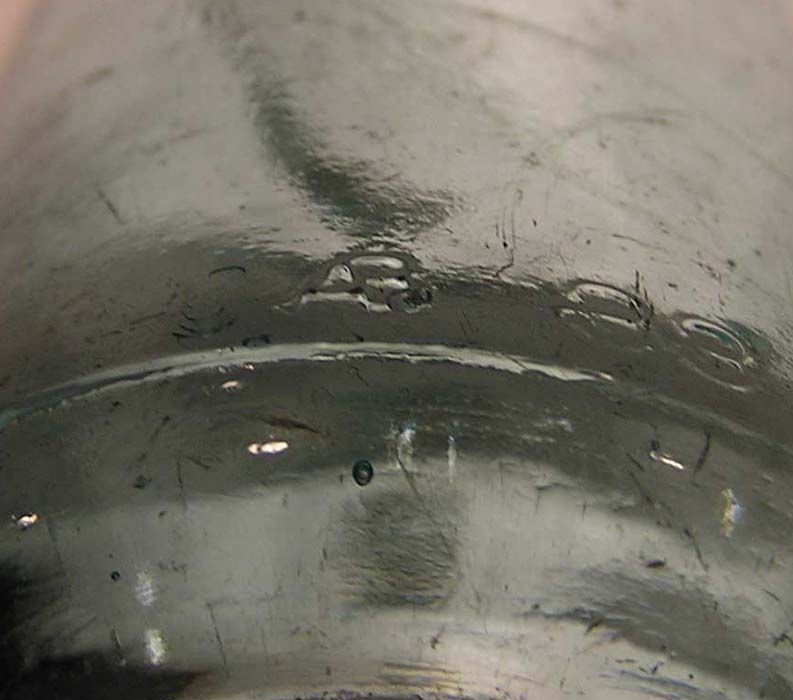

AB mark
1905-c.1909
Adolphus Busch Glass Manufacturing Co.
Belleville, IL (1892-1894, 1896-1905)
St. Louis, MO (1892-1905, c.1907-c.1926)
and/or American Bottle Co.
Belleville, IL (1905-1909)
St. Louis, MO (1905-1907)

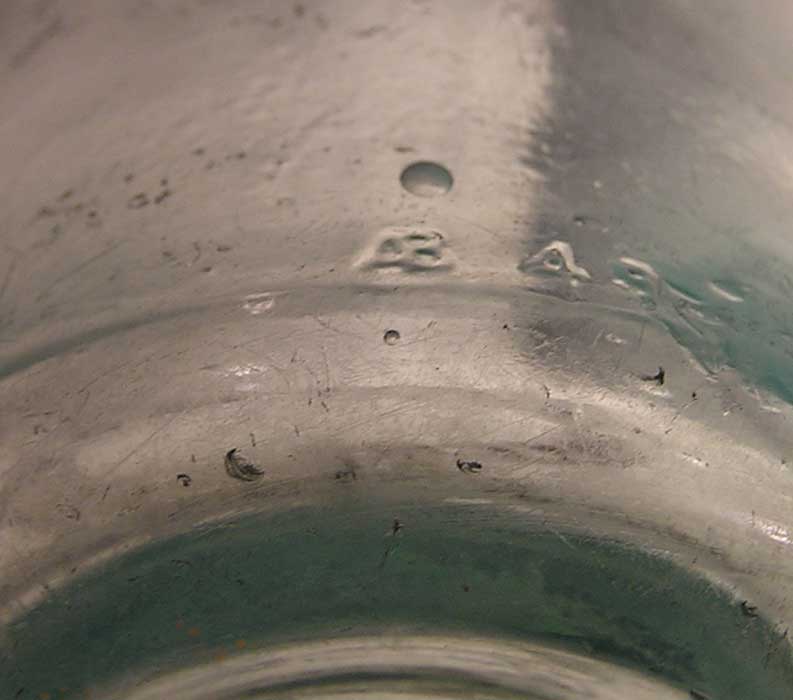

soda #61
example
soda #63
example
soda: #61, 63

The AB ligature that we find on two soda bottles from Hancock Pop Co./Louis Wolfsky was attributed to Adolphus Busch by Toulouse (1), but to American Bottle Co. by Lockhart et al. (8). These two companies shared a history.

Adolphus Busch was the son-in-law of Eberhard Anheuser and got involved with bottle production when Anheuser-Busch struggled to obtain enough bottles to meet its beer production (7). He got involved with several glass companies but also formed his own companies (7). He purchased the Belleville Glass Works in 1886 and started the Adolphus Busch Glass Co., and then incorporated the Adolphus Busch Glass Manufacturing Co. in 1892 with a plant in Belleville, IL and a plant in St. Louis, MO (7).

Lockhart et al. (7) noted that it was common in the 19th century to have one name for the factory (which usually ended in "Works") and a different name for the company that operated the factory. This practice seems prudent since a factory often changed ownership over its lifetime, and a company often operated more than one factory.

The two-year gap in dates for the Belleville plant marks a brief closure due to the 1893 depression (7). In April 1900, a fire destroyed the St. Louis plant and Busch moved it to the old Heitz Glass Works building (7). Another fire destroyed the St. Louis plant in Feb 1905 and it was rebuilt (7). Significantly, both plants were absorbed into American Glass Co. in Aug 1905, but Busch withdrew the St. Louis plant in 1907 and operated it under his name (6,7). Lockhart et al. (7) concluded that Busch converted to machines probably sometimes between 1913 and 1917. With contradictory accounts, Lockhart et al. (7) elected that the plant probably closed in c.1926.

The date range for this mark was specified as c.1904-1907 by Toulouse (1), 1905 to most likely 1909 by Whitten (2), and 1905-c.1909 by Lockhart et al. (8). These dates roughly align to when American Bottle Co. had control of Busch's plants. Furthermore, Lockhart et al. (8) observed that the known date codes accompanying the AB ligature followed American Bottle Co.'s coding and specified only the Belleville plant during 1906-1909. Because most bottles do not have date codes (8), it is unknown whether or not the St. Louis plant also used the AB ligature.

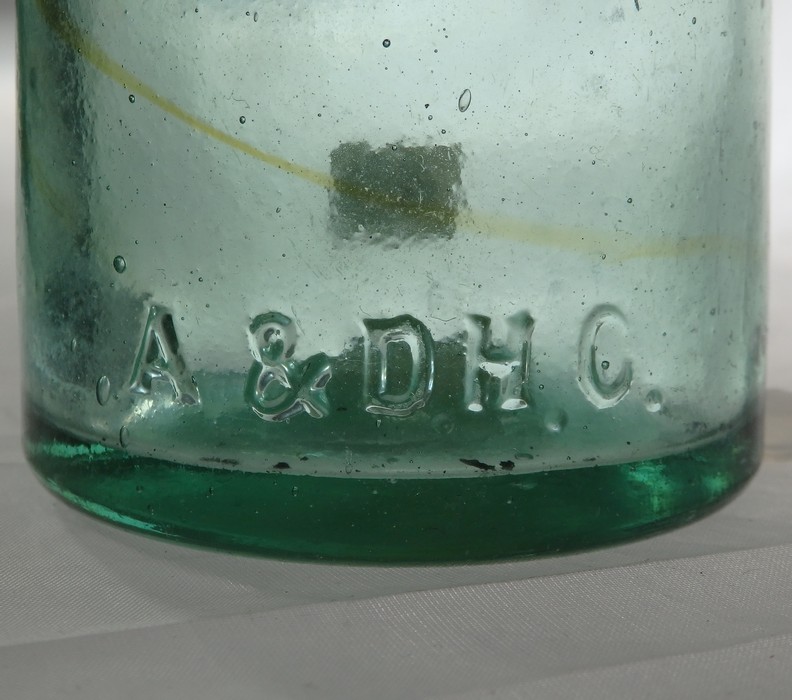

A & D H C
1860-c.1884
Alexander & David H. Chambers
Pittsburgh, PA (c.1852-1889)

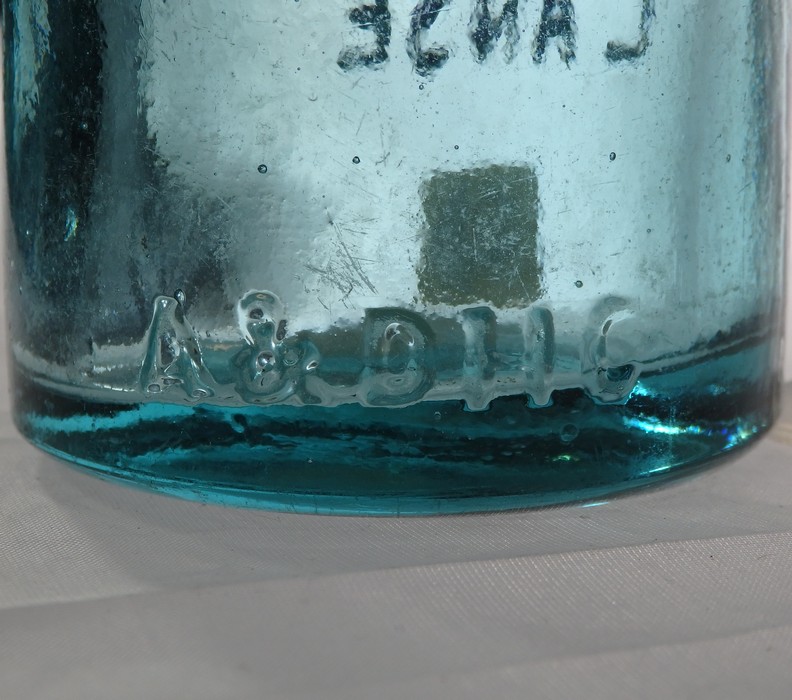

soda #4
example
soda #6
example
soda: #2, 3, 4, 6, 10, 11

A. & D. H. Chambers had been given a start date of 1843 (as by 1,2), but this date marks the start of a succession of the Chambers family companies, with A. & D. H. Chambers being a later iteration (6). A. & D. H. Chambers was established by brothers in c.1852 (6). They either operated the same plant or built a new plant on the same site as its predecessors: Anderson, Chambers & Co. and Chambers, Agnew & Co. (6). The company continued with the same name after the deaths of David Chambers in 1862 and Alexander Chambers in 1875, and was succeeded by the Chambers & McKee Glass Co. in early 1889 (6).

Although A. & D. H. Chambers also marked their beer and Hutchinson soda bottles (6), for the Copper Country, we only find their mark on squat soda bottles. As a result, collectors associate the A & D H C mark with the earliest bottles of the Copper Country.

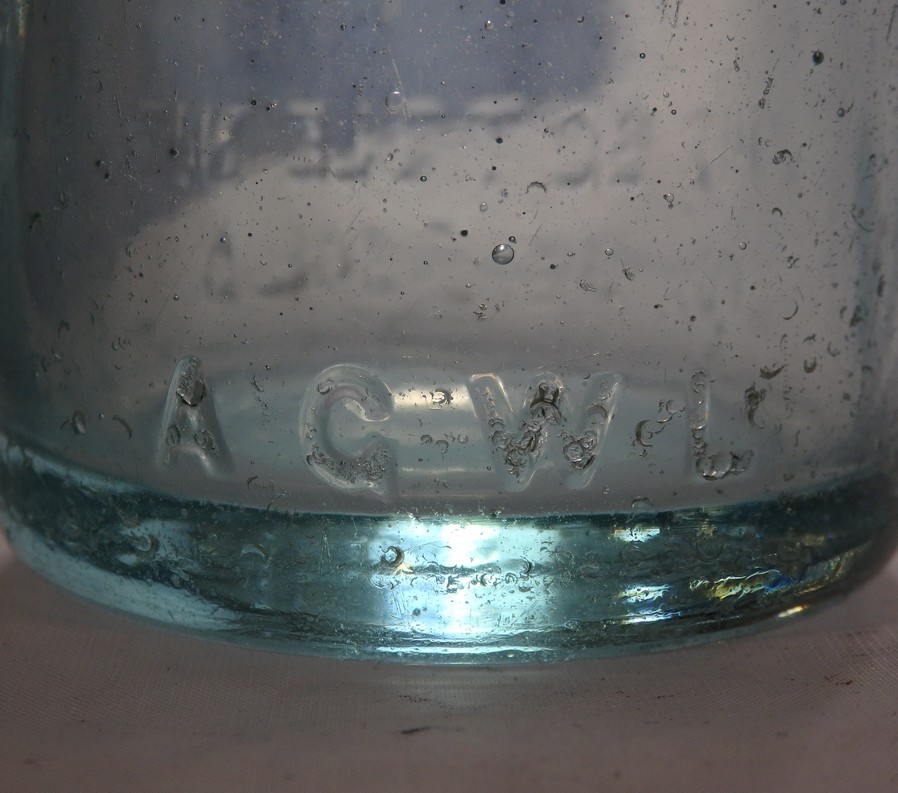

A G W L
1887-c.1892
American Glass Works Limited
Redmond Mills, PA (1887-c.1892)
soda #26
example
soda: #26

American Glass Works Limited produced beer and soda bottles for about five years, but only one bottle from the Copper Country bears its make, Matthew Northey #26. Lockhart et al. (12) corrected the account by Toulouse (1) with extensive research. American Glass Works Limited formed in Feb 1887 with a new plant in Redmond Mills, PA (12). The limited partnership ended around 1892 ("limited" was dropped from the name), and then the factory closed in c.1903 (12).

Lockhart (12) cited that the mark on Hutchinson soda bottles is only known to be found on the heel, either the front or back. The Northey bottle bears the mark on the front heel.


A. M. F. & Co.
1893-c.1911
A. M. Foster & Co.
Chicago, IL (1893-1928)

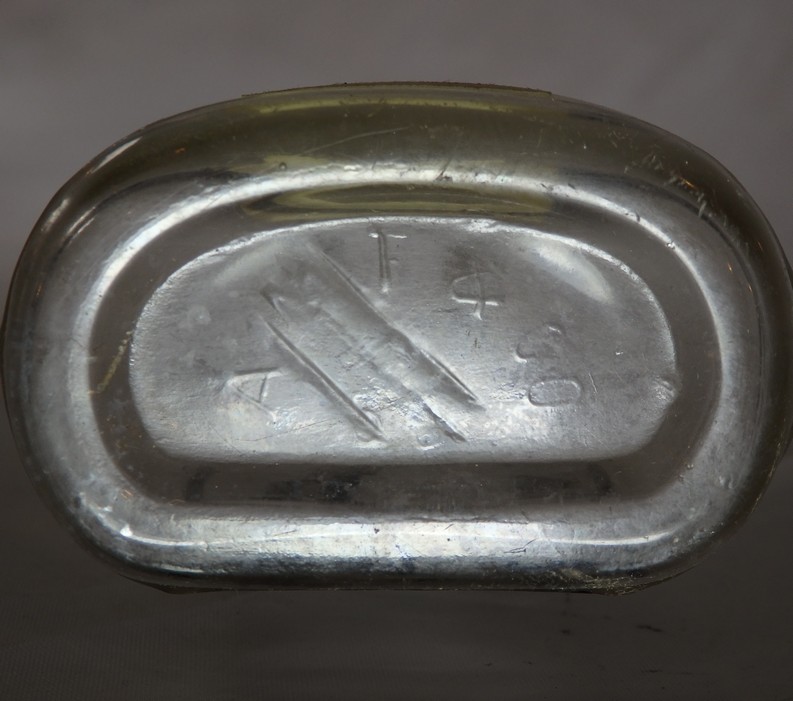

phar. #36
example

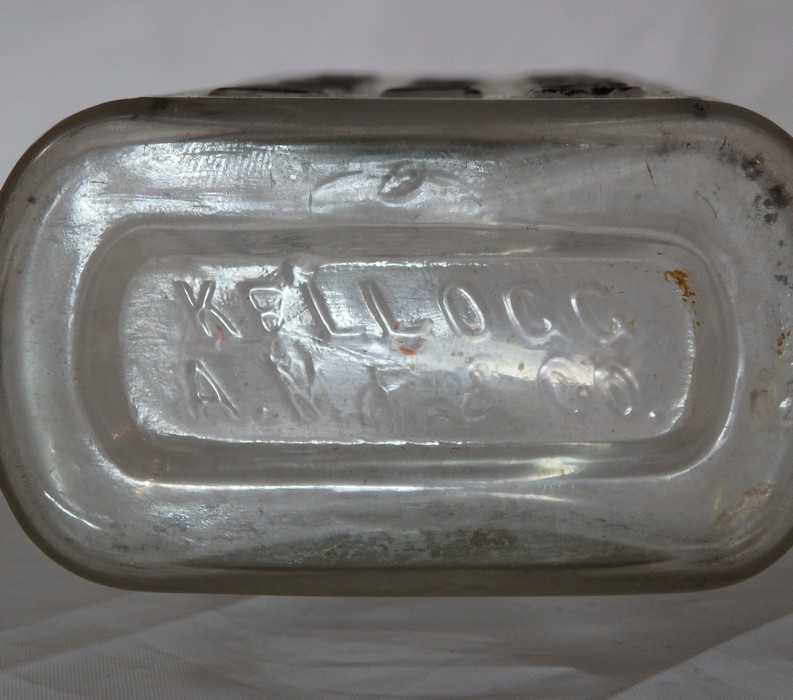

phar. #s24
example
pharmacy: #5, 9, 10, 14, 19, 21, 22, 23, 35, 36, s24, s39

Adelbert M. Foster took over Dean, Foster & Dawley, the Chicago branch of Dean, Foster & Co., in 1889 when Arther J. Dawley withdrew his interest due to ill health (28). Foster then purchased the company in 1893 and renamed it as A. M. Foster & Co. (28). Like Dean, Foster & Co., A. M. Foster & Co. was a distributor, not an actual glass manufacturer (28). The company sold bottles and jars until 1928 when an apparent merger with the Upland Flint Bottle Co. formed the Foster-Forbes Glass Co. (28).

We find three variations of this mark on Copper Country bottles: the mark by itself, the mark with KELLOGG, and the mark with KLONDIKE. Lockhart et al. (28) cited cases of the mark by itself being horizontal or arched but found no chronological distinction. They determined that bottles with the A. M. F. & Co. mark by itself were probably manufactured by Marion Flint Glass Co. in Marion, IL. KELLOGG and KLONDIKE refer to bottle shapes that were designed and produced by the company (28). Bottles marked with KELLOGG / A. M. F. & Co. were probably made by Sheldon-Foster Glass Co. in Gas City, IN and Chicago, IL (27) and more specifically date to c.1897-c.1902 (28). Bottles marked with KLONDIKE / A. M. F. & Co. were probably made by Marion Flint Glass Co. (27) and more specifically date to c.1897-c.1900. KLONDIKE was named after the Klondike gold rush that was occurring at the time (27). Its bottle shape was not patented (27).

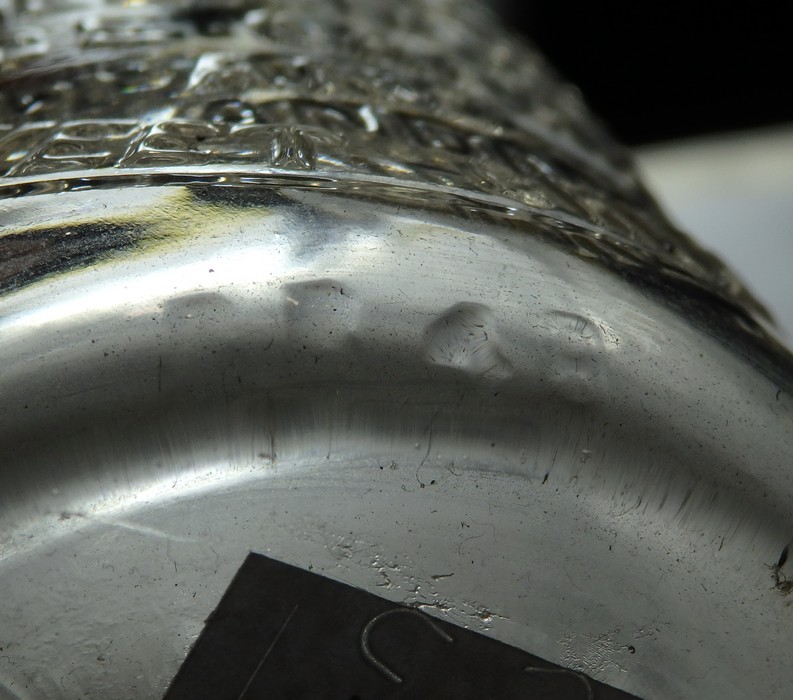

BB 48
c.1920-1930
Berney-Bond Glass Co.
Hazelhurst, PA (1904-1930)
m-112
example
milk: m-112

The BB 48 mark is found on one milk bottle from Barsotti Bros., but it also accompanies the mark from Winslow Glass Co.

In 1904, the Berney Glass Co. merged with the Bond Glass Co. and formed the Berney-Bond Glass Co. (46). Semiautomatic machines were installed at their three plants by 1917 (46). Also in 1917, management became nervous about the impending Prohibition and chose milk bottles as another product (46). They began modifying their existing Lynch machines and produced the Lynch-Budd machines, but they were not successful (46). With cooperation from outside companies, they eventually created the highly-successful Miller-Budd (MB) machine, which was colloquially called the Milk Bottle machine (46). In addition to milk bottles, they also made soda, beer, ammonia, and miscellaneous bottles (46).

In 1926, Berney-Bond signed a contract with Hartford-Empire Co. to use up to 25 of the Hartford feeders (46). In 1927, Berney-Bond purchased the Winslow Glass Co., which made carbonated beverage, liquor, and milk bottles (46). Berney-Bond, along with the Atlantic Bottle Co., was purchased by Owens-Illinois in 1930 (46). These acquisitions allowed Owens-Illinois to enter the milk-bottle market (46).

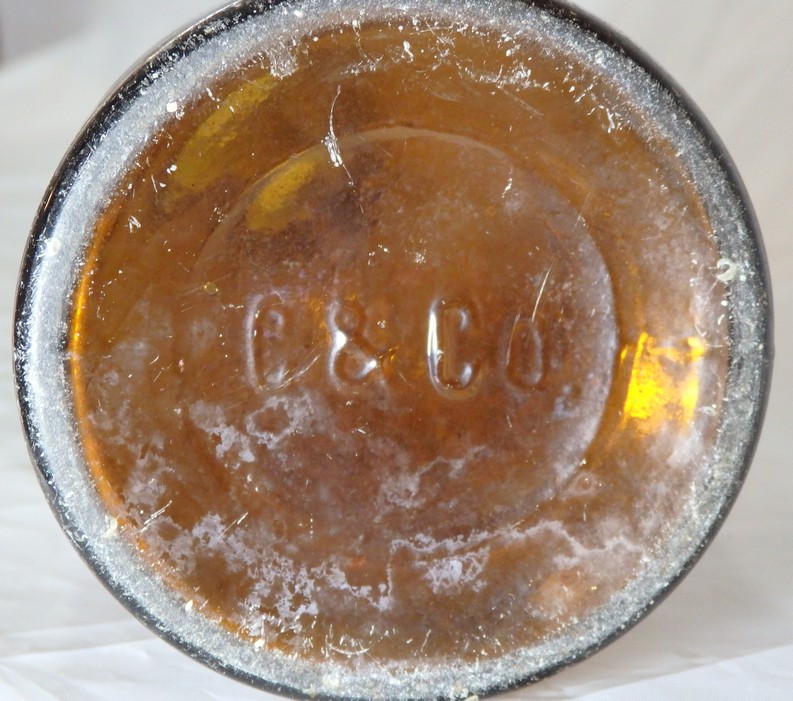

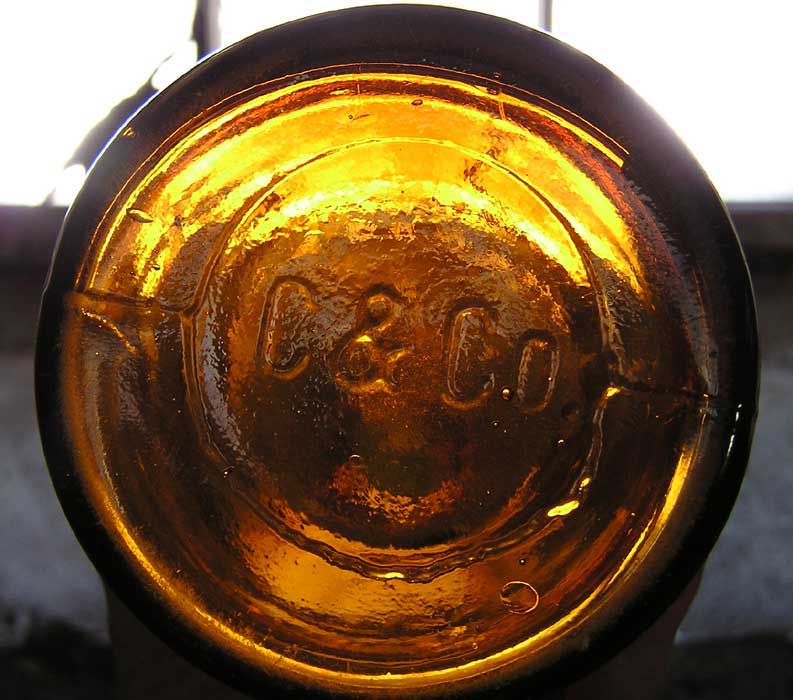

C & Co.
1878-1886
Cunningham(s) & Co.
Pittsburgh, PA (c.1878-c.1886, c.1902-1907)
beer #s2
example
beer #107
example
beer: #1a, 2, 33, 107, s2

After Cunningham and Ihmsen (1865-1878), the next two iterations of the Cunningham family glass companies were Cunningham & Co. (1878-1882) and Cunninghams & Co. (1882-1886) (13). A fire destroyed the factory in Apr 1879 and it was rebuilt (13). The company changed names again, and so did its mark, when it became a limited partnership in 1886 (13).

Torch Lake Brewery has two bottles with the C & I mark (#1 and #s1) and three with the C & Co. mark (#1a, #2, and #s2), all with the same plate (but different molds). Since we assume a particular plate was used until it wore out before a new plate was purchased, we conclude that the C & Co. bottles date to the onset of Cunningham & Co. (1878-1882).

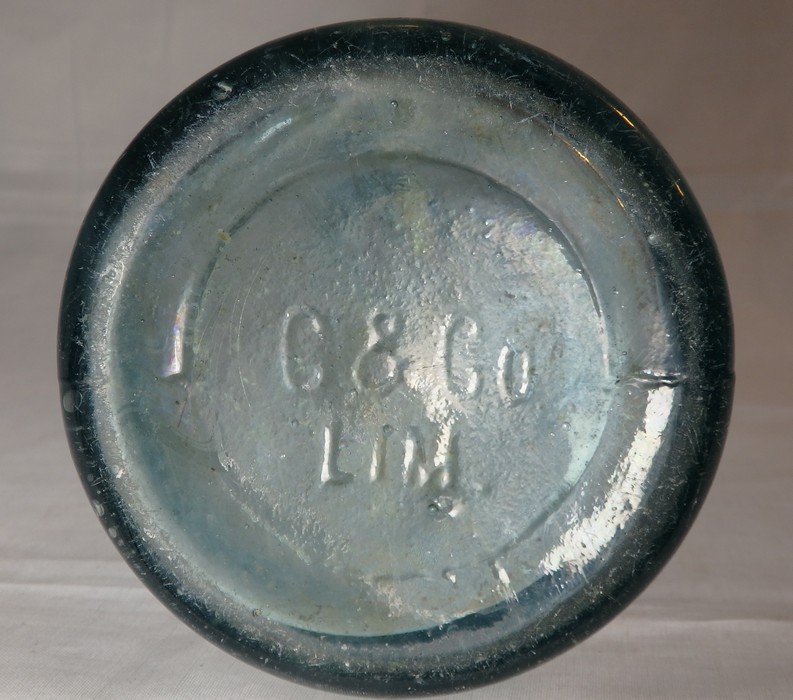

C & Co. LIM.
1886-c.1902
Cunningham(s) & Co., Limited
Pittsburgh, PA (c.1886-c.1902)
soda #91
example

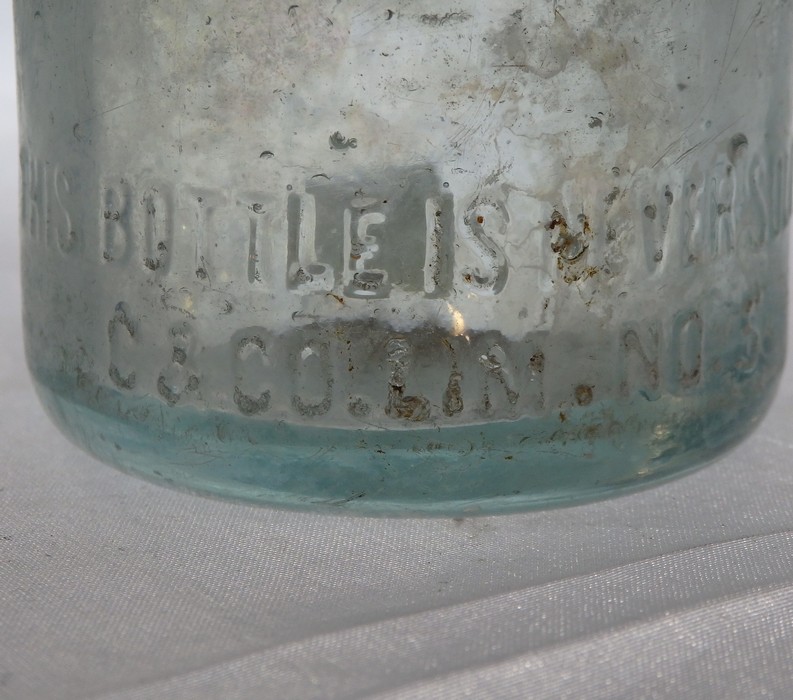

soda #92
example
beer: #107a
soda: #91, 92

The next iteration of the Cunningham family companies started after the death of Wilson Cunningham in 1885 (13). Dominick Cunningham inherited two window glass plants while his uncle, Robert Cunningham, retained the bottle factory (13). They formed a limited partnership in 1886, but Robert withdrew later that year leaving Dominick in charge of the company (13). Meanwhile, Dominick was also running his other company and plant. One factory burned down in 1895 and was rebuilt (13). The limited partnership ended in c.1902 for unknown reasons and the company name reverted back to Cunninghams & Co. (13).

Only three bottles from the Copper Country bear this maker's mark: a Knivel beer bottle and two bottles from Upper Peninsula Bottling Works (C.J. Sorsen). Knivel #107 bears the mark of C & Co. while its variant bears the mark of C & Co. LIM. Since these bottles used the same plate, they are estimated to date to the transition from Cunninghams & Co. to Cunninghams & Co. Limited. However, Lockhart et al. (13) noted that evidence strongly suggests that the C & Co. mark was used until c.1892 (at least on some bottles) before LIM was added, likely because the older molds continued to be used until they wore out. This opens the possibility that the Knivel bottles date to later than 1886.

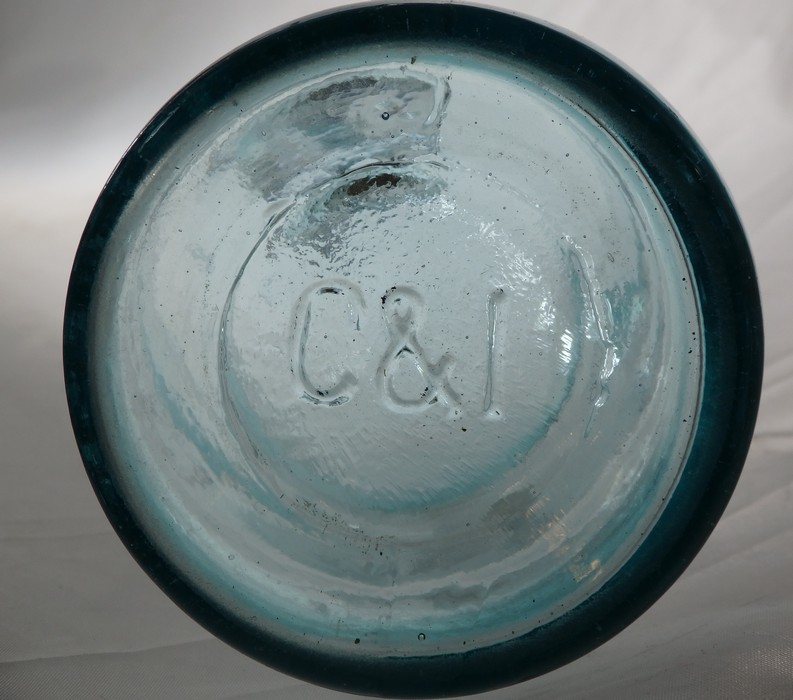

C & I
1865-1878
Cunninghams & Ihmsen
Pittsburgh, PA (1865-1878)

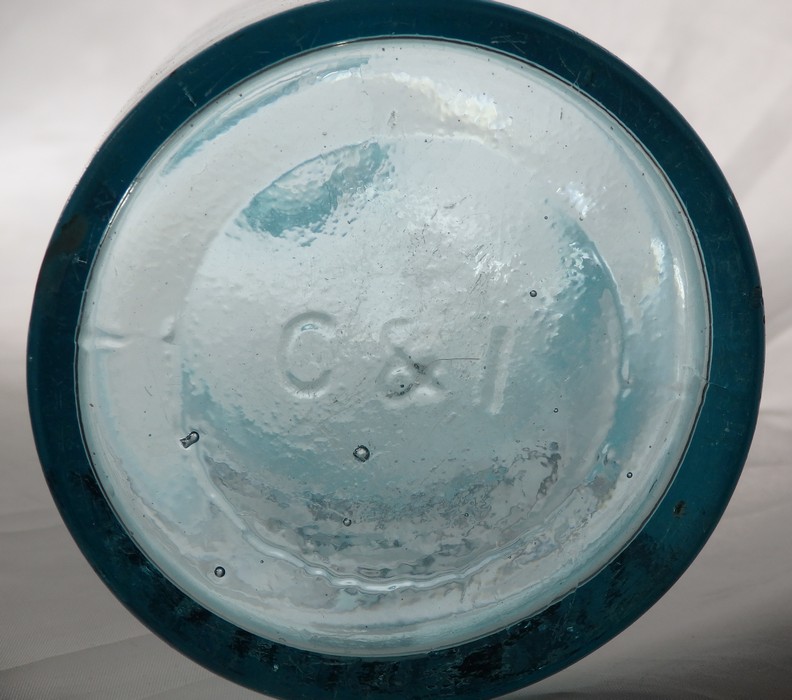

beer #s1
example
beer #1
example
beer: #1, s1

Only two Copper Country bottles were marked by Cunninghams and Ihmsen. These were from Torch Lake Brewery and they are probably the earliest beer bottles of the Copper Country, as suggested by this maker's mark.

Cunninghams and Ihmsen was one iteration in a long history of Cunningham family glass companies that started in c.1845 (13). Their factory was called Pittsburgh City Glass Works (13). Cunninghams and Ihmsen started when Dominick Cunningham, the son of Wilson Cunningham who ran the original company, purchased George Duncan's shares, arguably in 1865 (13). It ended when Dominick Cunningham purchased Dominick Ihmsen's shares no later than July 1878, and the name was changed to Cunningham & Co. (13).

Paralleling the change in glass company name, we see a change in maker's mark from C & I to C & Co. on Torch Lake bottles with the same plate. Thus, the C & I bottles most likely date just prior to, or during, the transition period in 1878.

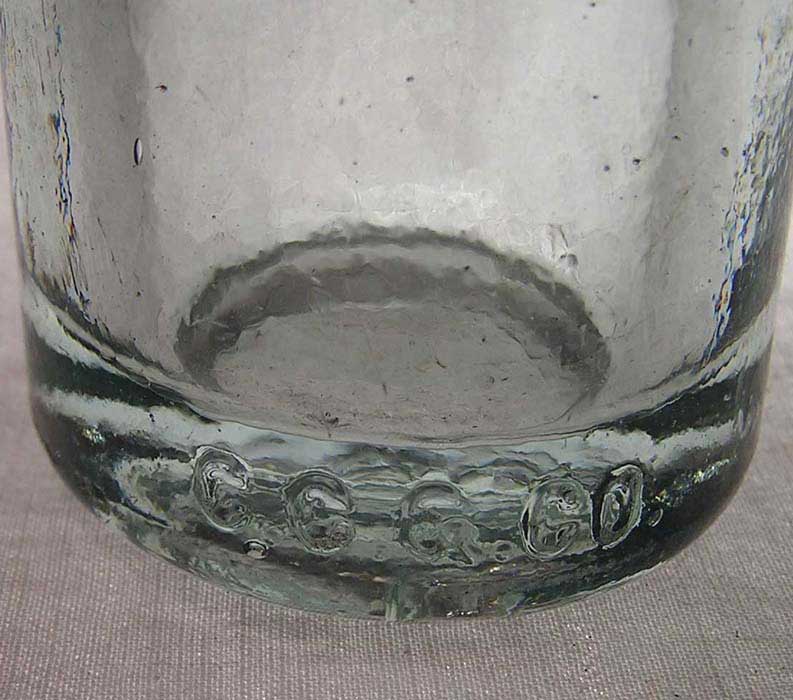

C C G Co.
1888-1894
Cream City Glass Co.
Milwaukee, WI (1888-1894)
beer #9
example
soda #104
example
beer: #9, 9a
soda: #73, 104, 104a

Cream City Glass Co. was incorporated in Aug 1888 with new partners, resurrecting the former Wisconsin Glass Co. factory after it had been idle for two years (16). Lockhart et al. (16) questioned whether both plants were reopened or just No.2, but based on the marks, they reasoned for both. The company filed for bankruptcy in 1893, with the 1893 depression being the cause (16). Other sources (2,3) state a close date of 1894.

Only two beer bottles (from Torch Lake Brewery) and two soda bottles (from Lake Linden Bottling Works and Chas. Klein Bottling Works) from the Copper Country were marked by Cream City Glass Co. The beer bottles bear the mark on the base while the soda bottles bear the mark on the heel.

It turns out that another glass factory, Colorado City Glass Co., used the same mark and operated roughly during the same time period. Schriever et al. (17) specified how to distinguish between the two marks; for us, the easiest being their conclusion that only Cream City Glass Co. supplied Michigan.

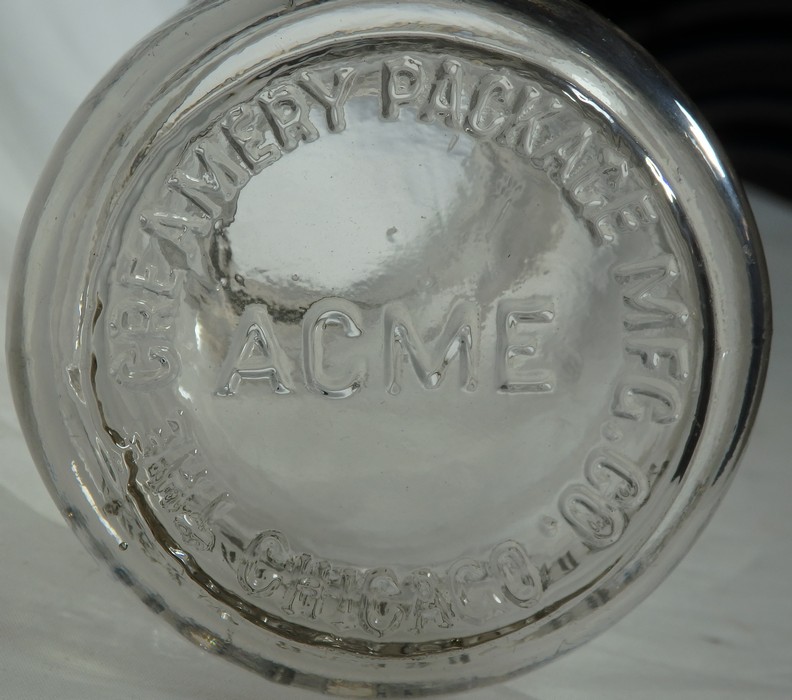

CREAMERY PACKAGE MFG. CO. CHICAGO
c.1903-1916
Creamery Package Mfg. Co.
Chicago, IL (1887-1960)

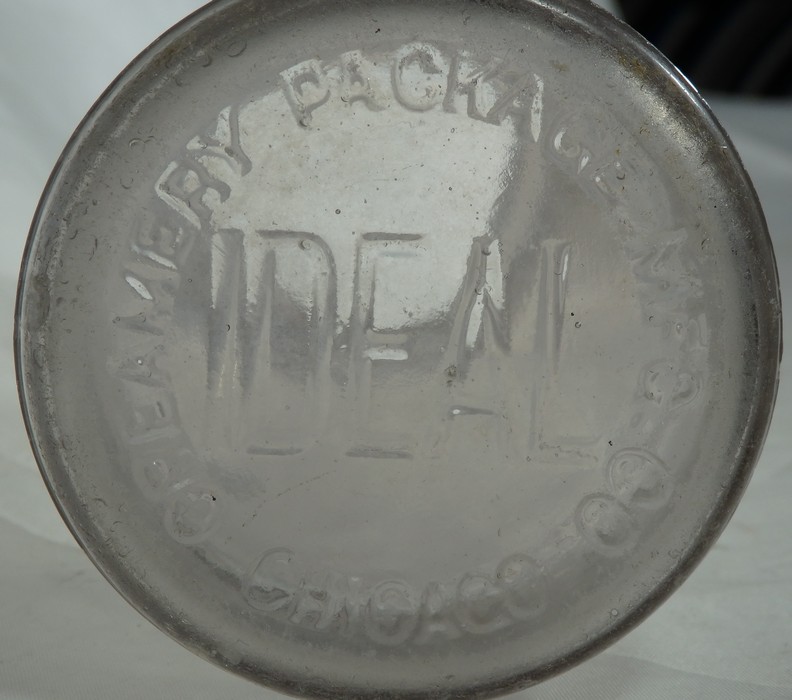

m-59a
example
m-60
example
milk: m-59, m-59a, m-60

Two mouth-blown J. O. Bruneau milk bottles have bases bearing, CREAMERY PACKAGE MFG. CO. CHICAGO. This company was distributor of dairy products, not a glass manufacturer (44).

Charles M. Gates started the Creamery Package Co. in Chicago in 1882 and incorporated the company in 1883 (44). The firm reorganized as the Creamery Package Mfg. Co. in 1887 and expanded with factories in Minnesota, Illinois, Indiana, and Michigan (44). Lockhart et al. (44) suspected that Thatcher Mfg. Co. may have made the bottles in the early years. Certainly, bottles were made by Winslow Glass Co. by 1923 and by Owen-Illinois by at least 1935 (44). In 1960, the St. Regis Paper Co. acquired the company (44).

Lockhart et al. (44) noted that this mark is usually accompanied by a model name, as found on the Copper Country examples. They dated the IDEAL mark to c.1903-c.1916, with the large letter variant probably being the oldest; and the ACME mark to c.1904-1916.


CLYDE GLASS WORKS CLYDE N.Y.
1895-c.1910
Clyde Glass Works
Clyde, N.Y. (1895-1915)

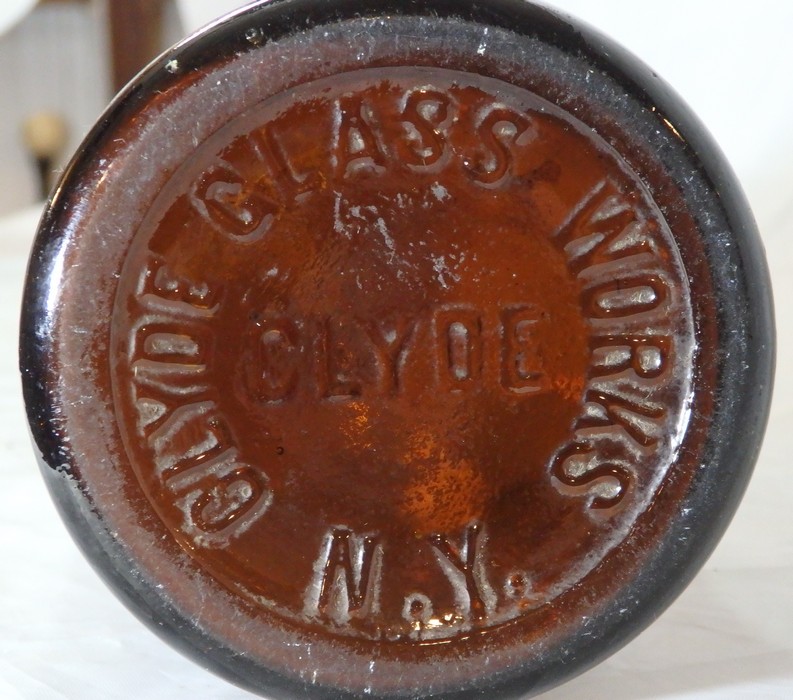

beer #12
example

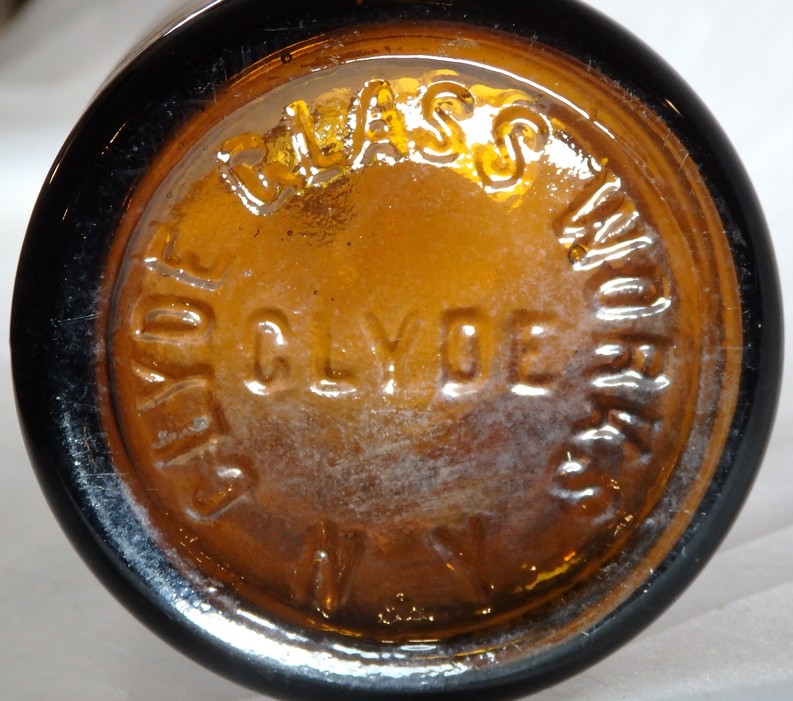

beer #110
example
beer: #10, 10a, 11, 12, 12a, 12b, 48, 69, 110, 111

Ely Sons & Hoyt was incorporated as Clyde Glass Works in 1895 (20). They ceased window glass production and focused on producing amber bottles (20). They added semiautomatic machines by 1913, but ceased operations in July 1915 (20).

Lockhart et al. (20) limited the date range of the CLYDE GLASS WORKS mark to c.1910 based on examples being mouth-blown. We have a number of bottles from the Copper Country bearing the Clyde mark, all amber beer bottles with Baltimore loop seal tops, either applied or tooled.


C V G Co MILW.
1880
Chase Valley Glass Co.
Milwaukee, WI (1880)

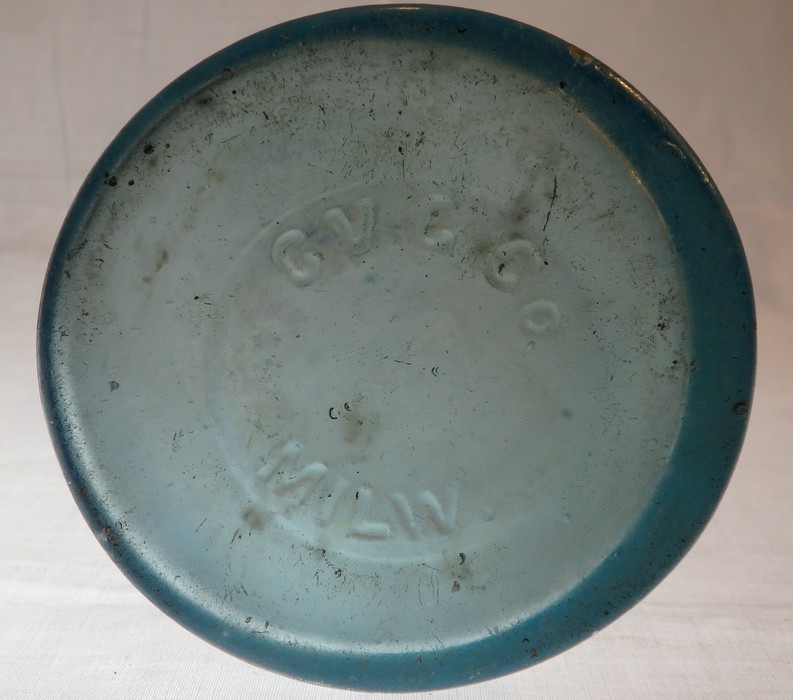

soda #88
example
soda: #88, s78

Chase Valley Glass Co. was short-lived, but it was the start of a long history of glass making in Milwaukee, WI. Retired Dr. Enoch Chase started experimenting with glass making in 1879 with sand found near Milwaukee Harbor (14). Lockhart et al. (14) cited that he began work on a glass plant on his farm in Mar 1880 and it was nearly completed in May. It consisted of two furnaces located in separate buildings (14). In Jul 1880, a recruiter returned from a trip to the East with experienced glass blowers (14). The larger furnace was split off to form a corporation (Chase Valley Glass Co. No. 2) before it started operations in Sep (2). Thus, the smaller furnace (No. 1) must have been operating to produce the bottles with this maker's mark, since the splitting of the operation presumably ended the era of the C V G Co. mark (14).

The Copper Country has two bottles with the C V G Co. mark: N. & J. Bottling Works #88 and J. James Bottling Works #s78. Since Jos. James & Co. succeeded Northey Bros. & James, molds with the C V G Co. mark apparently were used after 1880.

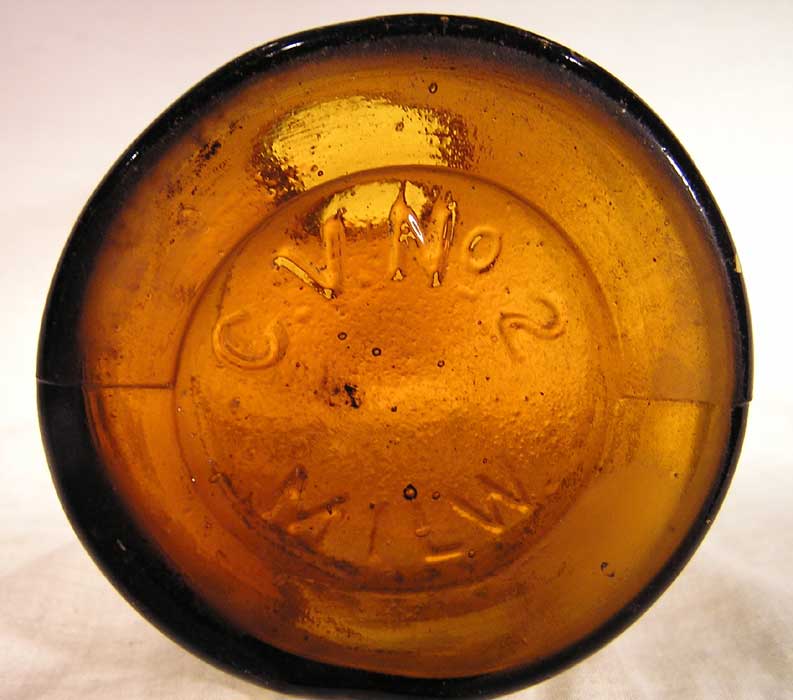

C. V. No2 MILW
1880-1881
Chase Valley Glass Co. No. 2
Milwaukee, WI (1880-1881)

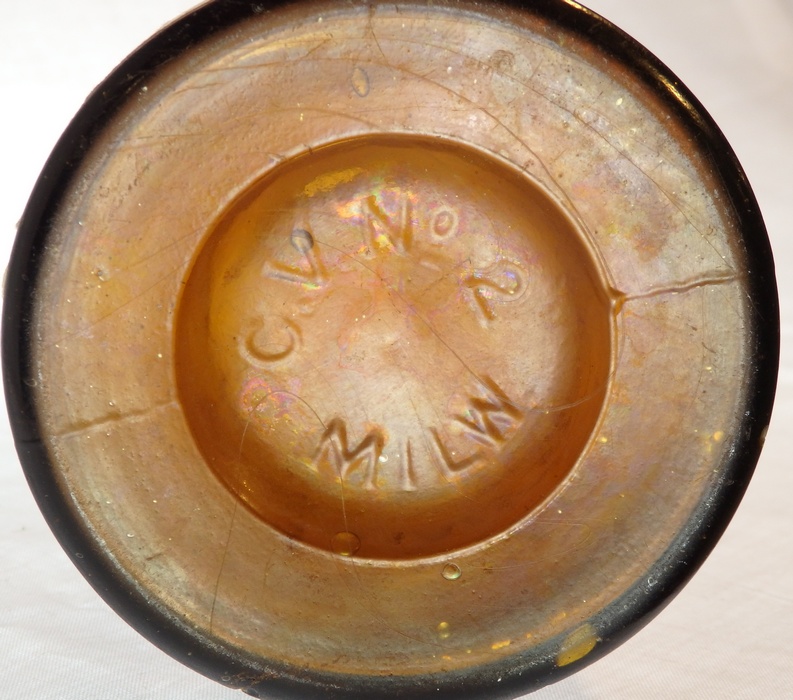

beer #104
example
beer #101
example
beer: #32, 101, 102, 104, 105, 119, 120

Dr. Enoch Chase formed a corporation in Jul 1880 to operate his larger plant, Chase Valley Glass Co. No. 2, while he retained full ownership of the smaller plant, Chase Valley Glass Co. No. 1 (14). Lockhart et al. (14) cited that the sand for No. 2 came from the east shore of Lake Michigan. No. 2 operated for 12 months before Chase merged it with No. 1 to formed the Wisconsin Glass Co. in Aug 1881 (1,14). For unknown reasons, Dr. Chase sold ownership of No. 1 and his interest in No. 2 after just one season of operation (15).

Some of the earliest and rarest beer bottles of the Copper Country are graced with the C V No. 2 mark, which should date them quite precisely to 1880-1881. However, it appears the molds with the C V No. 2 mark were used until they wore out, and thus, some bottles were made after 1881.


DEAN FOSTER & CO.
1874-c.1911
Dean, Foster & Co.
Boston, MA (1874-c.1911)
phar. #17
example
pharmacy: #17

Lockhart et al. (27) cited conflicting reports of when Dean, Foster & Co. started but concluded that it was most likely in 1874. Started by George Foster, Charles L. Dean, and Albert G. Smalley, the company was a glassware wholesaler not a glass maker (27). Lockhart et al. (27) lists the companies that supplied Dean, Foster & Co. (and also A. M. Foster & Co.), but noted that the pharmacy bottles bearing their marks appear to have been produced by the glass factories under their control: Marion Flint Glass Co. in Marion, IL and Sheldon-Foster Glass Co. in Gas City, IN and Chicago, IL. Lockhart et al. (27) reasoned the company likely closed in c.1911 when Foster bought the Upland Flint Bottle Co.

We find this mark with the full name of the company on only one bottle, the nursing bottle from Sodergren & Sodergren. Whitten (2) noted that this mark is found on a nursing bottle, and Lockhart et al. (27) also pictured a nursing bottle. Other bottles from this company used the D. F. & Co. mark.


D. F. & Co.
(no rays)
c.1890-c.1901

Dean, Foster & Co.
Boston, MA (1874-c.1911)

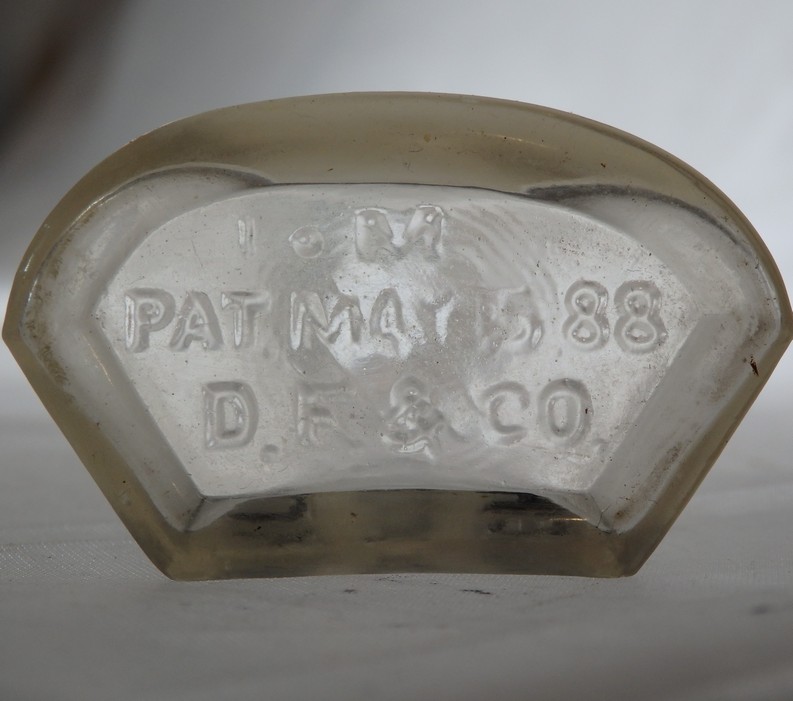

phar. #8
example

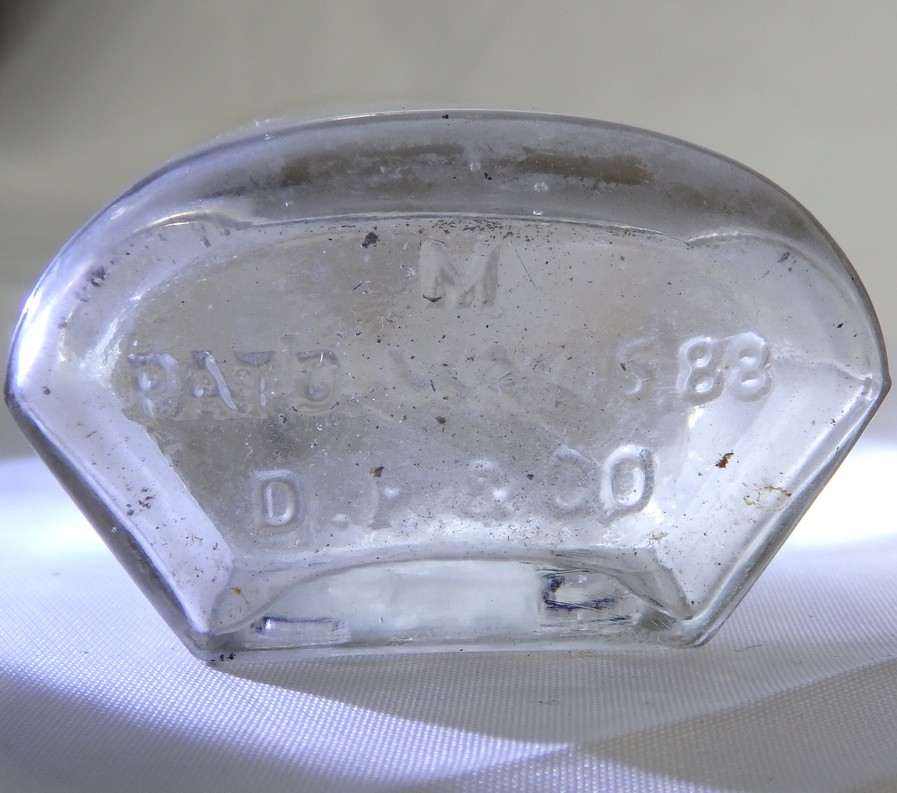

phar. #33
example
pharmacy: #8, 33

Lockhart et al. (27) noted that the D. F. & Co. mark with no rays is only found on the Chicago Oval pharmacy bottle, and that is where we find it on our Copper Country bottles. This mark and the D. F. & D. mark occur with the patent date and sometimes an M, which Lockhart et al. (27) attributed with Marion Flint Glass Co. in Marion, IL, whom probably manufactured the bottles.

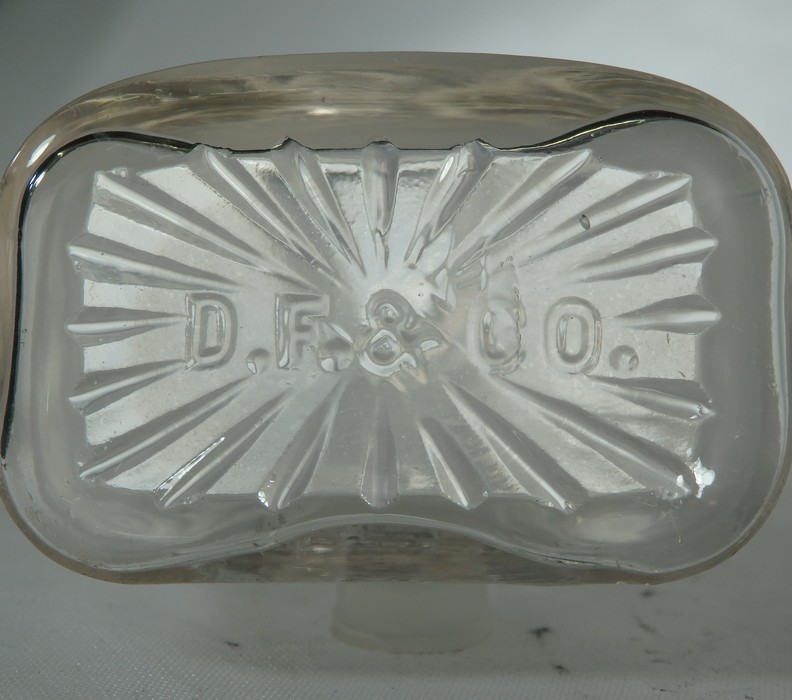

D. F. & Co.
(w/ rays)
c.1894-c.1911

Dean, Foster & Co.
Boston, MA (1874-c.1911)
phar. #3
example
pharmacy: #3

Lockhart et al. (27) noted that the mark in the center of rays or a sunburst probably date from the inception of the Sheldon-Foster factory, which probably manufactured the bottles, to the end of the company. The bottle style always accompanying the sunburst mark is called the Eastlake Oval (27). We find this mark and bottle style on only one bottle, Fred W. Kroll Druggist #3.

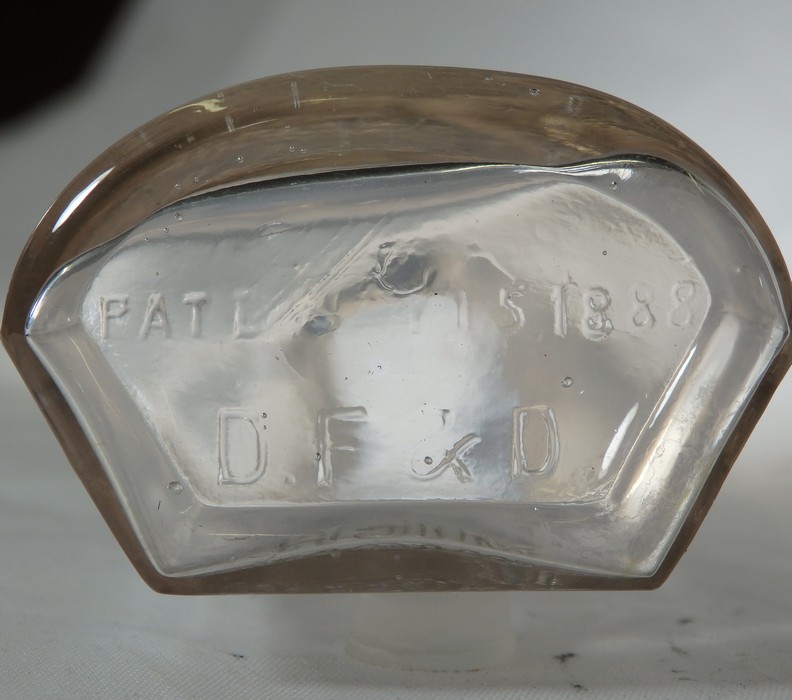

D. F. & D.
c.1888-1893
Dean, Foster & Dawley
Chicago, IL (1883-1893)
phar. #4
example

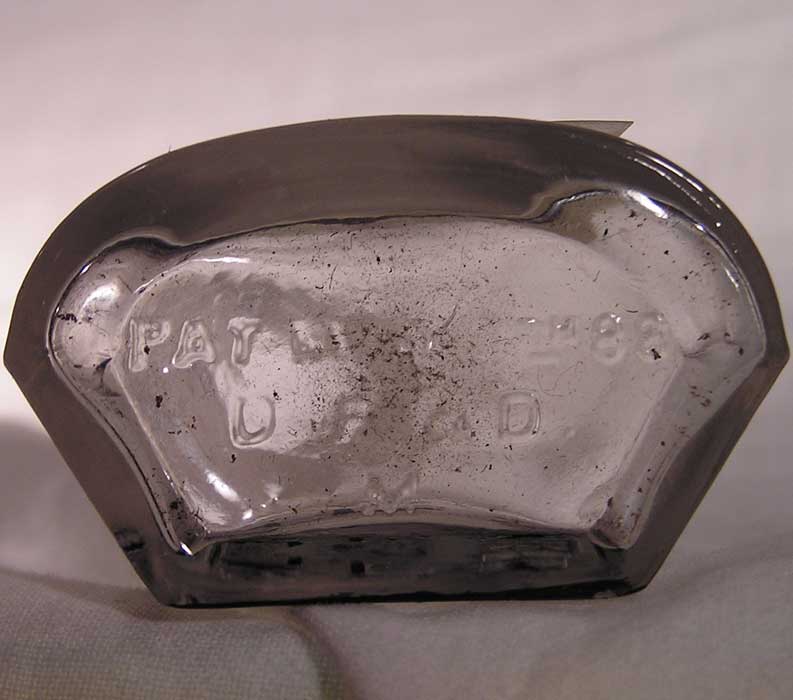

phar. #33
example
pharmacy: #4, 33, s84

Arthur J. Dawley joined Dean, Foster & Co. in 1876 and opened a branch (again as a wholesaler) in Chicago, IL under the name of Dean, Foster & Dawley (27). Dawley withdrew in 1889 due to ill health and Adelbert M. Foster took control of the company (28). Lockhart et al. (27) noted that the company either reverted back to the Dean, Foster & Co. name or continued using the Dean, Foster & Dawley name until Adelbert M. Foster purchased it in Oct 1893 and renamed it as A. M. Foster & Co.

We find this mark, accompanied with the patent date, on the Chicago Oval pharmacy bottle, which, according to Lockhart et al. (27), was patented by Adelbert M. Foster. Reports cited in Lockhart et al. (27) confirm that our bottles follow the known occurrence of the mark; that is, apparently only on the Chicago Oval bottle. Lockhart et al. (27) suspected that the M often accompanying the mark refers to the Marion Flint Glass Co. in Marion, IL, whom probably manufactured the bottles.

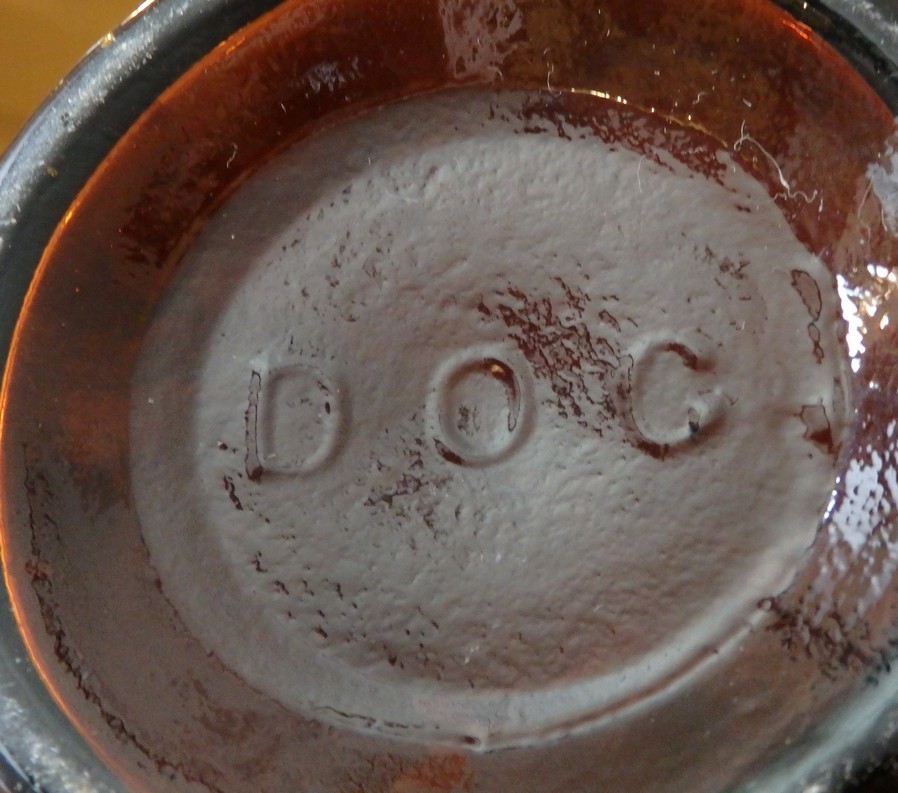

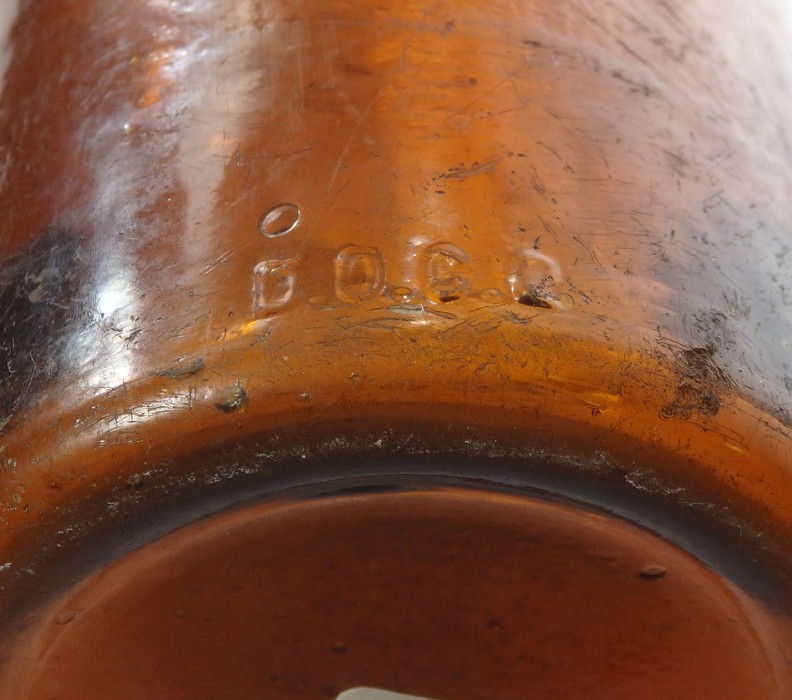

D O C
1880-1931
D. O. Cunningham (& Co.)
Pittsburgh, PA (1880-1897)
D. O. Cunningham Glass Co.
Pittsburgh, PA (1897-1958)
beer #35
example
beer #36
example
beer: #35, 36, 37, 38, 44

We have a few Copper Country bottles bearing the D O C (or D.O.C.) mark, all from Union Brewery / Phil. Scheuermann Brewing Co. This glass maker was the last chapter of the Cunningham family companies.

Dominick Cunningham left Cunningham & Co. to start his own company and plant (Jane Street Bottle Works) in 1880 (13). The bottle factory burned in Feb 1886 and was rebuilt (13). The company was incorporated as the D. O. Cunningham Glass Co. in Nov 1897 (13). Meanwhile, Dominick also took over his family's company after his father died and his uncle Robert Cunningham withdrew his interests (13). Dominick eventually merged Cunninghams & Co. with D. O. Cunningham Glass Co. in 1907 (13). Dominick died in Mar 1911 and his son, Howard V. Cunningham became the president of the corporation, which ceased glass production in 1931, but remained in business until 1958 (13).

Despite the wide date range for this mark, Lockhart et al. (13) observes that few beer bottles appear to have been made during the earlier years of the company. They also note that the company ceased beer bottle production at some point, probably during Prohibition. They could not determine when D. O. Cunningham transitioned to machines, but cited that the company added more machines in 1917. Although our local sample is small, we also observe this pattern with one bottle (#35) marking the end of the lightning-stopper top era and the rest fashioning Baltimore loop seal tops.


D. S. G Co.
c.1879-c.1883
DeSteiger Glass Co.
La Salle, IL (1878-c.1889)

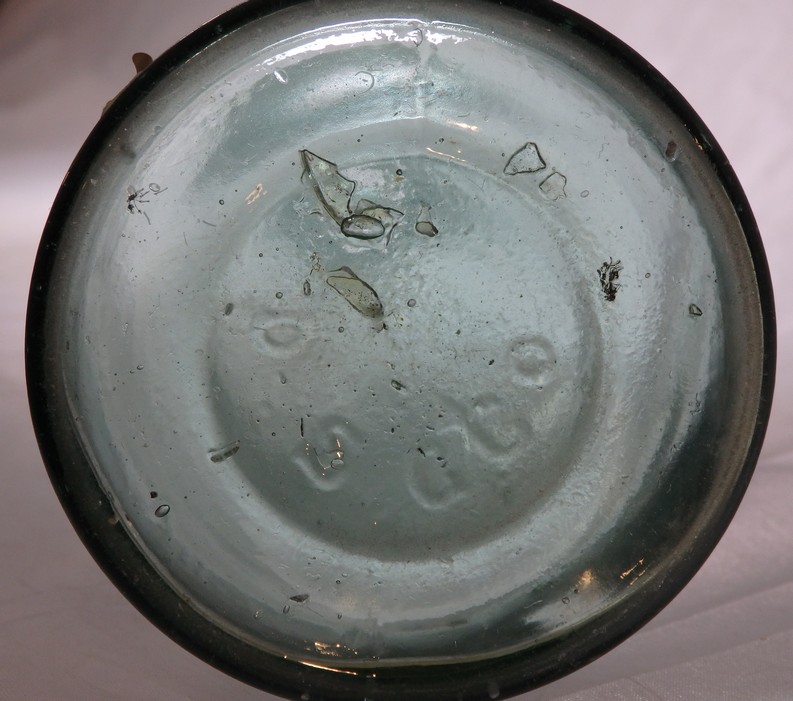

beer #100
example

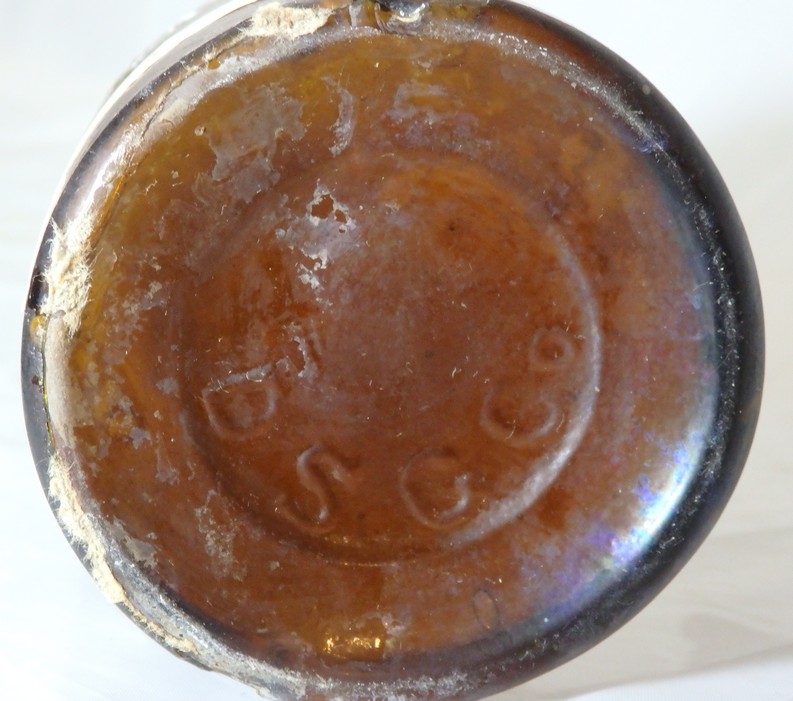

beer #s4
example
beer: #60, s4, 100

Only four Copper Country bottles bear the D. S. G Co. mark (in an inverted arch on the base), and they are all lightning-stoppered beer bottles. They were produced during a brief glass operation run by the DeSteiger family.

The DeSteiger family moved to LaSalle in fall of 1878, formed the DeSteiger Glass Co., and built a bottle plant (21). They also purchased the Pheonix Glass Co., which started in 1867 and manufactured window glass (21). A fire destroyed the plant in 1881 but it was rebuilt (21). The company became a corporation by at least Sep 1882, but it went bankrupt and the property was sold in April 1883 to the First National Bank of Peru (21). Lockhart et al. (21) hypothesized that use of the D. S. G Co. mark ended with the loss of the family business. The plant continued to operate, however, with DeSteigers involved, but beer bottle production apparently ended. A fire destroyed the plant in Nov 1883 and many of the workers moved to the Streator Bottle & Glass Co. (21). Rebuilding started in Feb 1884 and Albert A. Paddon purchased the plant in 1884, but the plant continued to be listed under the DeSteiger & Co. name until 1889 (21). Lockhart et al. (21) reasoned that the plant closed in c.1893.

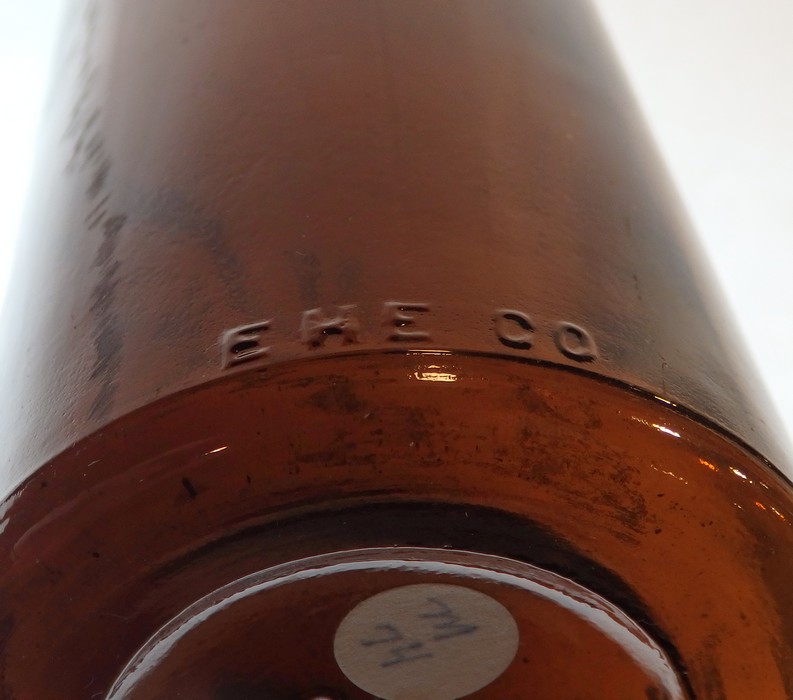

E H E Co.
1885-1904
Edward H. Everett Glass Co.
Newark, OH (1885-1904)
beer #74
example

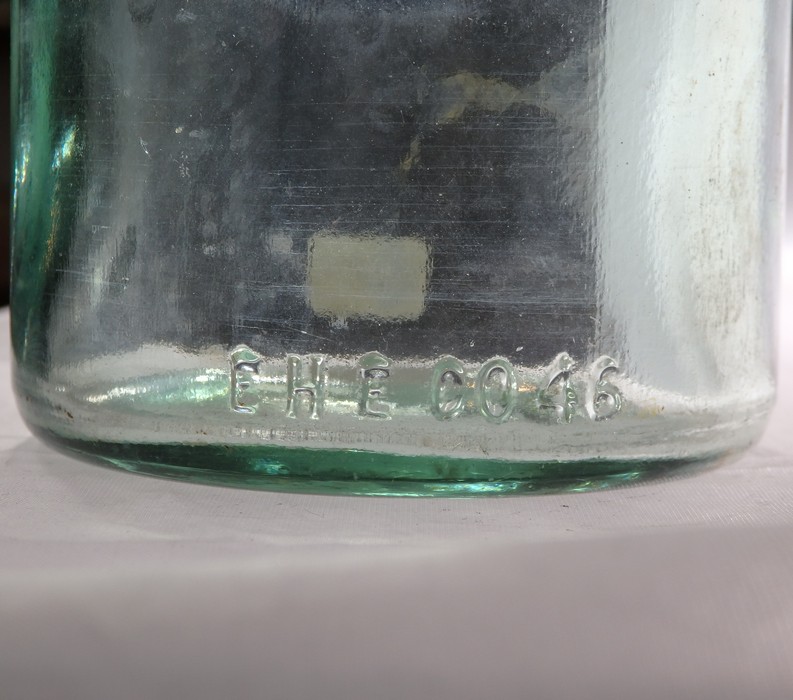

soda #18
example
beer: #73, 73a, 74, 75c, 76, s5
soda: #18, 93, 94, s81

Edward H. Everett Glass Co. was the third iteration of a succession line, and we find its mark on several soda and beer bottles. Although the mark could date from 1885, the Copper Country examples are later bottles.

Shields, King & Co. was established in 1871 (10). Everett purchased their factory, the Newark Star Glass Works, in Aug 1880, which at the time had been idle for two years due to a worker's strike (10). In Dec 1885, Everett established the Edward H. Everett Glass Co. as a corporation and sold the factory to it (10). A fire completely destroyed the factory in May 1893 and it was rebuilt by Dec 1893 (10). This iteration ended when the plant was sold to Ohio Bottle Co. in Oct 1904, which was another corporation spearheaded by Everett (10).

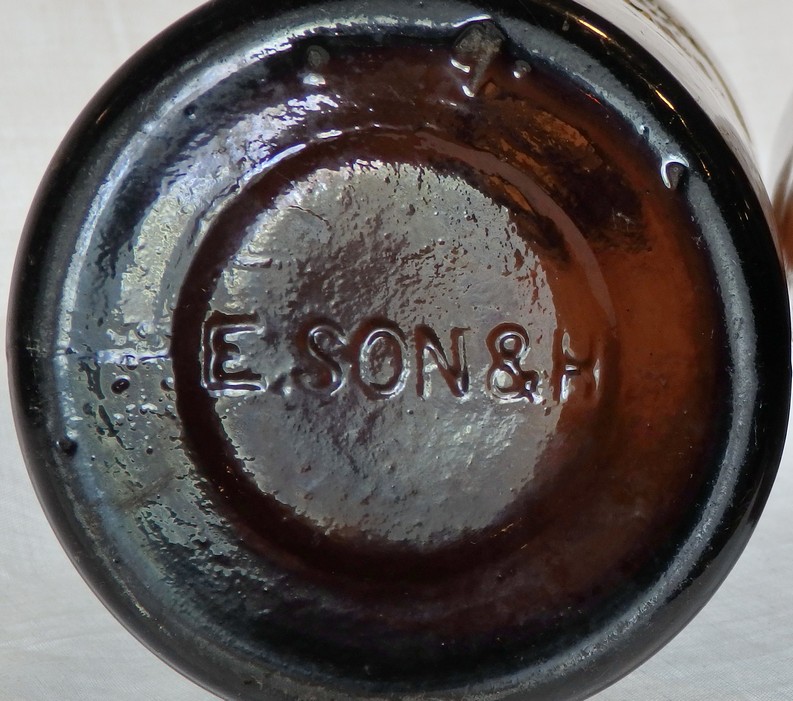

E. SON & H
1880-1886
Ely, Son & Hoyt
Clyde, NY (1880-1886)
beer #3
example
beer: #3

Glass making started in Clyde, NY in 1824, but bottle production did not start until 1864 (20). There were changes in companies and partners over the years, and it was not until Charles W. Reed retired in 1880 that the company became Ely, Son & Hoyt with the plant being called Clyde Glass Works (20). William C. Ely died in Sept 1886, and with the joining of another son, the company became William C. Ely's Sons & Hoyt (20), also written as Ely Sons & Hoyt by other sources. The company was then incorporated as Clyde Glass Works in 1895 (20).

The Copper Country has only one bottle with the E. SON & H mark, Torch Lake Brewery #3. Lockhart et al. (20) cited sources that attribute the E. SON & H mark to Ely, Son & Hoyt given the singular form of "Son" in both the mark and the company name. We follow this attribution, however Whitten (2) attributes both the E. SON & H mark and the E S & H mark to both companies.


E S & H
1886-1895
Ely Sons & Hoyt
Clyde, NY (1886-1895)

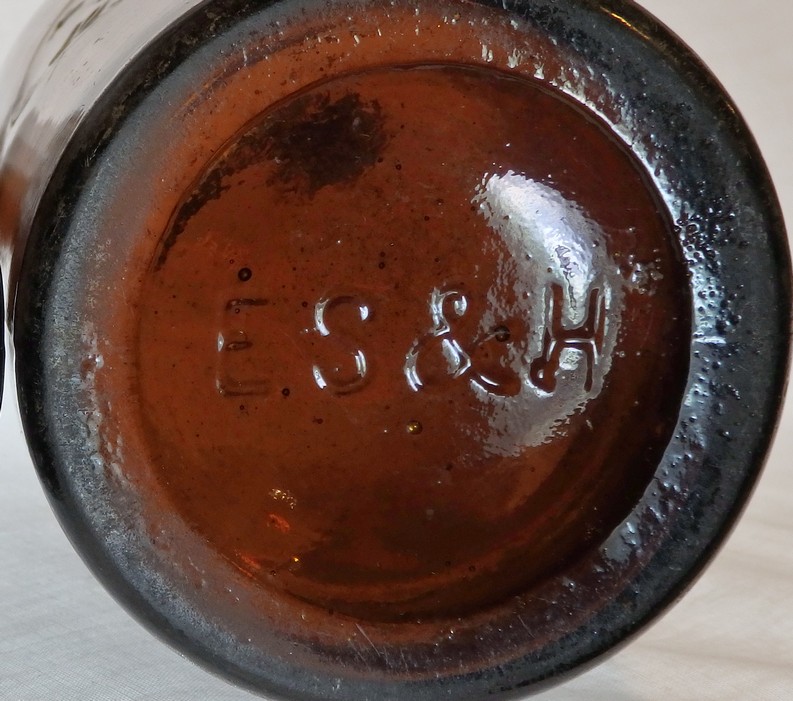

beer #3a
example
beer: #3a

One bottle from the Copper Country bears this mark, Torch Lake Brewery #3a. This bottle is a variant of #3, which bears the E. SON & H mark. Curiously, these two bottles have the same plate (but different molds), and thus presumably, were produced in quick succession.

Lockhart et al. (20) attributed the E S & H mark to Ely Sons & Hoyt (following Von Mechow), while Whitten (2) attributed it to both Ely, Son & Hoyt and Ely Sons & Hoyt. Sources cited by Lockhart et al. (20) reasoned that because the E. SON & H mark matches the Ely, Son & Hoyt company name (with "son" being singular), the E S & H mark must be from the Ely Sons & Hoyt company with "Sons" being abbreviated as "S". Empirical evidence for these attributions, however, is lacking. Conservatively, Whitten (2) attributed both marks to both companies.

Given our two Torch Lake bottles--#3 with E. SON & H and #3a with E S & H--both with the same plate, we identify three scenarios. 1) The two marks were used sequentially following the change in company name, and thus the two bottles date to c.1886. 2) The two marks were used concurrently throughout the years of both companies. 3) The E. SON & H mark was used by the earlier company while the E S & H mark was used by both. The second and third scenarios would expand the timeframe for a plate to be used with different maker's marks. The end date for this mark was set by the company being incorporated as Clyde Glass Works in 1895.


I. G. CO.
c.1880-1915
Illinois Glass Co.
Alton, IL (1873-1929)

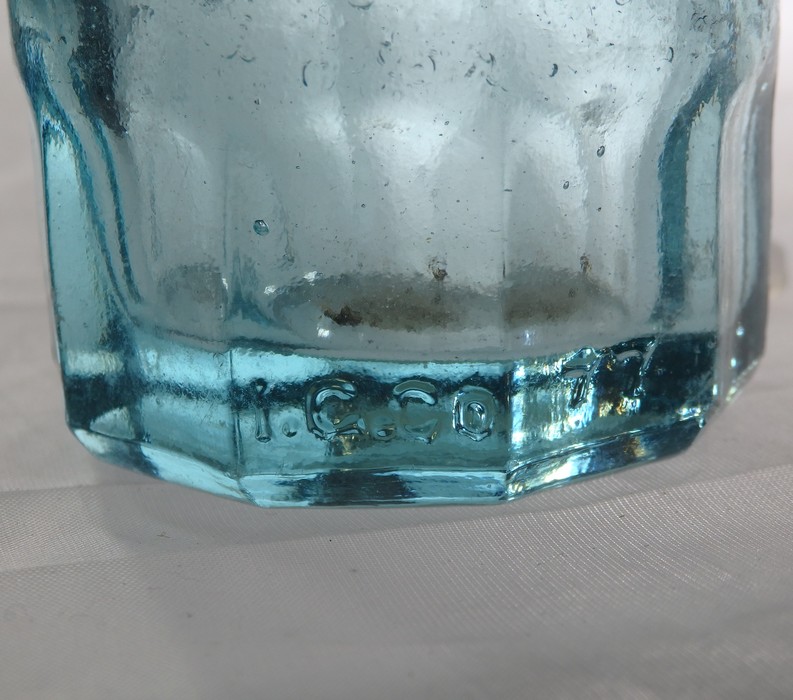

soda #16
example

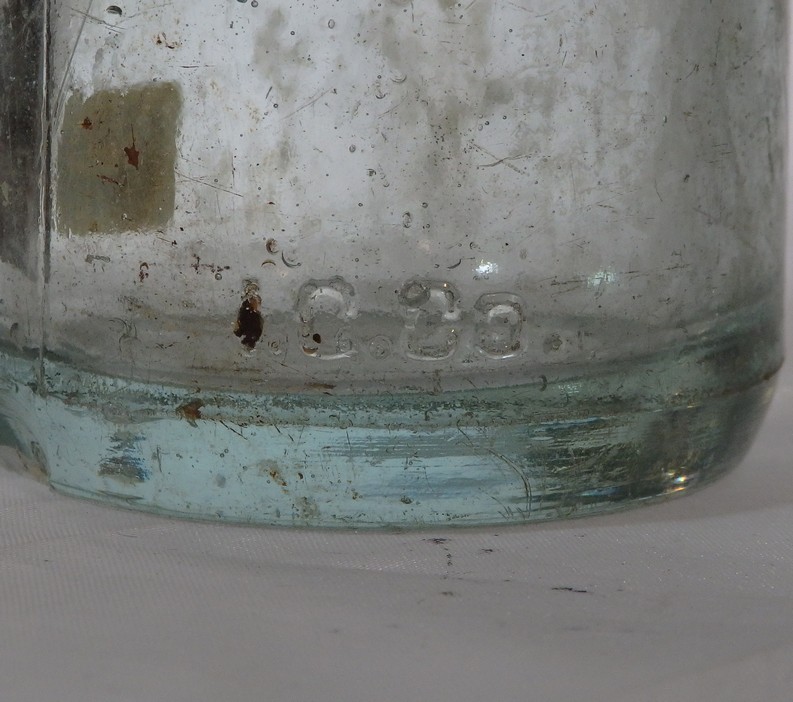

soda #74
example
beer: #108
soda: #15, 16, 27, 31, 42a, 45, 47, 48, 50, 58, 59, 71, 74, 97, 102, 107, 128, 135a, 137, s44, s47, s51, s70

It is no surprise that the Copper Country has numerous bottles marked from Illinois Glass Co. given its rise to dominance. These bottles bear the mark on the back heel.

With no prior glass experience, William Elliott Smith and Edward Levis incorporated Illinois Glass Co. in Aug 1873 and purchased the Alton Glass Works factory in Alton, IL that had failed three times previously (22). By 1875, the factory had outgrown its space and the townspeople raised money to purchase a 67-acre site to keep the operation from leaving (22). The new four-furnace factory, even at full capacity, could not keep up with demand (22). The factory installed a fifth furnace in Jan 1887 and a sixth furnace in 1890, but a fire destroyed three furnaces in Nov 1890 (22). They were rebuilt and three more were added by 1893 (22). From 1900, the company expanded with factories in other locations, plus added more furnaces (22). Owens machines were installed in 1910 and production began in 1911 (22). Mouth-blowing bottles ended in Jul 1915, and Illinois Glass Co. merged with Owens Bottle Co. in Apr 1929 to form Owens-Illinois Glass Co. (22).

Lockhart et al. (22) categorized the logos for Illinois Glass Co., and dated the I. G. Co. mark to 1880-1915 and the I. G. Co. mark with a number to the right to 1895-1915.

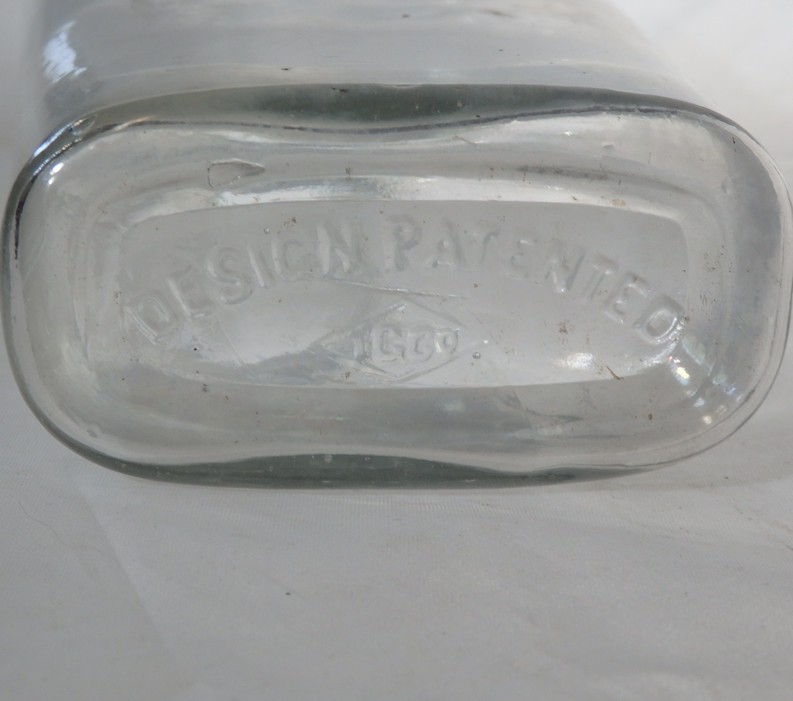

1897-1915
Illinois Glass Co.
Alton, IL (1873-1929)
misc #s54
example
misc: #2, s54

This is another mark from Illinois Glass Co. Lockhart et al. (22) encountered this mark on prescription medicines, flasks, and Sunshine Jars. They concluded that the IGCO-diamond mark was used concurrently with the I. G. Co. mark, and hypothesized that use of this mark ended with the end of mouth-blown bottle production in 1915.

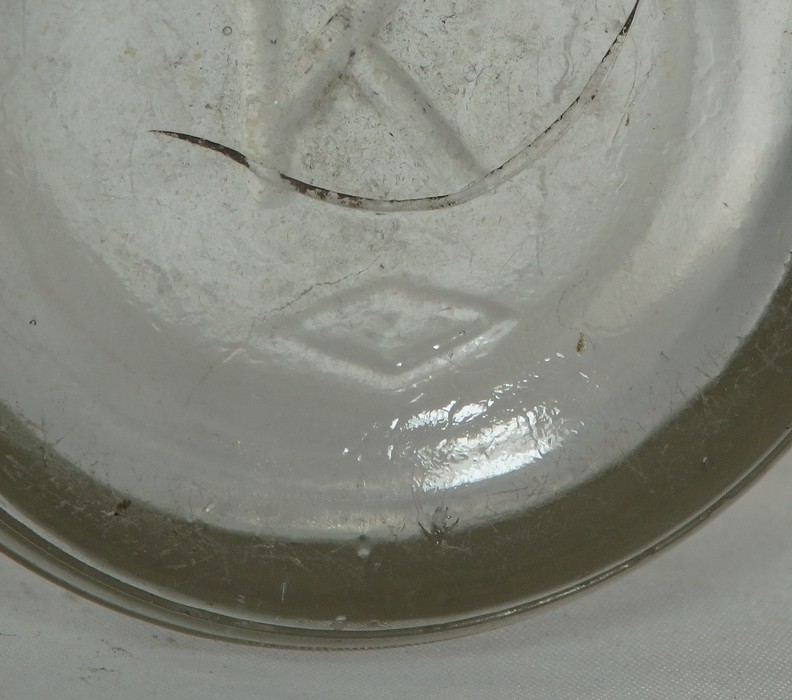

1915-1929
Illinois Glass Co.
Alton, IL (1873-1929)
abm-94
example

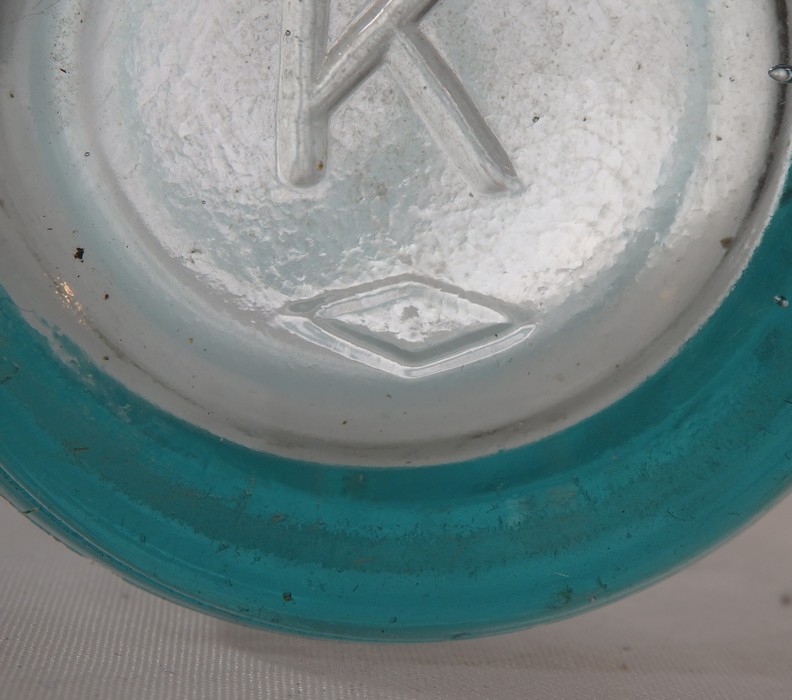

abm-95
example

This is a later mark from Illinois Glass Co. The "diamond I", as it was called in the company catalog, was first used in 1915, registered in 1927, and discontinued in 1929 when Illinois Glass Co. merged with Owens Bottle Machine Co. (22). The "I" may appear as a dot on smaller bottles (22).

Given the later time frame for this mark, we find it only on ABM bottles from the Copper Country, namely sodas.

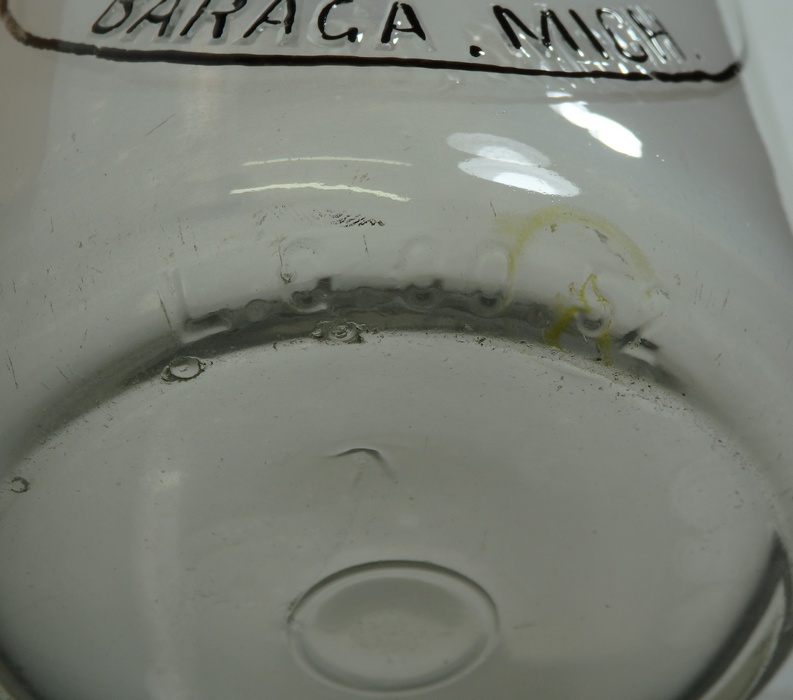

L. G. CO. 52
1921-c.1928
Lamb Glass Co.
Mt. Vernon, OH (1921-1963)

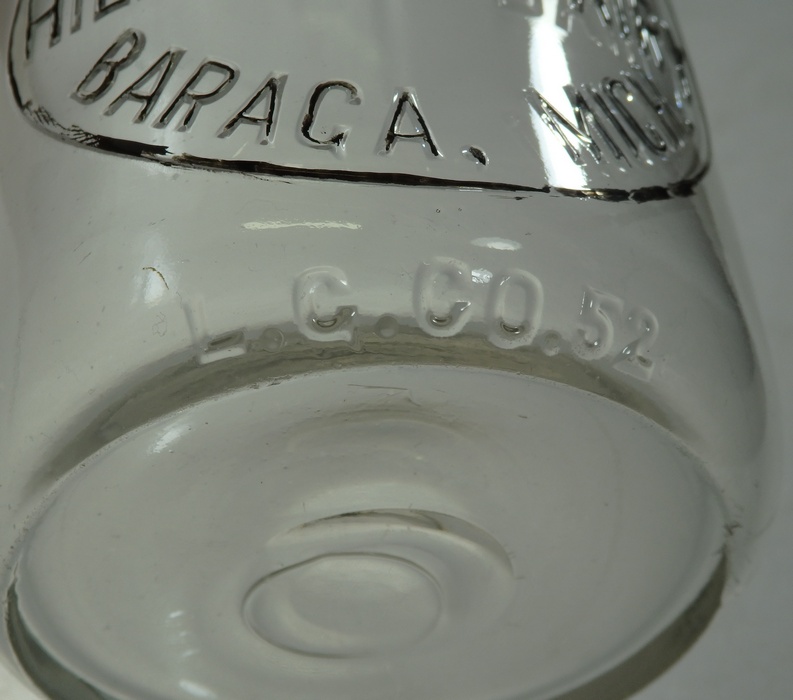

m-32
example
m-34
example
milk: m-32, m-34

Several glass companies used the L. G. CO. mark (42), but Lockhart et al. (43) attributed the mark with the number "52" to Lamb Glass Co., who specialized in milk bottles. We find this mark on two Hillcrest Dairy bottles from Baraga. Other milk bottles from the Copper Country bear other marks from the Lamb Glass Co.

After Rex M. Lamb sold Essex Glass Co. to Thacher Mfg. Co. in 1920, he did not remain out of the milk bottle manufacturing industry for long (43). In Jul 1921, he and his associates formed the Lamb Glass Co. and they began production in Nov (43). The firm specialized in producing machine-made milk bottles (43). They started with one furnace and four Miller machines and built a second furnace in 1922 (43). The machines were later replaced with Lynch MT machines and then by Hartford-Empire machines (43).

Lamb adopted pyroglaze labels in 1934 and was known for the "baby face" bottles that separated the cream (43). The firm continued to specialize in milk bottles until 1944 when they added fruit jars, packers, and preserve wares, likely because more dairies were switching to waxed paper and plastic containers (43). In 1961, Lamb pushed the use of half-gallon or larger bottles (43). In 1963, Lamb merged with the Dorsey Corp, owners of Chattanooga Glass Co., but continued it use its own mark until 1971 (43).

Lamb Glass Co. did not use date codes, so Lockhart et al. (42) used historical sources to estimate the date range for the L. G. CO. 52 mark to 1921-c.1928.

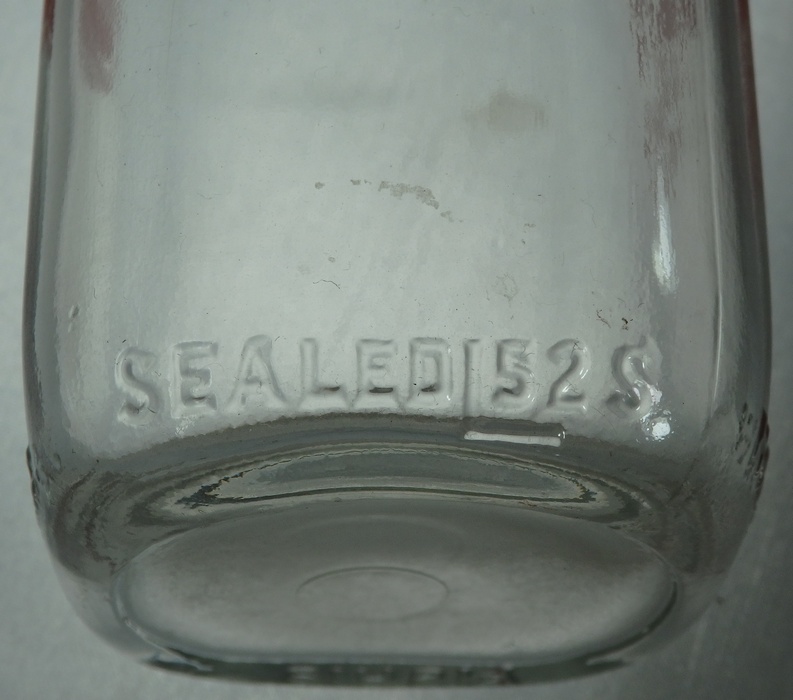

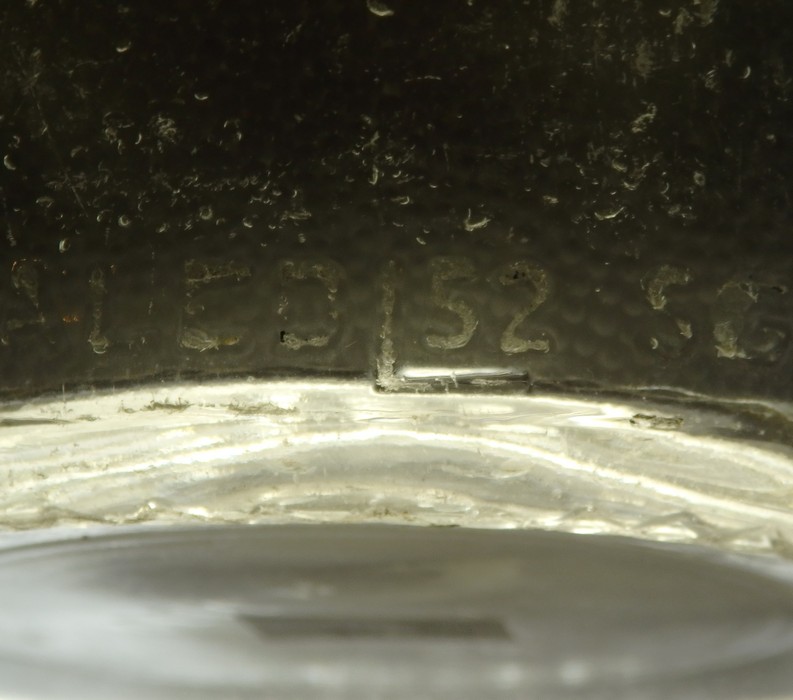

c.1929-c.1971
Lamb Glass Co.
Mt. Vernon, OH (1921-1963)
m-3
example
m-4
example
milk: m-3, m-4, m-13, m-14, m-94

Lockhart et al. (43) attributed this mark as a later mark of the Lamb Glass Co. We find it on several Copper Country milk bottles.

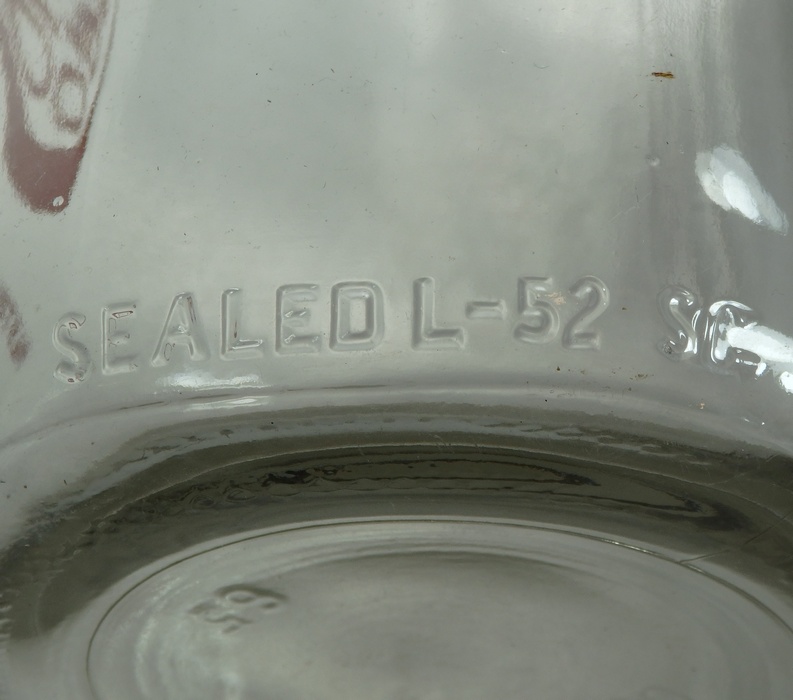

L-52
1921-c.1928
Lamb Glass Co.
Mt. Vernon, OH (1921-1963)
m-97
example
milk: m-97

Lockhart et al. (43) attributed this mark to the Lamb Glass Co. They suspected the mark was used prior to the mark, but we find it on Copper Country Dairy #m-97, which clearly is a bottle from the 1960s.

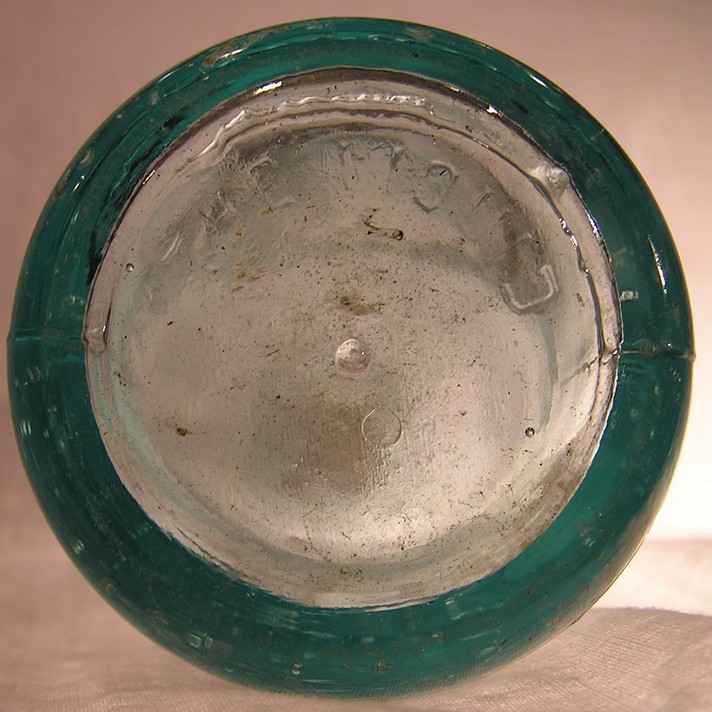

THE LIQUID
c.1900-c.1920
Liquid Carbonic Acid Mfg. Co.
Chicago, IL (1888-1902)
Liquid Carbonic Co.
Chicago, IL (1902-1984)
soda #19
example
soda #62
example
soda: #19, 62

THE LIQUID mark is found on the base of two Copper Country Hutchinson sodas.

In 1888, Jacob Bauer, who was a druggist from Indiana, founded the Liquid Carbonic Acid Mfg. Co. in Chicago (47). The company produced liquefied CO2, but also became a manufacturer of soda fountains and bottling supplies (47). They used THE LIQUID logo on letterhead by at least 1900, and also called their products "Diamond brand" (47). Their marks on bottles include THE LIQUID by itself or within an elongated diamond (47). The company was purchased by C. B. I. Industries in 1984 (47).

The company apparently was not a glass manufacturer. Instead, they likely sold bottles they commissioned as part of their supply business. In particular, South Range Bottling Works #19 has M. B. & G. CO. as a maker's mark and THE LIQUID on the base.

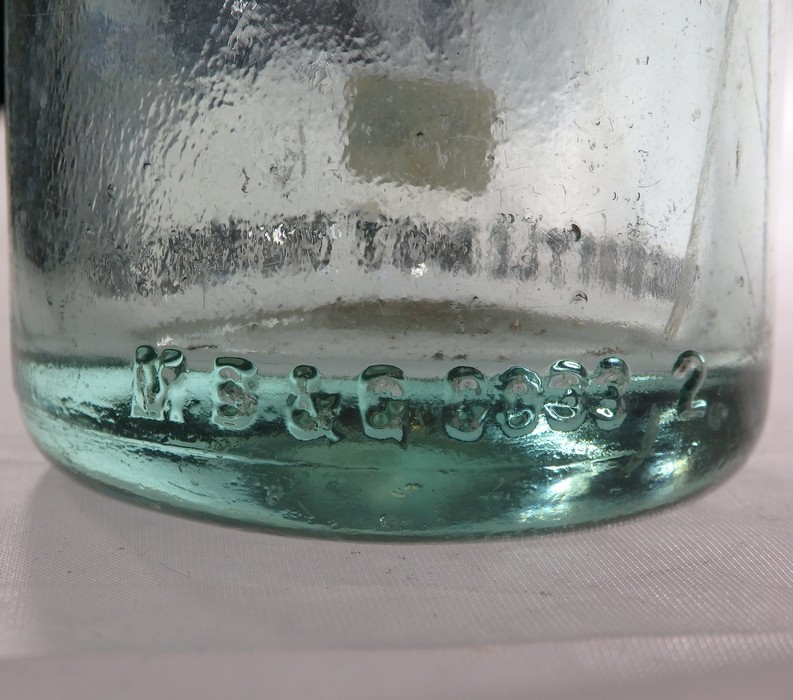

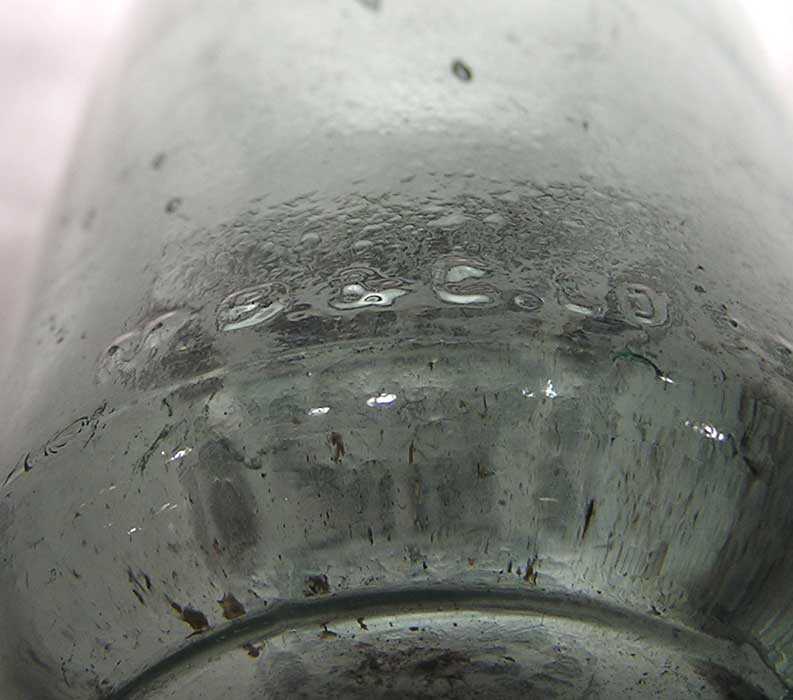

M B & G Co.
1900-1904
Massillon Bottle & Glass Co.
Massillon, OH (1900-1904)
soda #20
example
soda #19
example
soda: #19, 19a, 20

We find this mark only on bottles from South Range Bottling Works.

Massillon Bottle & Glass Co. had a brief history--incorporated in Jun 1900 by a group of coal executives and purchased by Ohio Glass Co. in Aug 1904 (9). In addition, Schulz et al. (9) noted that they started with beer bottles and fruit jars in their first year, which further narrows the dating of Hutchinson soda bottles.

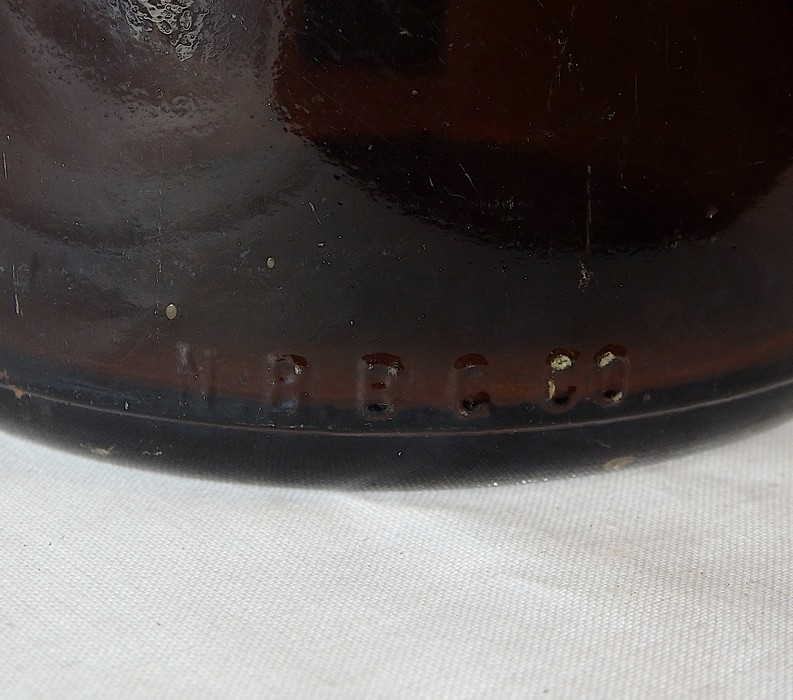

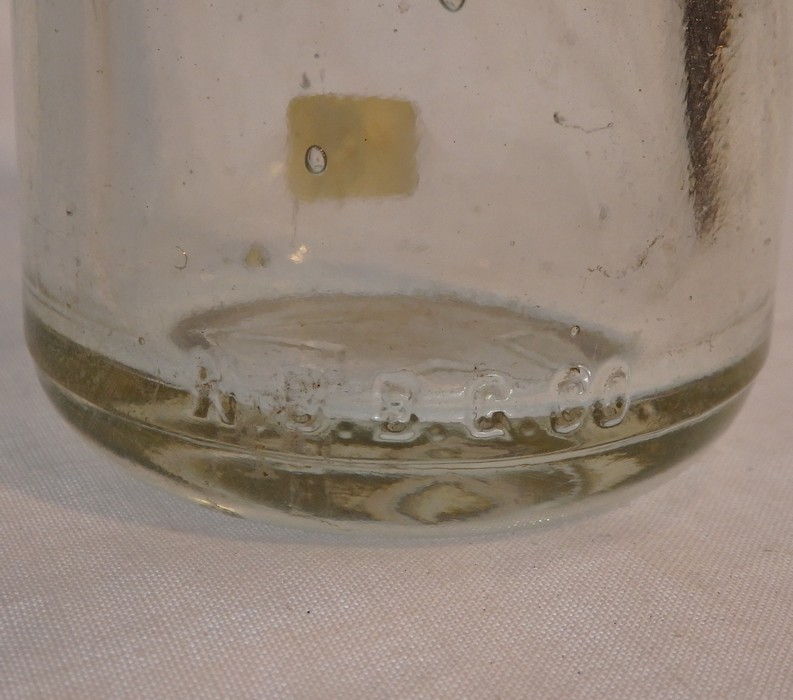

N B B G Co.
1888-1920s
North Baltimore Bottle Glass Co.
North Baltimore, OH (1888-1895)
Albany, IN (1895-1902)
Terre Haute, IN (1900-c.1926)
soda #42b
example
beer #44a
example
beer: #22a, 28a, 44a, 58, 69b, 75, 79, 80, 91a, 98, 116, s58, s77, abm-25
soda: #24b, 29, 30, 33, 34, 41, 42b, 43a, 49a, 51, 54, 55, 56, 56a, 57a, 83b, 84, 85, 85a, 86, 87, 106, 112, 154, 155a, s82, abm-2a, abm-44, abm-86, abm-87

The Copper Country has numerous bottles with the N B B G Co. mark, mostly located on the back heel but two are located on the base (beer #116, soda #84).

North Baltimore Bottle Glass Co. was incorporated in Oct 1887 (23). Land for a new factory was purchased in Dec 1887 and production started in Apr 1888 (23). The company moved operations to Albany, IN in 1895 when natural gas reserves were depleted (23). It then started a plant in Terre Haute, IN in 1900 and closed the Albany plant in 1902 (23). The factory installed an O'Neill semiautomatic machine in 1911 but continued to mouth blow bottles in 1913 (23). Lockhart et al. (23) concluded that the company ended as a result of Prohibition and cited conflicting closure dates from various sources.

Lockhart et al. (23) noted that this was the only mark used by North Baltimore Bottle Glass Co. They only found one example of the mark on a machine-made bottle, so evidently, use of the mark ended with the transition to machines. In contrast to their prediction that bottles from the North Baltimore plant (1888-1895) should have had applied finishes, they noted that they have not observe any bottles with the N B B G Co. mark and an applied finish. Accordingly, they concluded that either the North Baltimore plant did not mark its bottles or they only used a tooled finish, which would have been atypical. Thus, empirical evidence suggests that the date range can be narrowed to 1895-c.1920, which aligns with our Copper Country bottles.


O B CO
1904-1905
Ohio Bottle Co.
Newark, OH (1904-1905)

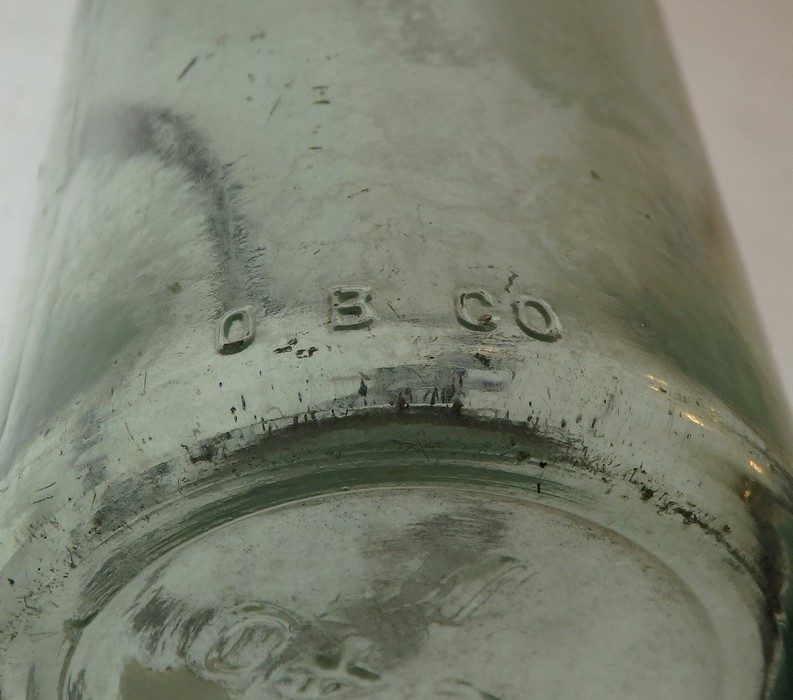

beer #77
example

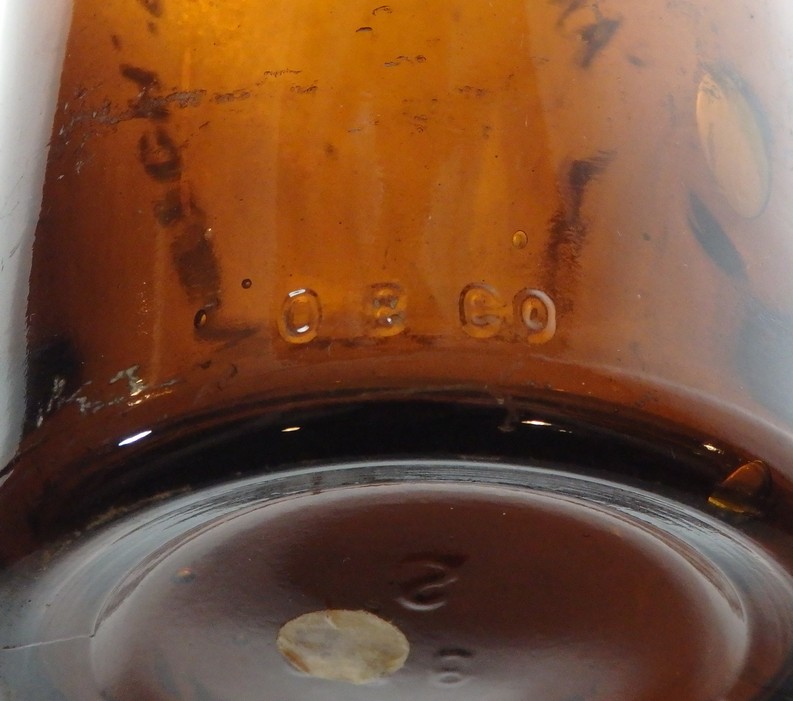

beer #75a
example
beer: #75a, #75e, 77
soda: #s10

Ohio Bottle Co. was a short-lived, first phase in a succession of mergers that formed Owens-Illinois Glass Co. Edward H. Everett spearheaded the formation of Ohio Bottle Co. in Oct 1904 by merging Edward H. Everett Glass Co. (Newark, OH), Massillon Bottle & Glass Co. (Massillon, OH), Reed & Co. (Massillon, OH), and Wooster Glass Co. (Wooster, OH), but the Wooster plant closed within the month due to a labor problem (8). Lockhart (8) stated that the purpose was to monopolize the use of the Owens machine for beer and soda bottles. Within three weeks, they contracted an exclusive license with Owens Bottle Machine Co., but then they absorbed two more companies in 1905 and form the American Bottle Co. before operating any machines (8).

The Copper Country bottles marked by Ohio Bottle Co. can be precisely dated since the company lasted for only about 10 months. It is possible, though, that American Glass Co. continued to use the molds with the O B CO mark until they wore out, which Lockhart et al. often stated was the practice.



1929-c.1960
Owens-Illinois Glass Co.
Toledo, OH (1929-1954)

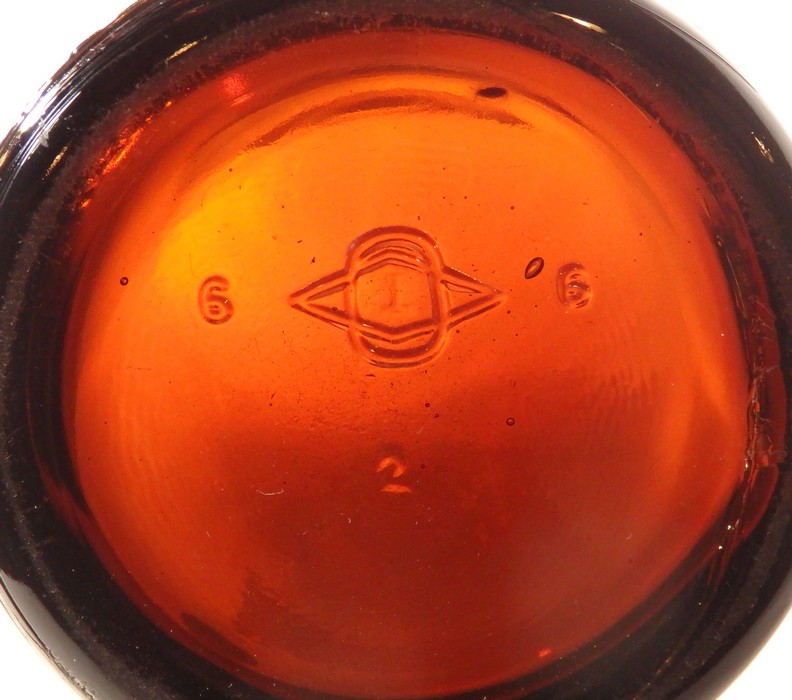

abm-8
example

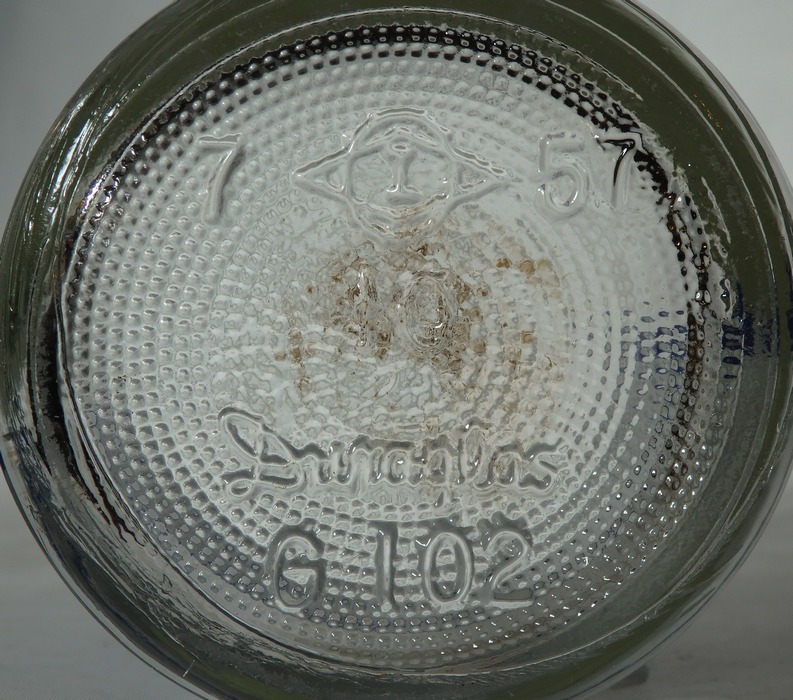

abm-41
example

To understand this company's rise to dominance, we start with the advent of Owens' bottle making machine.

At Libbey Glass Co., Michael J. Owens attempted to automate the steps of the glass making process (39). Impressed with Owens' successes, Libbey incorporated the Toledo Glass Co. in Dec 1895 to focus on developing innovations in glass making (39). At Toledo, Owens invented the first fully-automatic bottle making machine and patented it in 1903 (27). Principle investors of Toledo Glass Co. incorporated the Owens Bottle-Machine Co. on 03 Sep 1903 to manufacture and lease Owens' machine (37). The company issued exclusive licenses to use the machine to manufacture specific types of bottles (37). In 1904, several glass companies merged to form the Ohio Bottle Co. for the purpose of obtaining an exclusive license for soda and beer bottles (8). In 1905, within three weeks of obtaining the license, they absorbed two more companies and formed the American Bottle Co. (8). Likewise, Thatcher Mfg. Co. held the sole license to manufacture milk bottles (37). Commercial use of the machine started in 1905 (37).

Growth of the company was slowed by two depressions: the panics of 1903 and 1907 (27). Only three licenses were active by 1907 (37). The company quickly realized that the practice of issuing exclusive licenses excluded itself from entering the bottle making business (37). Thus, the company created three corporations and issued them licenses to make bottles (37). The company exerted control of its rivals by becoming the majority stock holder (37). It gained control of Whitney Glass Works in 1915, American Bottle Co. and Graham Glass Co. in 1916, and purchased Greenfield Fruit & Bottle Co. from Ball Brothers Glass Mfg. Co. in 1917 (37).

Between 1911 and 1919, the company controlled 17 plants (37). It was renamed the Owens Bottle Co. in 1919, at which time it had all the factories it would own (37). The emphasis switched from being a manufacturer of machines to a manufacturer of bottles using the machines (39). Some of the individual plants continued to operate under their own name and continued to use their own maker's mark (37). This ended in Apr 1929 when Owens Glass Co. and Illinois Glass Co. merged to form Owens-Illinois Glass Co. (37).

The company continued the same tactic of gaining back control of its machines. It acquired the Berney-Bond Glass Co. in 1930 and the Atlantic Bottle Co. in 1931, and thus, gaining control of milk bottle production (38). In 1931, the firm formed the Owens-Illinois Glass Co., Ltd., which then purchased the Illinois Pacific Coast Co., the largest glass manufacturer on the west coast (38). This west coast operation then changed its name in 1932 to Owens-Illinois Pacific Coast Co. (38). The firm purchased the O'Neill Machine Co. in 1933, and acquired its patents (38). The bottling industry boomed following the repeal of Prohibition in 1933 (38). In 1934, Owens-Illinois gained control of the Closure Service Co. and began making its own bottle closures (38). In 1954, the firm changed its name to Owens-Illinois, Inc. (38), and it continues to dominate the market today.

The OI-diamond logo is found on many Copper Country ABM bottles. It is surrounded by three codes: typically, factory code to the left, date code to the right, and mold code below (40). The date code initially consisted of only a single digit for the last digit of the year (40). Unfortunately, this meant that a "0" could refer to 1930 or 1940 (40). The company corrected this problem by adopting a two-digit date code in 1940, but implementation was delayed (40). By 1941, a single dot after a single-digit date code was used to indicate the 1940s, but only on beer and soda bottles (40). The dot system was replaced by the two-digit system by 1943 (40).

In addition to the logo, Owens-Illinois started to emboss a cursive "Duraglas" on the base of its bottle from 1940 (40). Duraglas was a new, stronger formula of glass that allowed manufacturers to use less glass (thinner bottles) and thus, maximize profits (40). Also from 1940, the base was stippled to prevent checking (shallow cracks) due to rapid cooling of the glass (40). The presence of either of these features can aid in dating, but nothing can be concluded by their absence (40).

The Berney-Bond Glass Co., which was acquired by Owens-Illinois in 1930, used BB48 as one of its maker's marks (46). This mark continued to be used on Owens-Illinois bottles to at least 1962 (46), and we find it on several Copper Country milk bottles along with the mark. It appears on bottles made at the Berney-Bond plants but also at other Owens-Illinois plants (48). The company wanted to discontinue the mark in 1954, but extended its use because it was tied to various state regulations (48), presumably as a seal mark.

Given the market dominance of Owens-Illinois Glass Co. from its inception in 1929, we naturally find that many of the ABM soda, beer, and milk bottles from the Copper Country bear its mark.



1954-c.2000
Owens-Illinois, Inc.
San Francisco, CA (1954-present)
m-95
example
m-96
example
milk: m-1, m-2, m-20, m-93, m-95, m-96, m-120, m-123

The Owens-Illinois Glass Co. changed its name to Owens-Illinois, Inc. in 1954 and adopted the I-in-a-circle logo (38,40). We find this logo used on several milk bottles from the 1950s to 1960s.


R G Co.
1901-c.1907
Root Glass Co.
Terre Haute, IN (1901-1932)

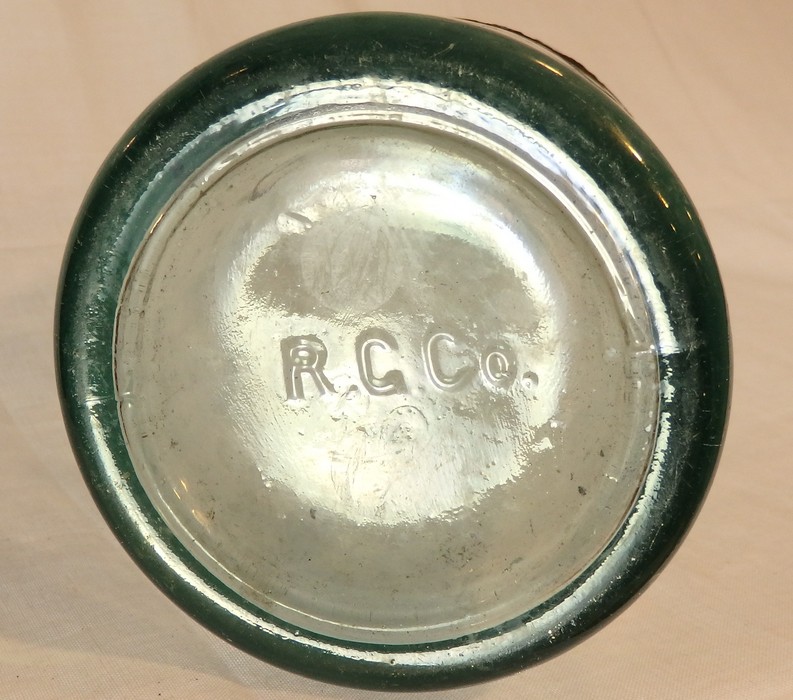

soda #70
example
soda #150
example
soda: #70, 100, 113, 115, 119, 148a, 150

The Root Glass Co. was incorporated in May 1901, with the purpose of making soda and beer bottles (24). Their new factory was operational by Nov (24). The factory began using its own semi-automatic machine in 1912, and may have ceased mouth-blowing at that time or perhaps by 1914 (23). A tornado flattened the factory in March 1913 but it was rebuilt (23). It is unclear if Root operated three plants or three furnaces, but one burned in Nov 1924 and was rebuilt, while another was destroyed by fire in May 1925 (23). The company was sold to Owens-Illinois Glass Co. in 1932 and the plant continued to produce glass until 1938 (24).

The R G Co. mark is one of two marks we find on Copper Country bottles from Root Glass Co. We see this mark on the back heel or base, with or without punctuation, on soda bottles. Lockhart et al. (23) discussed alternative attributions for this mark proposed by others, but supported the attribution to Root Glass Co. based on empirical evidence. They dated this mark as being the earlier mark (1901-c.1907) of Root Glass Co., but suggested that it is possible that some older molds with this mark were used until 1912.


ROOT
1901-1932
Root Glass Co.
Terre Haute, IN (1901-1932)

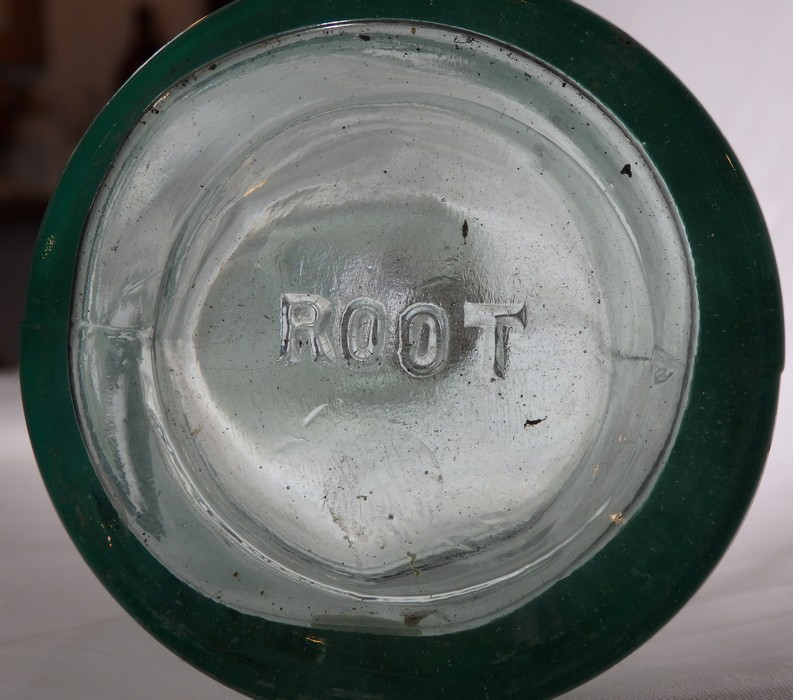

soda #99
example

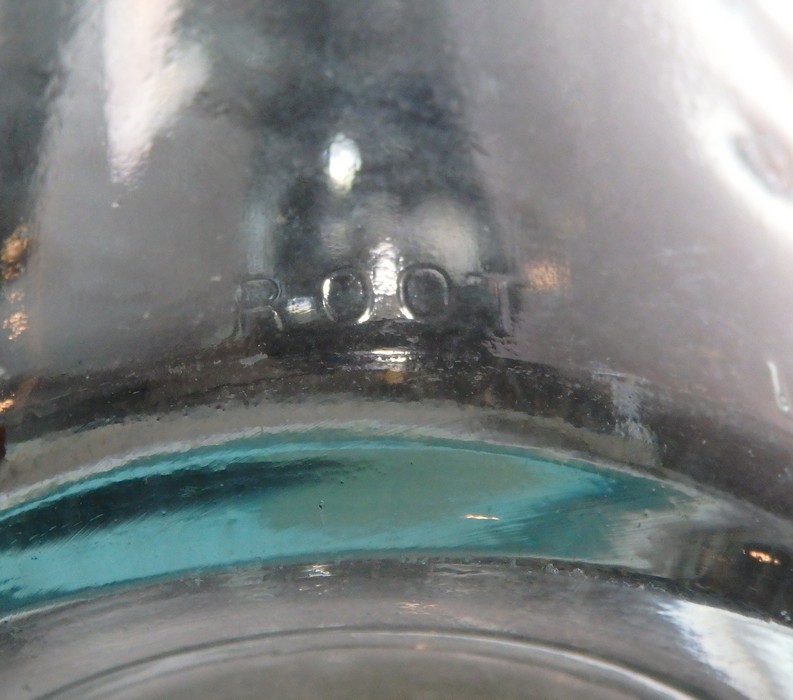

soda #146
example

ROOT is the second mark from Root Glass Co. that we find on Copper Country beer and soda bottles. Lockhart et al. (24) suggested that the mark on soda shifted from the base to the heel probably in 1909. They also noted that the heel mark on soda or beer can be accompanied with numbers for the mold and the year starting from 1909, but some bottles have just the mold number or neither. For example, Henry Larsen #s12 is marked with 12 ROOT 542, indicating that it was made in 1912. Base marks, however, did not have a date mark. Lockhart et al. (23) also noted that the company focused more on soda bottle production from as early as 1910, which matches our greater number of sodas over beers bearing this mark.



c.1897-1899
possibly Streeter Glass Co.
Greenfield, IN (1879-1899)

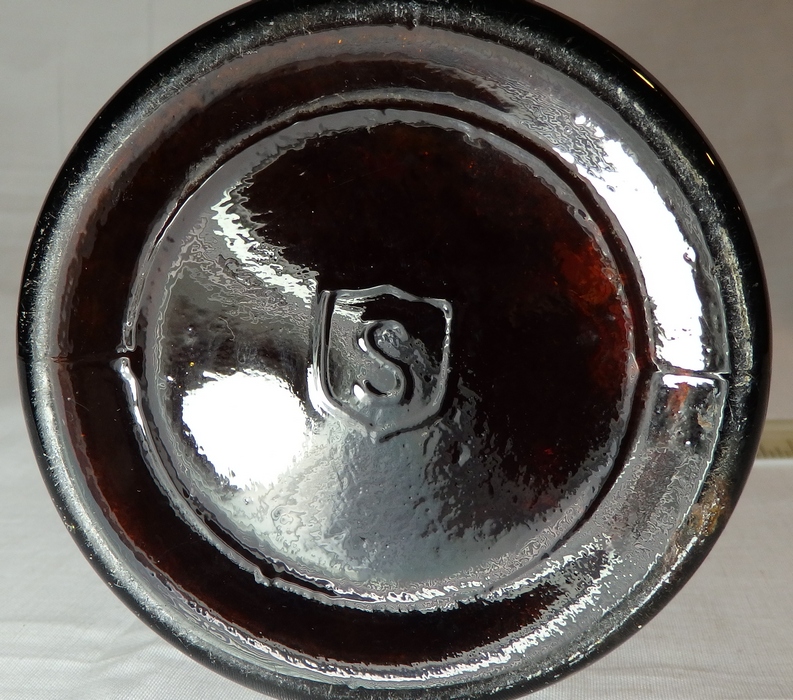

beer #69c
example
beer: #69c

We have only one bottle with this mark, A. Haas Brewing Co. #69c.

von Mechow (4) attributed this mark to Streeter Glass Co., but did not provide documentation or reasoning. Lockhart et al. (25) noted that the company may have opened in 1897 and found that the plant was called Streeter Jar & Bottle Works. Streeter moved the plant to Terre Haute, IN in 1900 and incorporated the Terre Haute Glass Mfg. Co. (25). Lockhart et al. (25) noted that the company was under receivership by May 1903, and was sold to Root Glass Co. in Oct 1905, who sold it to Ball Brothers in Nov 1909.



c.1885-c.1920
Swindell Bros.
Baltimore, MD (1873-1959)
or Chicago Glass Mfg. Co.
Chicago, IL (1883-1892)

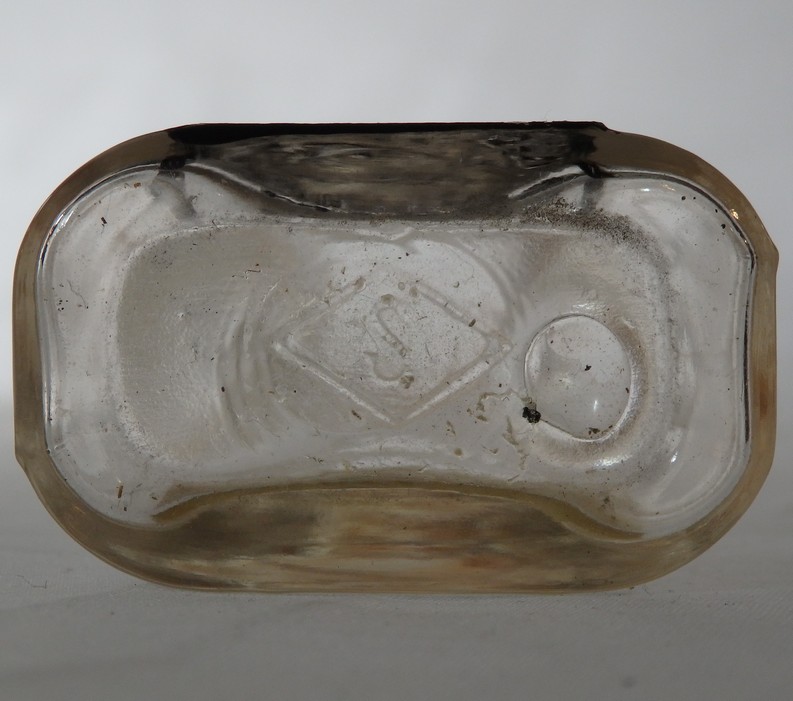

phar. #1
example

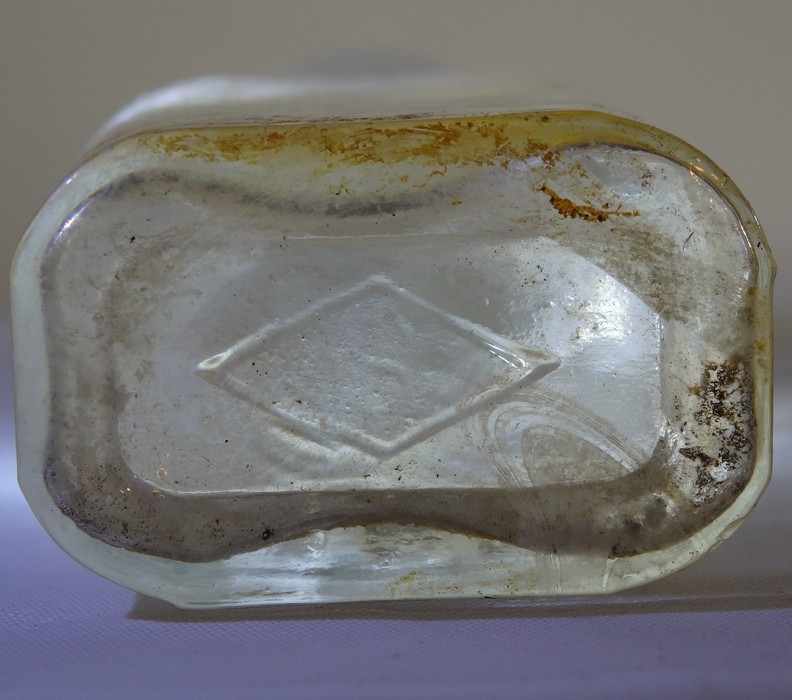

phar. #32
example
pharmacy: #1, 32

The S-in-a-diamond mark is found on only two pharmacy bottles from the Copper Country.

It turns out, more than one glass company used this mark. The likely choices for our Copper Country bottles are Swindell Bros. in Baltimore, MD or Chicago Glass Mfg. Co. in Chicago, IL (2,30,31). Without further information, we cannot determine which company made our bottles.


S B & G Co.
1881-1905
Streator Bottle & Glass Co.
Streator, IL (1881-1905)

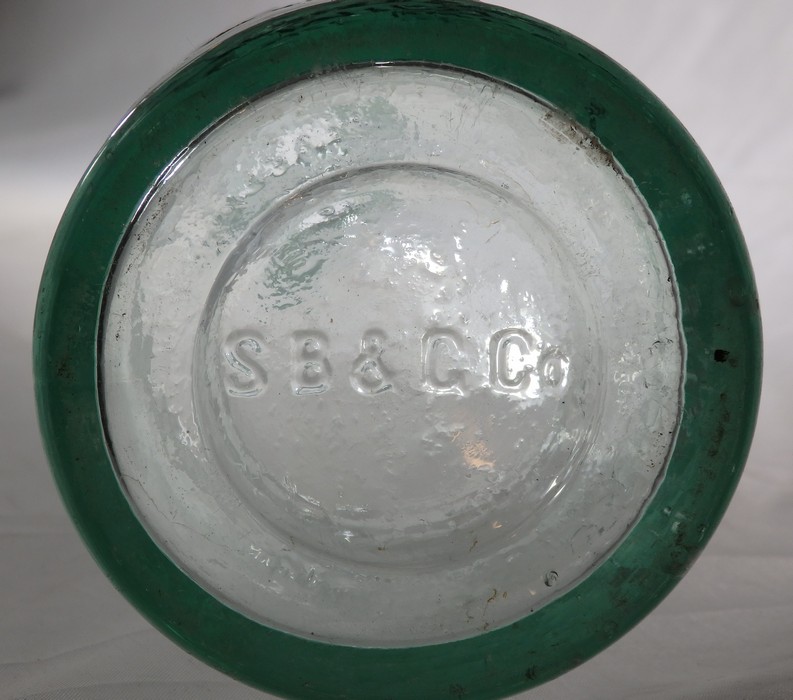

beer #25
example

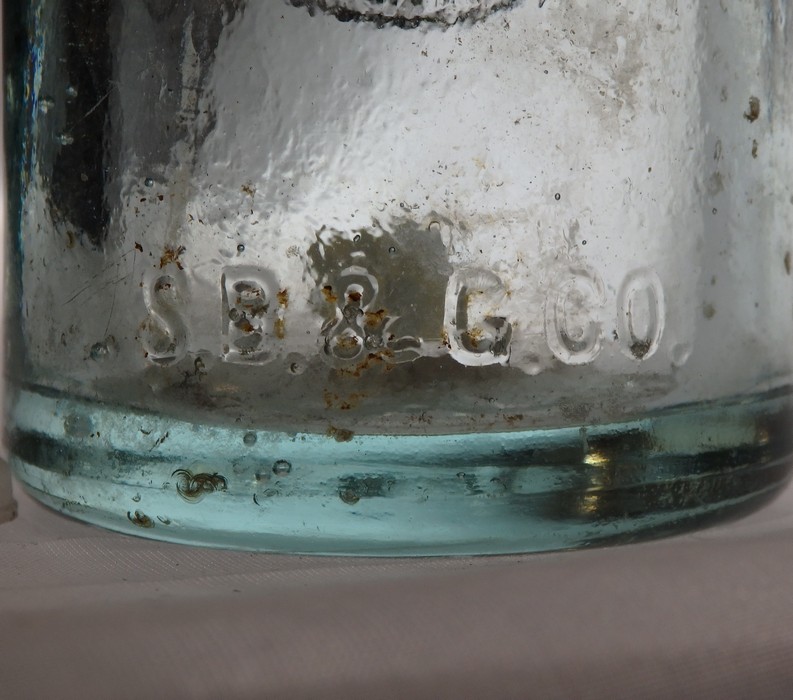

soda #83
example
beer: #23, 24, 25, 26, 30, 44b, 53, 69a, 91b, 126, 128, 129, s7
soda: #28a, 29a, 30a, 33a, 81, 83, s13

Streator Bottle & Glass Co. incorporated in June 1881, recruited many workers from DeSteiger Glass Co. after it was destroyed by fire in 1885, purchased the Streator Flint Glass Works from Adolphus Busch in 1898, and merged into American Bottle Co. in 1905 (11).

Lockhart et al. (11) identified the S B & G Co. mark as the only mark used by Streator Bottle & Glass Co. We find it on a number of Copper Country beer and soda bottles. Lockhart et al. (11) only knew the mark to occur on the base for beers and mostly on the heel for sodas. We find this to also be true for the Copper Country.

Lockhart et al. (11) observed that Streator's mark did not appear on embossed beers until c.1890. They also correlated the mark in a horizontal orientation in the middle of the base to c.1890-1905. The Copper Country beers fit this style. In contrast, they dated the S B & G CO in an arch or circle on the base to c.1885-1890. The quart Jos. James #81 has this style, although it is a soda not a beer.


S. F. G. Co.
early 1900s
(unknown)
(unknown)

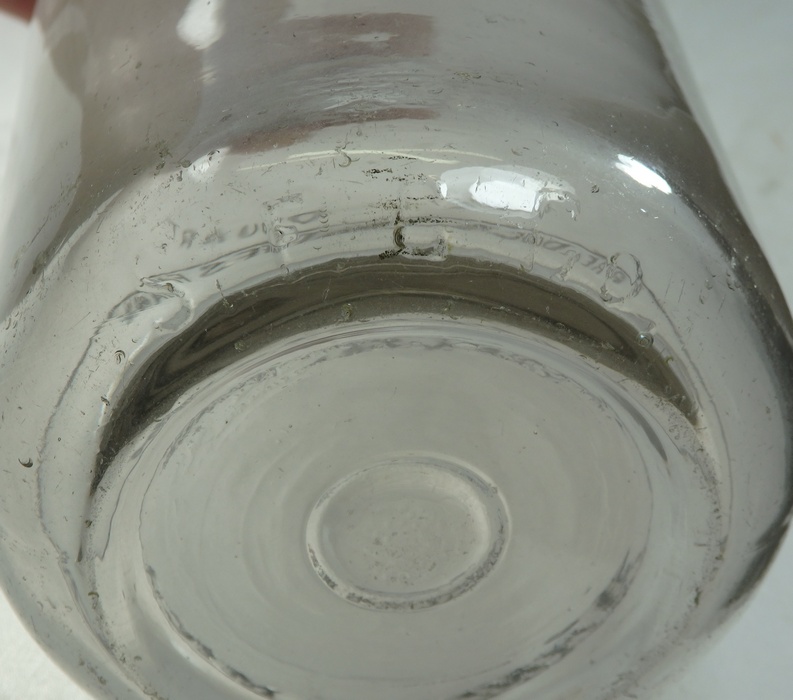

m-49
example
milk: m-49

We find this mark on the heel of one milk bottle, Redcliff Farm from Arnheim. Lindsey (42) dates it to early 1900s but its attribution is unknown.


S-F G Co.
1894-c.1897
Sheldon-Foster Glass Co.
Gas City, IN (1894-c.1902)
Chicago Heights, IL (1901-1912)

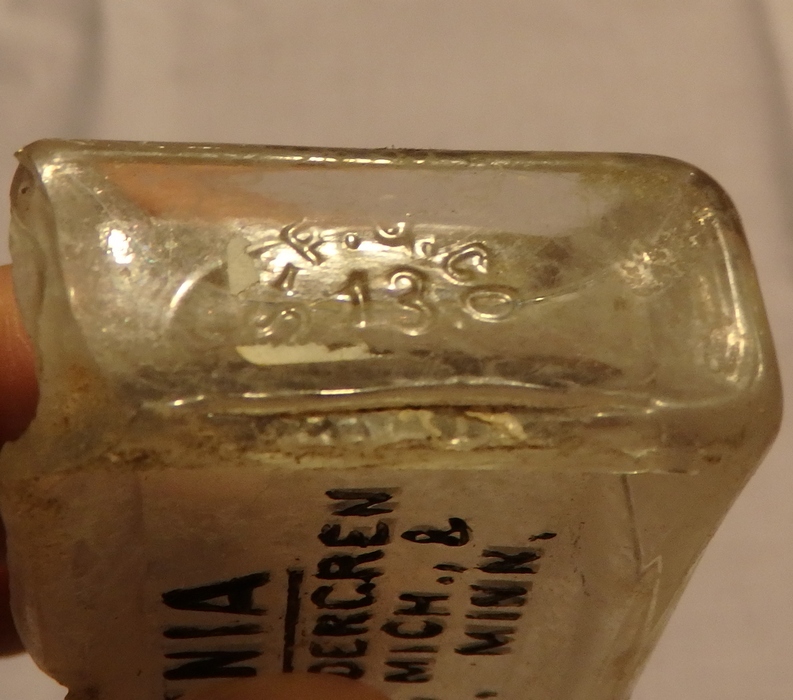

phar. #25
example
pharmacy: #25

The Sheldon-Foster Glass Co. was incorporated in July 1894 by Thomas K. Sheldon and Adelbert M. Foster (29). They acquired the Gas City plant of Marion Flint Glass Co. (29). The company moved to Chicago Heights, IL probably in 1901 but Lockhart et al. (29) noted that the Gas City plant may have continued operating for a few years. The Schofield Brothers in Marion, IL took control in Oct 1912 and changed the name to Chicago Heights Bottle Co. in Jan 1913 (29).

Sheldon-Foster Glass Co. supplied distributors, Dean, Foster & Co. and A. M. Foster & Co. (29), who used their own marks on many of the Copper Country pharmacy bottles. In fact, only one bottle bears the mark specifically for Sheldon-Foster Glass Co.; that is, Sorsen & Sodergren #25.


SHELDON
c.1900-c.1907
probably Sheldon-Foster Glass Co.
Gas City, IN (1894-c.1902)
Chicago Heights, IL (1901-1912)

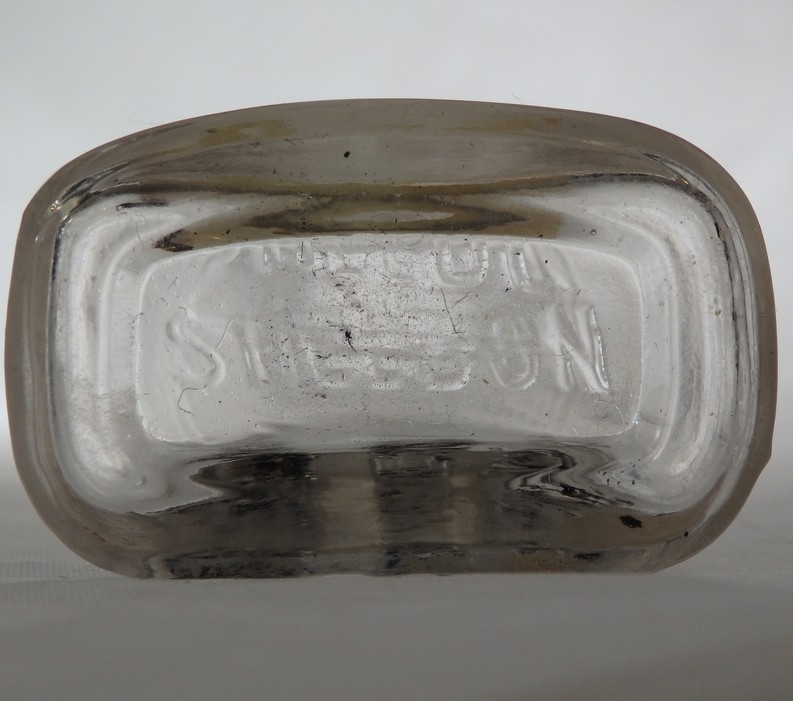

phar. #2
example
pharmacy: #2

Whitten (2) and Lockhart et al. (27) suspected the SHELDON mark was used by the Sheldon-Foster Glass Co. in Gas City, IN and Chicago, IL. Lockhart et al. (27) noted that the mark appeared in the catalogs of Dean, Foster & Co. and A. M. Foster & Co., both of which were distributors not glass manufacturers. The mark, however, may refer to a bottle style, and Lockhart et al. (27) labeled it as the Sheldon Oval. Similar markings for a bottle style consist of KELLOGG and KLONDIKE associated with A. M. F. & CO. and BREED associated with W. B M CO.


T. M'F'G. CO.
c.1890-1919
Thatcher Mfg. Co.
Elmira, NY (1889-1957)
New York, NY (1957-1985)
m-70
example

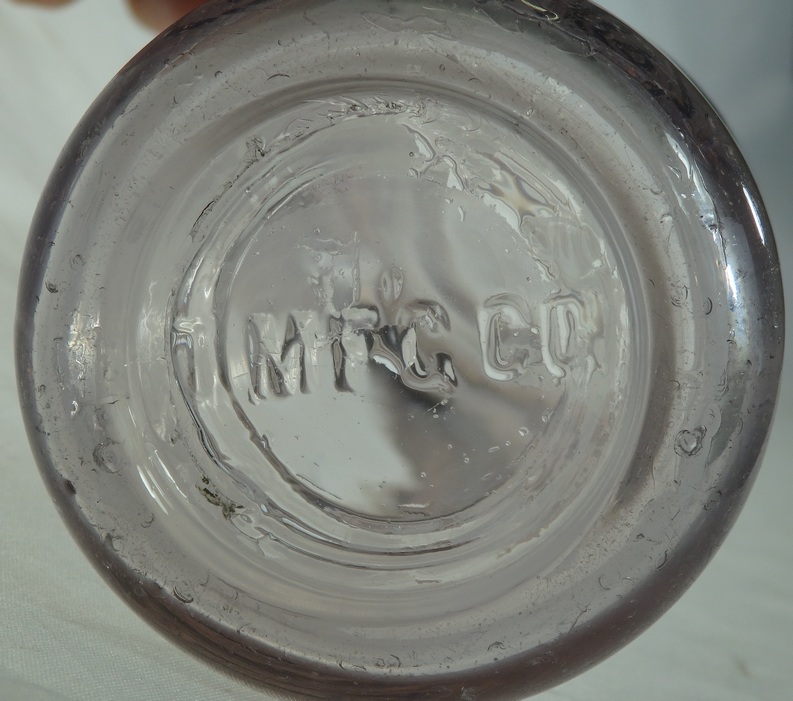

m-69
example
milk: m-69, m-70, m-71

The most prominent maker's marks we find on Copper Country milk bottles, with good reason, are those of Thatcher Mfg. Co.

Dr. Hervey D. Thatcher was a New York druggist who was frequently described as "the father of the milk bottle" (41). It was his colleagues, however, that patented in 1889 what collectors recognize as the iconic milk bottle, which by 1895, Thatcher advertised as the "Common-Sense Milk Bottle" (41). A wax-impregnated ligneous disk sealed the bottle on a ledge on the inside of the top (41).

Thatcher incorporated the Thatcher Mfg. Co. in 1889, and it manufactured milk bottle caps and other Thatcher products (41). The company also sold milk bottles, but they were manufactured by Whitall Tatum & Co. (41).

Francis E. Baldwin took control of the company in 1902 (41). He observed the Owens machine in operation in 1903, and then secured funds to erect a plant and for an exclusive Owens license for milk bottles in 1904 (41). He erected a plant in Kane, Pennsylvania, known as the Kane Milk Bottle Co. or the Baldwin-Travis Glass Co., to manufacture bottles for Thatcher to distribute (41). In the first year, the plant had problems adapting the Owens machine to make a new type of bottle, especially given Thatcher Mfg. Co. had no prior glass manufacturing experience (41). Baldwin hired a young engineer and successful production began probably in late 1905 (41). Baldwin promptly merged the Baldwin-Travis operation with Thatcher Mfg. Co. (41).

Thatcher built a second plant in 1908 in Ottawa, IL, which soon moved to Streator, IL, and then a third plant in 1912 in Elmira, NY (41). The company had four Owens machines in 1909, all at the Kane plant, and then four machines at each plant in 1914 (41).

In 1920, Baldwin purchased four rival companies: Essex Glass Co., Travis Glass Co., Lockport Glass Co., and the Woodbury Glass Co. (41). The deal gave Thatcher exclusive rights to the new Hartford-Empire machines for milk bottles, which the acquired companies held (41). This purchase transitioned manufacturing with the Owens machines to press-and-blow machines (41). Date codes studied by Lockhart et al. (41) suggest that Thatcher eliminated use of the Owens machines in 1925 (41). In 1927, Thatcher operated a total of ten continuous tanks with 16 Hartford-Empire feeders (41).

After being reliant on the milk bottles as its only product, Thatcher acquired the capital stock of Olean Glass Co. in 1935 as part of a plan to diversify (41). It acquired complete ownership in 1943 and produced millions of beer bottles at the Olean plant in 1944 (41). In 1946, the company changed its name to Thatcher Glass Mfg. Co. Inc. (41). By 1960, it ranked fifth in the glass container industry, behind Owens-Illinois, Hazel-Atlas, Anchor-Hocking, and Brockway (41). In 1966, the Rexall Drug & Chemical Co. acquired Thatcher (41). In 1981, Dominick & Dominick bought the company and operated it as the Thatcher Glass Corp. In 1985, Thatcher declared bankruptcy, at which time it had six manufacturing plants making beer, beverage, food, and liquor containers (41).

Thatcher Mfg. Co. used a number of marks during its long history (41). Lockhart et al. (41) dated the T. M'F'G. CO. mark to c.1890-1919, and found it on the base, which is where we find it on bottles from Riverview Dairy and Glen Poplar Dairy in Houghton. The mark on these bottles is horizontal with an Owens scar. Lockhart et al. (41) noted that a date code is usually located below this mark in this orientation (41). A similar mark lacks the apostrophes (41).



1923-c.1954
Thatcher Mfg. Co.
Elmira, NY (1889-1957)
New York, NY (1957-1985)

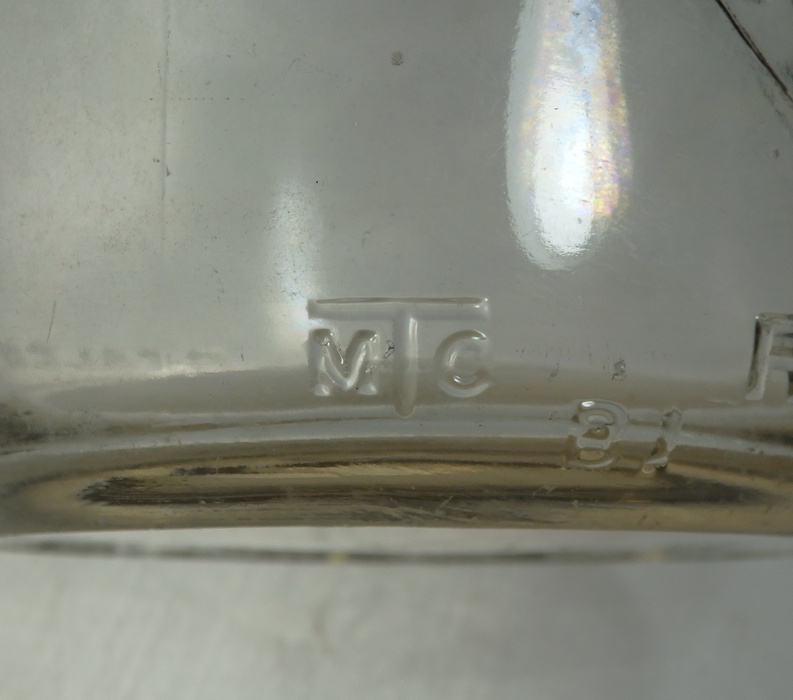

m78
example

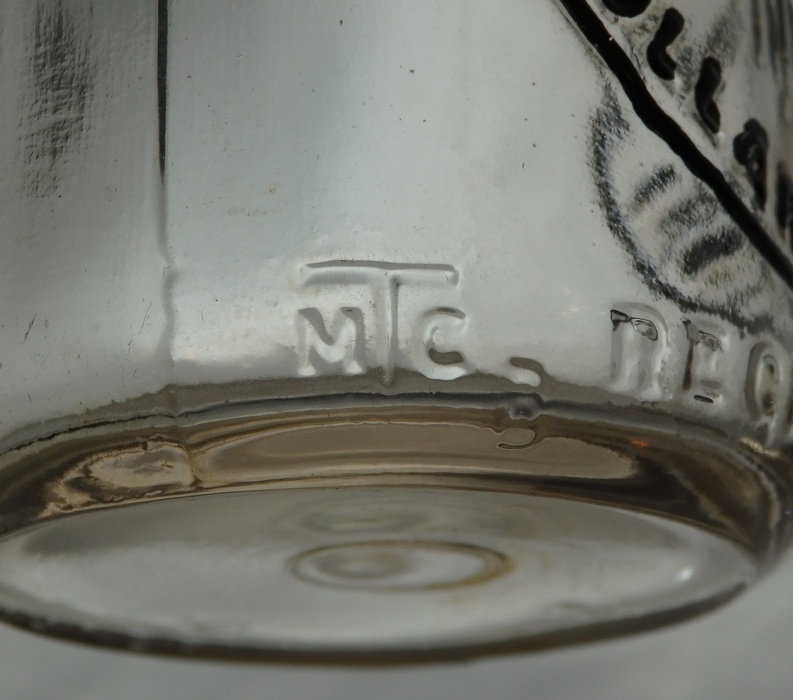

m-81
example

This is the most common mark we find on Copper Country milk bottles.

Lockhart et al. (41) identify this trademark first being used on 01 Aug 1923, and found it on bottles up to at least 1954. It was most often embossed on the heel (41). The bottles were made by press-and-blow machines, with only one known exception that was made with an Owens machine (41). From 1923, the date code appeared inside the valve scar, sometimes with a letter (for plant) between the two numbers or preceding the two numbers (41). From about 1937, the date code was on the base outside the valve scar (41).

Another mark we often find on Copper Country milk bottles is the seal mark. Michigan instituted a seal law in 1915 (41). "SEALED / 14" in a circle plate had 14 as the Thatcher number for Michigan. "1 / MINN" in a triangle plate was Thatcher's seal for Minnesota from 1913 to 1947 (41). It moved from the shoulder to the heel by at least 1940 (41). Thatcher bottles also commonly have "SEALED 1-11-14" on the heel, or "1-7-11-14" on the base (41). This may refer to various glass plants or state designations (41).



1944-1985
Thatcher Mfg. Co.
Elmira, NY (1889-1957)
New York, NY (1957-1985)

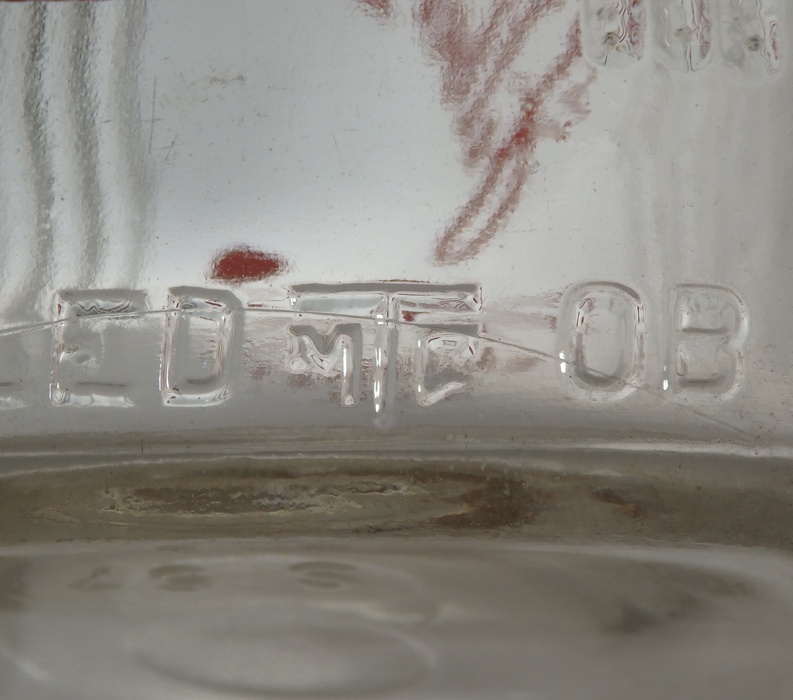

m-122
example

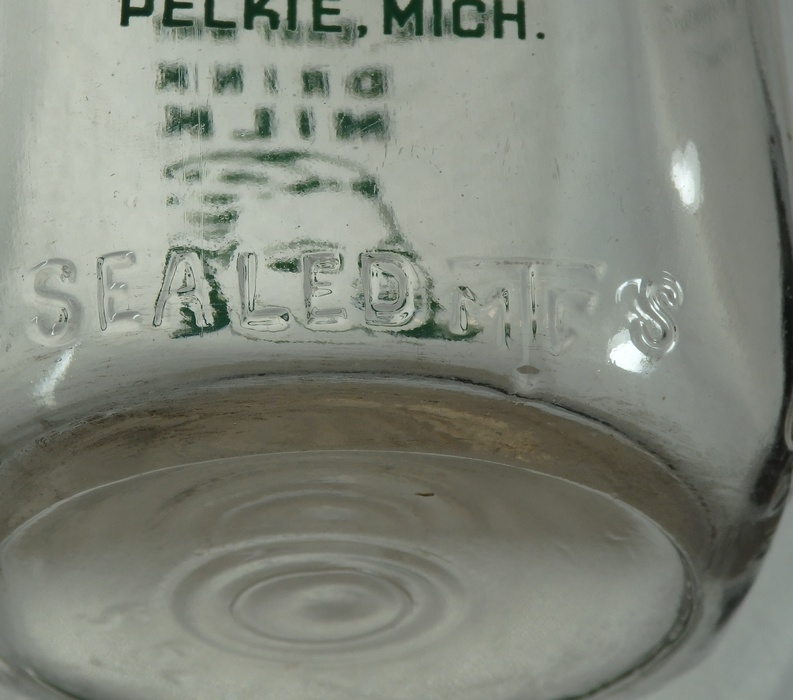

m-46
example

This is a later trademark of the Thatcher Mfg. Co., and we find it on square, ACL-labeled milk bottles.


S TWITCHELL & BRO MRFS.
1885-c.1891
Twitchell, Seldon & Bro.
Philadelphia, PA (1880-1892)

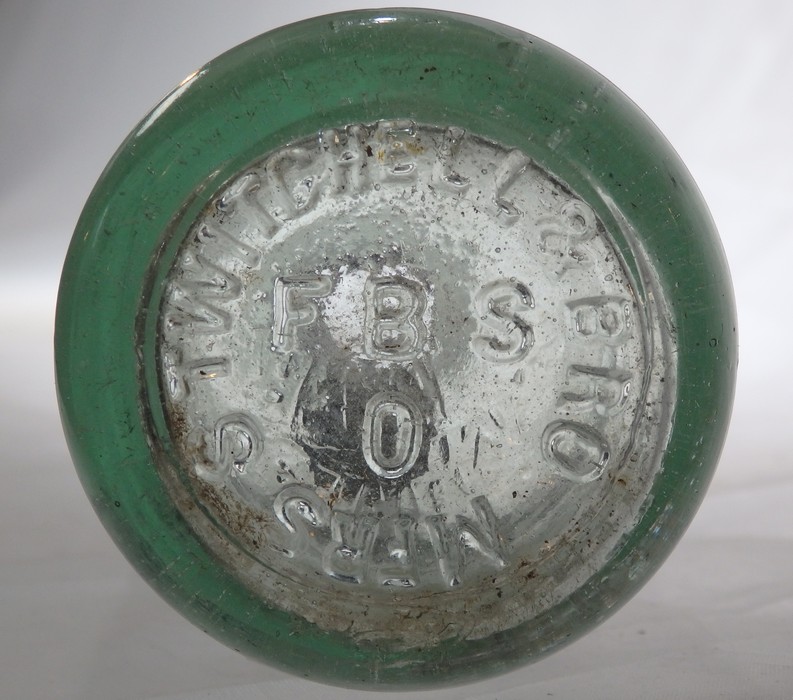

soda #89
example

This mark is associated with bottles using the Twitchell Floating Ball Stopper, for which the Copper Country has two. Lockhart et al. (26) noted that the company was not a glass manufacturer. von Mechow (4) noted that F. B. S. embossed on the base abbreviates Floating Ball Stopper.



c.1890-c.1914
Whitney Glass Works
Glassboro, NJ (1885-1918)

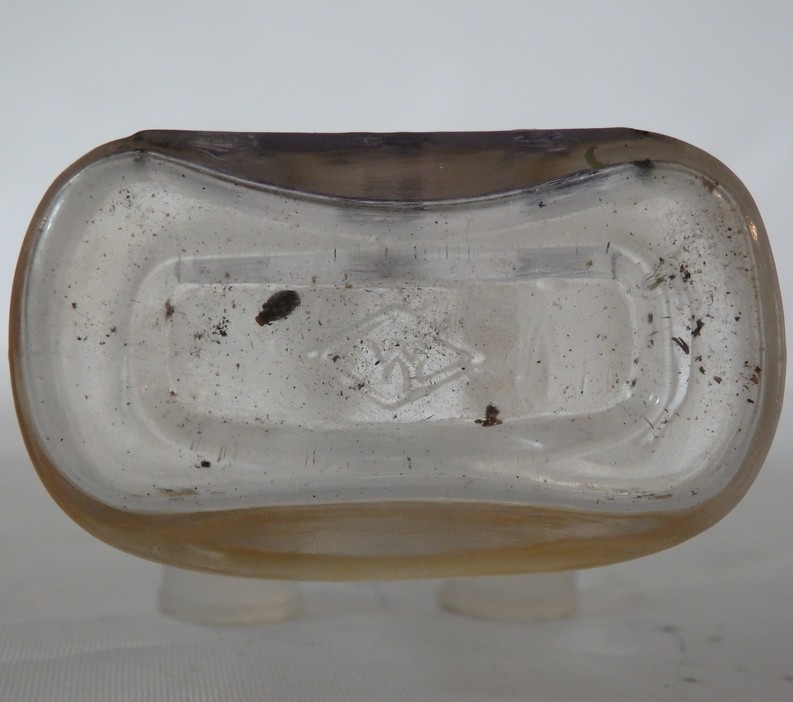

phar. #s25
example

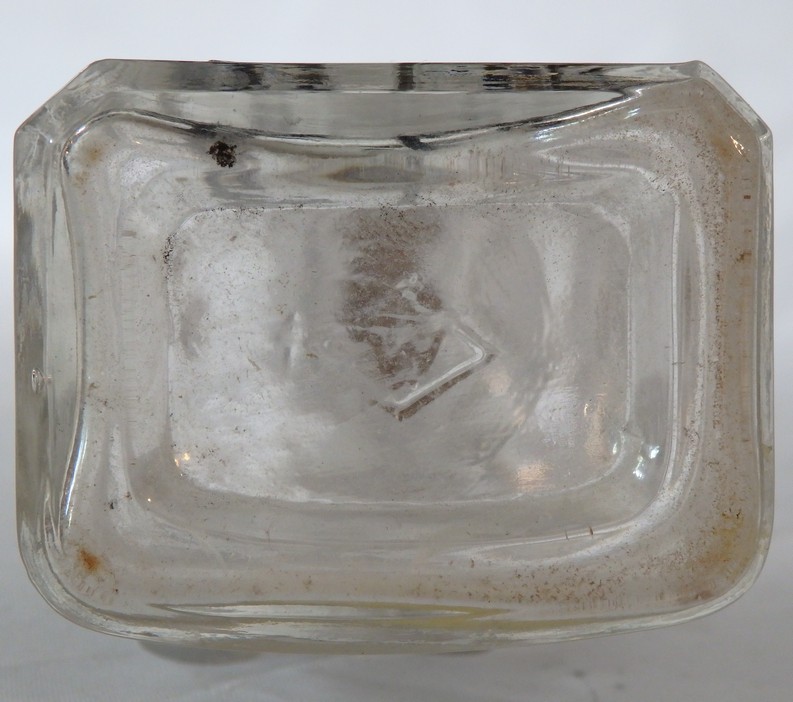

phar. #s27
example
pharmacy: #s25, s27

The W-diamond mark is attributed to Whitney Glass Works (1,2,32). The Whitney Glass Works name was established in 1885, being changed from Whitney Brothers (32). The company operated two plants in Glassboro, NJ. One plant, built in 1779, became known as the Olive Glass Works in 1808 (32). The other plant opened as Harmony Glass Works in 1813 (32). Lockhart et al. (32) noted that mouth blowing ceased in 1913, with all bottles from that point being made by Owens machines. The plants were sold to Owens Bottle Machine Co. in 1918 and the Whitney Glass Works was dissolved (32).

Only two Copper Country pharmacy bottles bear this mark. Based on reports of the mark, Lockhart et al. (32) estimated a usage range of c.1890-c.1914.


W. B. M. CO.
1901-c.1931
Western Bottle Manufacturing Co.
Chicago, IL (1900-c.1931)

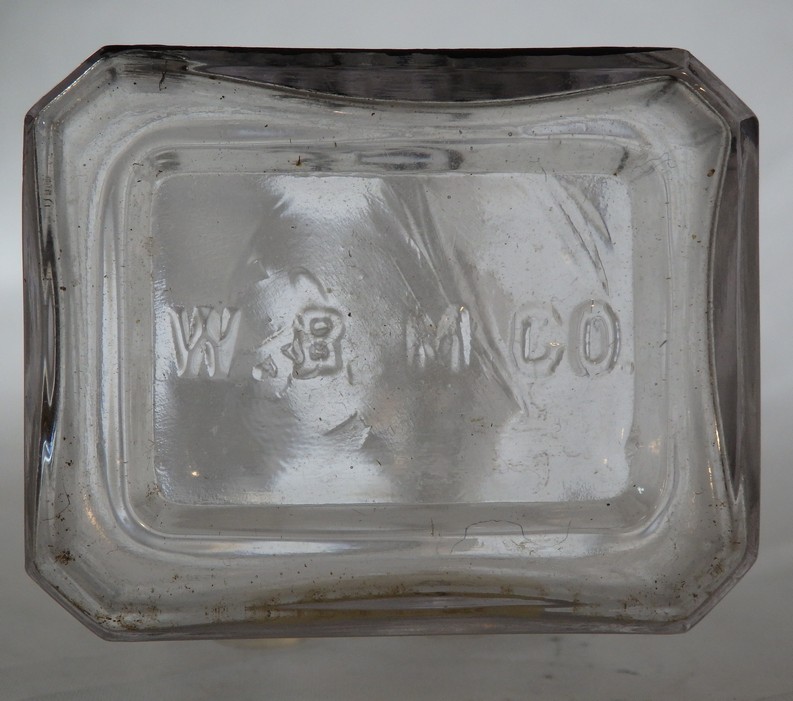

phar. #12
example

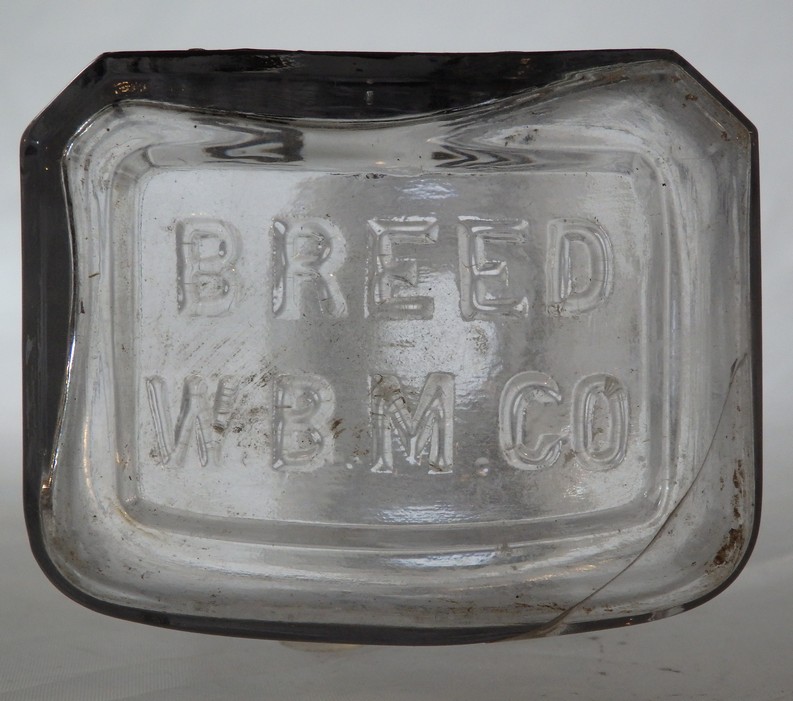

phar. #15
example
pharmacy: #12, s32, 13 , 15, s38, s72

Lockhart et al. (33) identified Western Bottle Manufacturing Co. as a distributor, probably of Marion Flint Glass Co. and Sheldon-Foster Glass Co., not a glass manufacturer itself. The company was incorporated in Dec 1900, and thus Lockhart et al. (33) suspected they probably did not start selling bottles until the following year. They noted that the company closed in 1931 or shortly thereafter as result of the Great Depression.

Lockhart et al. (33) cited accounts of the W. B. M. CO. mark occurring by itself on mouth-blown, embossed pharmacy bottles, and noted that they have found no example of it occurring on generic, machine-made bottles. With the Copper Country bottles bearing this mark (#12, 13) being mouth-blown, we can narrow the date range to 1901-c.1920.

We also have Copper Country bottles (#15, s32) with BREED accompanying the W. B. M. CO. mark. BREED refers to the bottle style, and it was probably named after its creator, R. E. Breed, although the shape was apparently not patented (33). Based on empirical evidence, Lockhart et al. (33) narrowed the date range for the BREED mark to 1901-c.1908.


W. B. MFG. CO.
1901-c.1931
Western Bottle Manufacturing Co.
Chicago, IL (1900-c.1931)

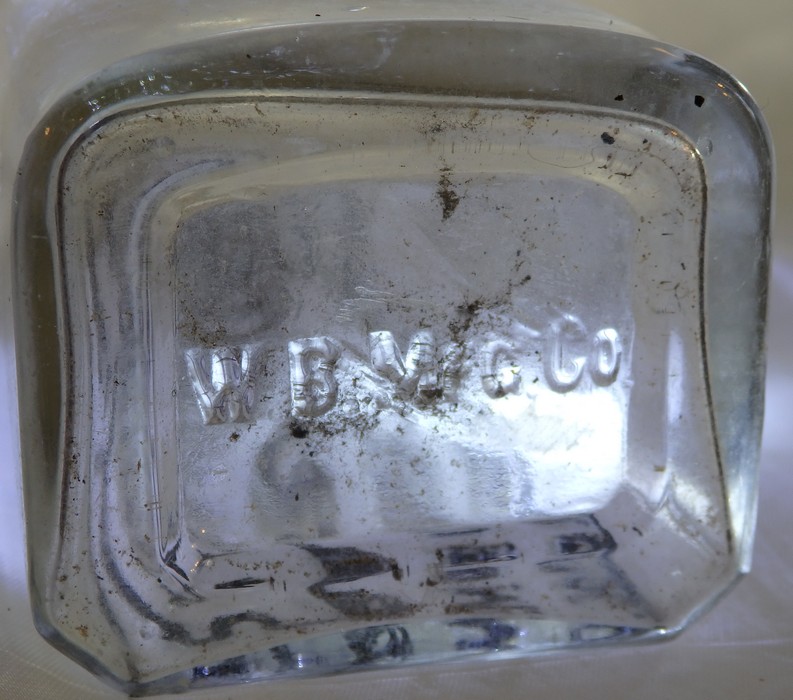

phar. #13
example
pharmacy: #13

For the 8 oz. size of Superior Pharmacy #13, we find a variation of the Western Bottle Manufacturing Co. mark, one with MFG. instead of M. This variation was not listed in Lockhart et al. (33). Because the 4 oz. size of the same bottle has the M. B. M. CO. mark, we suspect the two marks to have the same date range.


W F & S MIL
1898-1921
William Franzen & Son
Milwaukee, WI (1898-1921)

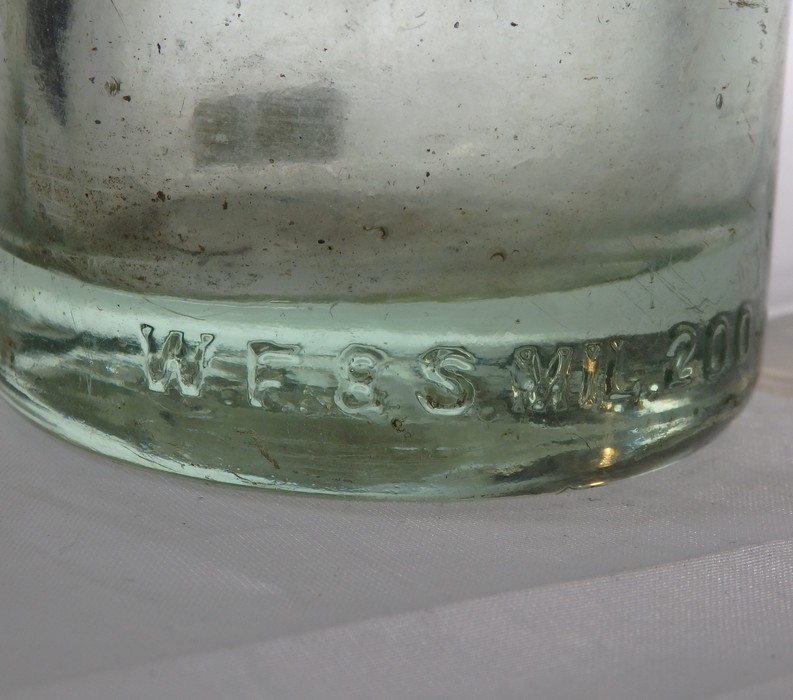

soda #30b
example

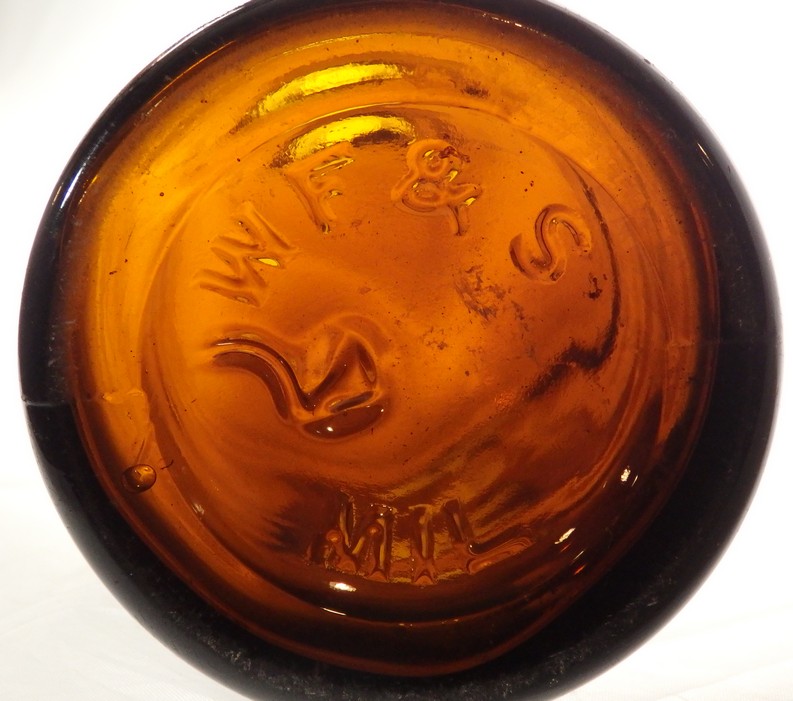

beer #85
example
beer: #85, abm-28
soda: #30b, 114

The story of the twin Milwaukee glass plants of Chase Valley Glass Co. continued after the bankruptcy of Cream City Glass Co. The site was next operated by Northern Glass Co. (1894-1896) and Northern Glass Works (1896-1898) (19), but no Copper Country bottles bear their marks. William Franzen, one of the three that incorporated the Northern Glass Works, took on his son as a partner in Sep 1898, forming William Franzen & Son as owners of Northern Glass Works (19). In Nov 1899 the factory was destroyed by fire and without sufficient funds to rebuild, the company was incorporated in Jun 1900 (19), which is often the start date given (such as by 1,2) to William Franzen & Son. The company used Johnny Bull semiautomatic machines by 1909 (19). William Franzen died in 1911 or 1912 (19). The factory primarily made beer bottles, so Prohibition brought its downfall and the corporation was dissolved in Dec 1921 (19).

The Copper Country has three hand-blown bottles and one ABM bottle with the W F & S mark. Lockhart et al. (19) noted that the factory used machines exclusively by 1913, so we can narrow the date range for mouth-blown bottles to 1898-c.1912. They noted that both applied and tooled finishes were used throughout the hand-blown age for different types of tops, including Baltimore loop seal, Hutchinson, and crown tops. Thus, the type of finish does not help with dating for this company. They described different configurations of the mark, but the ones found on our Copper Country bottles were not part of their classification.


5W
1911-1927
Winslow Glass Co.
Matthews, IN (1898-1905)
Columbus, OH (1902-1927)

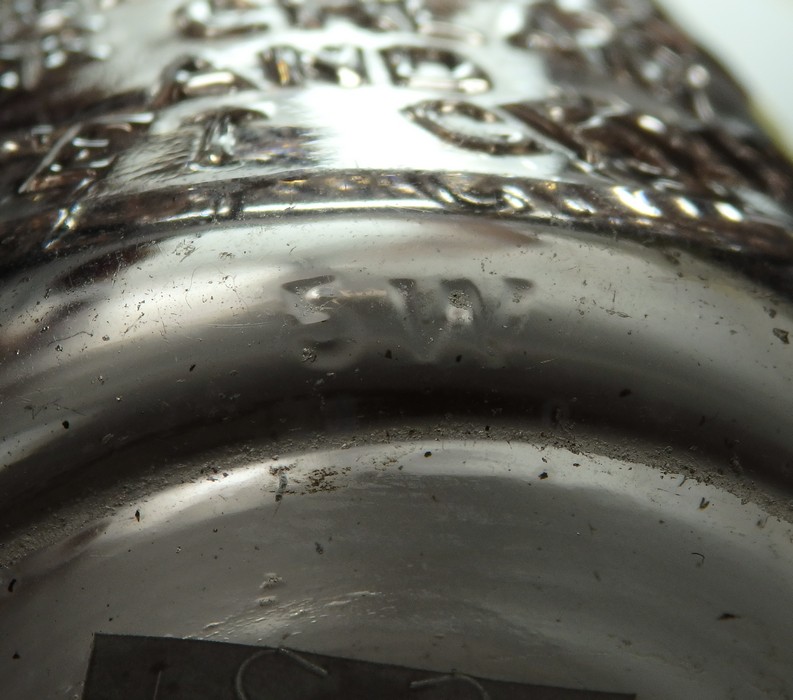

m-110
example

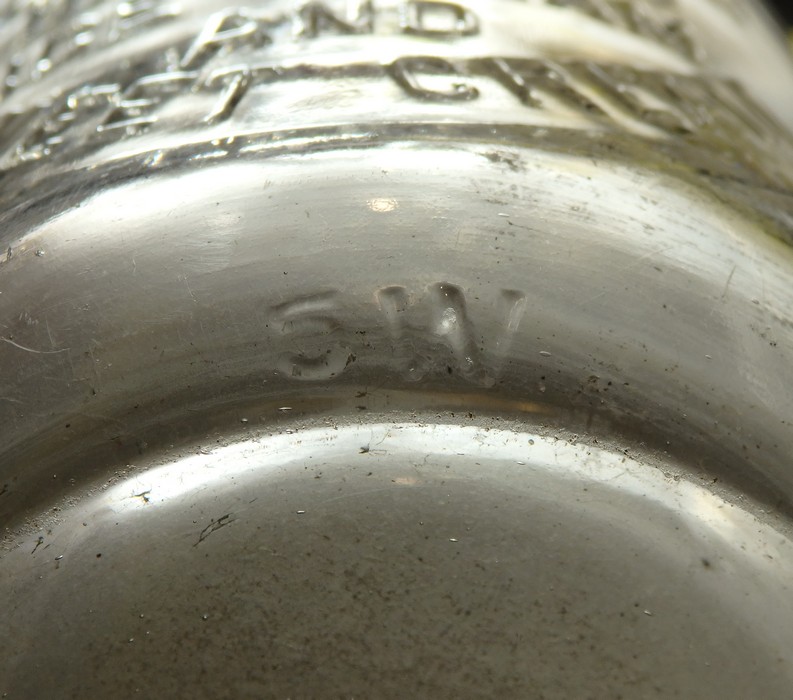

m-111
example

In 1889, Palmer Winslow and his mother, Hannah Winslow, gave up their share of Fairmont Glass Works in Fairmont, IN and started their own business, the Winslow Glass Co. in Matthews, IN (45). They incorporated the company with H. P. Henshaw in Sep 1898 and opened the plant in Feb 1899, making miscellaneous glass containers (45). The company opened a branch in Columbus, OH in 1902, Hannah died in 1904, and the Matthews plant ceased operations probably in 1905 (45). Fire destroyed the Columbus plant in May 1905, but it was rebuilt and operational again by Sep (45).

Winslow converted the plant to manufacturing milk bottles around 1906 (45). The plant was dependent on producing bottles for the Peruna Co., but sales dropped after Peruna was criticized as being a substitute alcoholic beverage and the Pure Food & Drug Act of 1906 required full disclosure of its alcohol content (45). Initially, bottles were made by hand, and then by machine from 1909 (45). The machines were Teeple-Johnson semiautomatic machines which were eventually converted to fully-automatic machines (45). The plant became more and more reliant on milk bottle production, especially as the health boards of many cities were passing laws requiring milk to be sold only in bottles (45).

The plant produced primarily milk bottles by 1912, and perhaps exclusively milk bottles by 1918 (45). Ads in 1924 focused on quality of the glass (45). They showed a bottle being cut in half with a saw to illustrate the uniformity of glass, and testing the strength of the glass with a steel hammer (45).

After a 16-month illness, Palmer Winslow died on 25 Apr 1927 (45). On 01 May 1927, his heirs sold the company to Berney-Bond Glass Co. (45). The plant continued to make milk bottles for Berney-Bond and then for Owens-Illinois Glass Co. after they acquired the plant in 1930 (45).

The 5W mark is one of the marks of the Winslow Glass Co., as evidenced by Winslow registering it for use on Wisconsin milk bottles in 1913 (45). Numbers accompanying the mark can appear in the ejection scar or the heel, but Lockhart et al. (45) could not conclusively determine which one, if either, is a date code.



1912-1927
Winslow Glass Co.
Matthews, IN (1898-1905)
Columbus, OH (1902-1927)

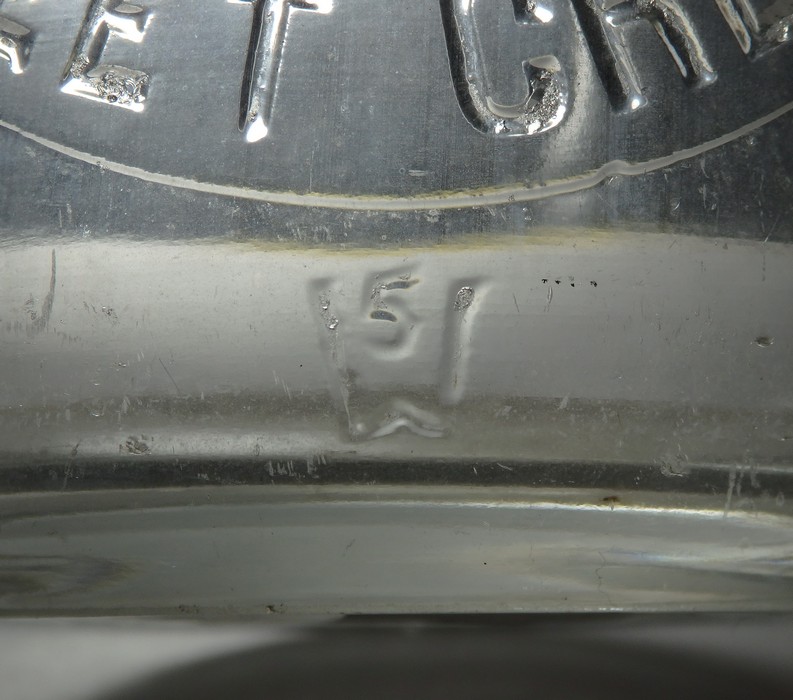

m-113
example
milk: m-31, m-33, m-113

This mark from Winslow Glass Co. was used concurrently with their 5W mark (45). It may have been the earlier mark and it was certainly used until 1927, when the company was sold to Berney-Bond Glass Co. (45). It also appears with the BB 48 mark from Berney-Bond, indicating that it was probably used until the molds wore out (48). We also find this mark within the seal on some Copper Country milk bottles.


W. T. & CO.
1870s-1901
Whitall Tatum & Co.
Millville, NJ (1857-1900)

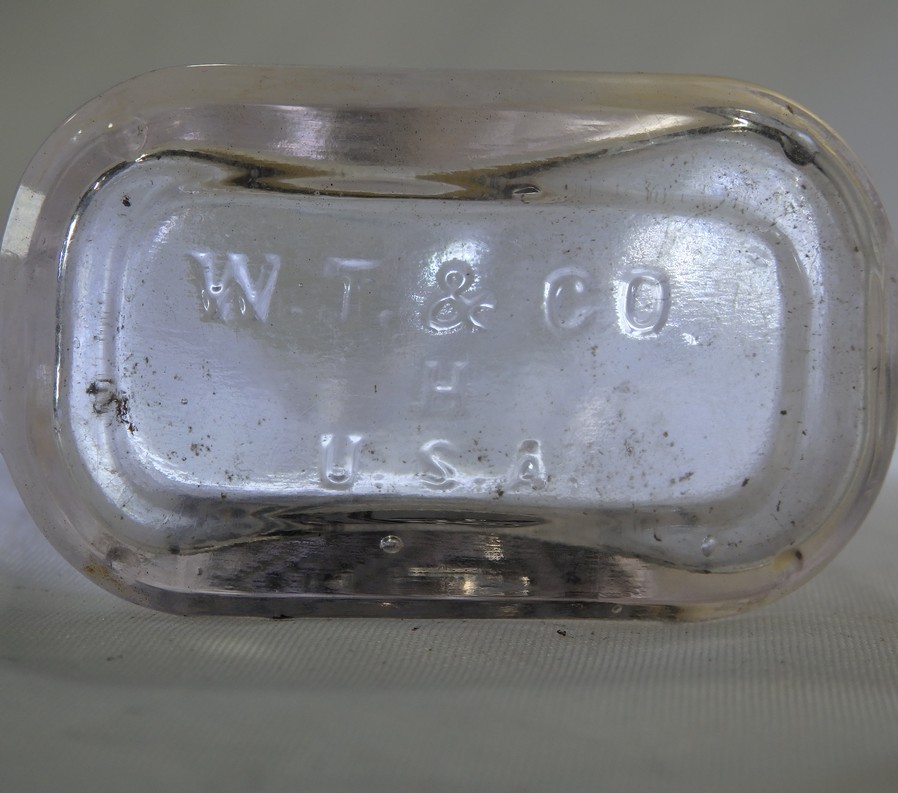

phar. #26
example

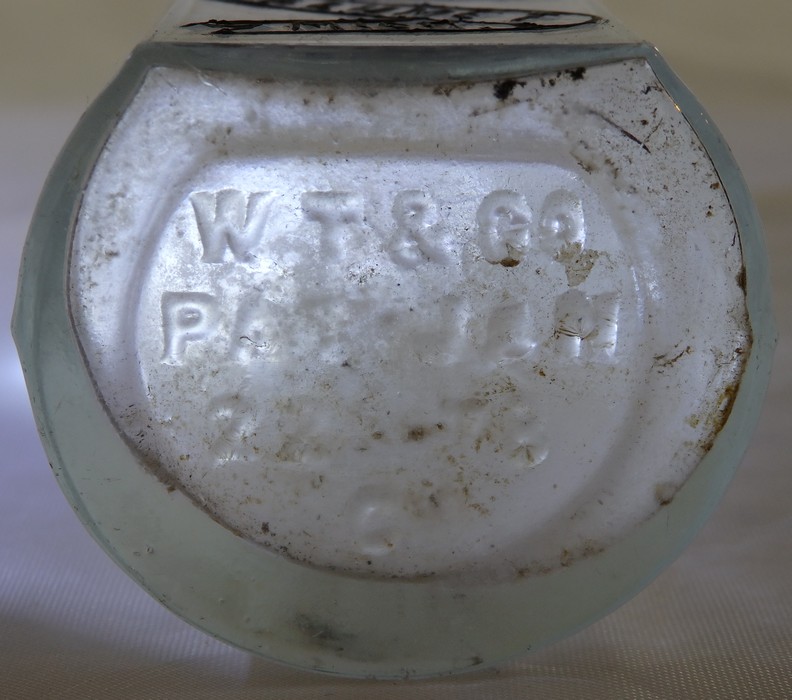

phar. #31
example
pharmacy: #26, 28, 29, 31, s53, s71, s73, s74, s75

The original factory in Millville, NJ was established in 1806 (34). Whitall Tatum & Co. was a continuation of a long succession line of company names. Their plants were called the Phoenix Flint-Glass Works and Phoenix Green-Glass Works (34). In 1886, it was the largest glass operation in the U.S. (34). The company incorporated as Whitall Tatum Co. in Jan 1901 (35).

Lockhart et al. (34) noted that Whitall Tatum & Co. patented at least 10 designs for pharmacy bottles, and listed the names of the bottle styles and their patent dates. They identified different configurations of the mark and attributed more specific dates to them. Bottles with just the W. T. & CO. mark (often with a patent date), like Macdonald Pharmacy #31, were dated to mid-1870s-c.1890, but most commonly 1880-1890. Bottles with a letter or number below the W. T. & CO. mark, like M. Printz #28 and #29, were dated to c.1880-1895, but most commonly 1885-1895. Bottles with the W. T. & CO. mark with a letter or number below it and then U.S.A. below the letter or number, like C.J. Sorsen #26, 2 oz. size, were dated to c.1890-1901. Bottles with the W. T. & CO. mark with a letter and U.S.A. below it in one line, like C.J. Sorsen #26, 4 oz. size, were dated to c.1890-1894.


W. T. CO.
1901-1924
Whitall-Tatum Co.
Millville, NJ (1901-1938)

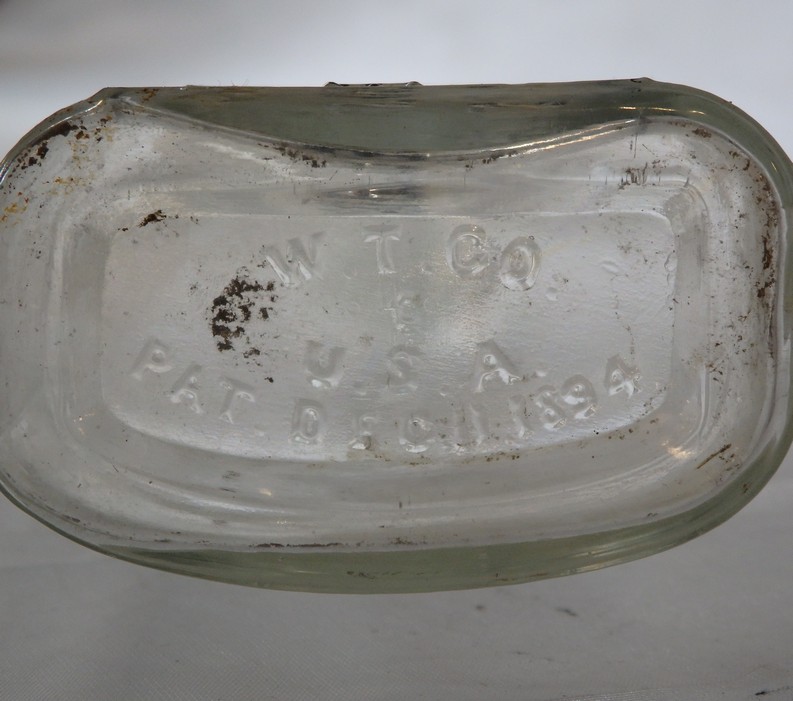

phar. #11
example

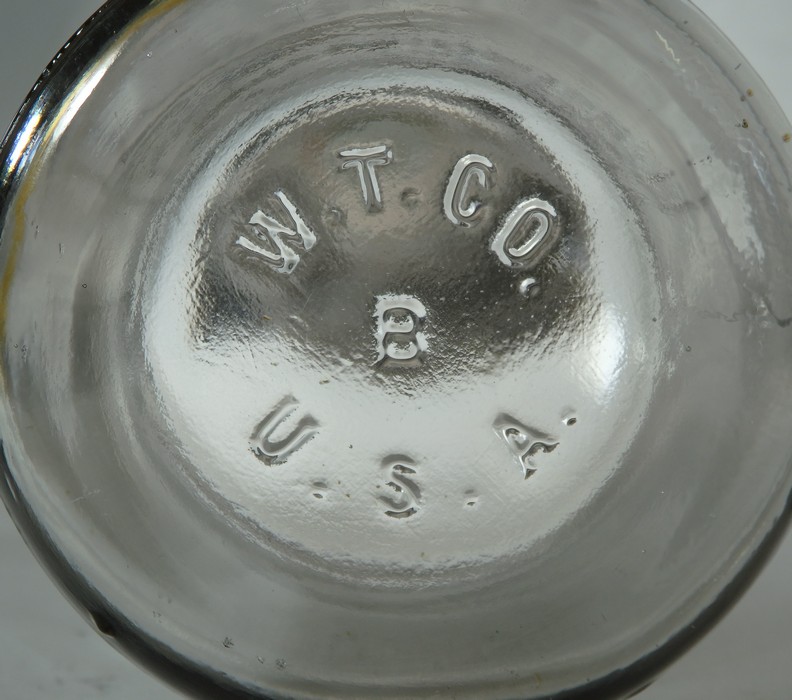

phar. #7
example
pharmacy: #7, 11, s56a, s68

Whitall Tatum & Co. was incorporated as Whitall Tatum Co. in Jan 1901 (35). They had a semiautomatic machine for narrow-mouth bottles operational by 1912, and Lockhart et al. (35) reasoned, based on company ads, that mouth-blowing bottles ceased by 1925. The company was purchased in June 1938 by Armstrong Cork Co., who later sold it to Kerr Glass Mfg. Co. in Apr 1969.

Similar for Whitall Tatum & Co., Lockhart et al. (35) identified different configurations of the mark and assigned more specific dates to each. Bottles with a letter or number and U.S.A. in two lines below the W. T. CO. mark, like Geo. H. Nichols #7, were dated to 1901-c.1924. Bottles with U.S.A. below the W. T. Co. mark (sometimes with a patent date below U.S.A.), like Nichols #11, were dated to 1901-c.1905.


WIS G Co MILW
1881-1886
Wisconsin Glass Co.
Milwaukee, WI (1881-1886)

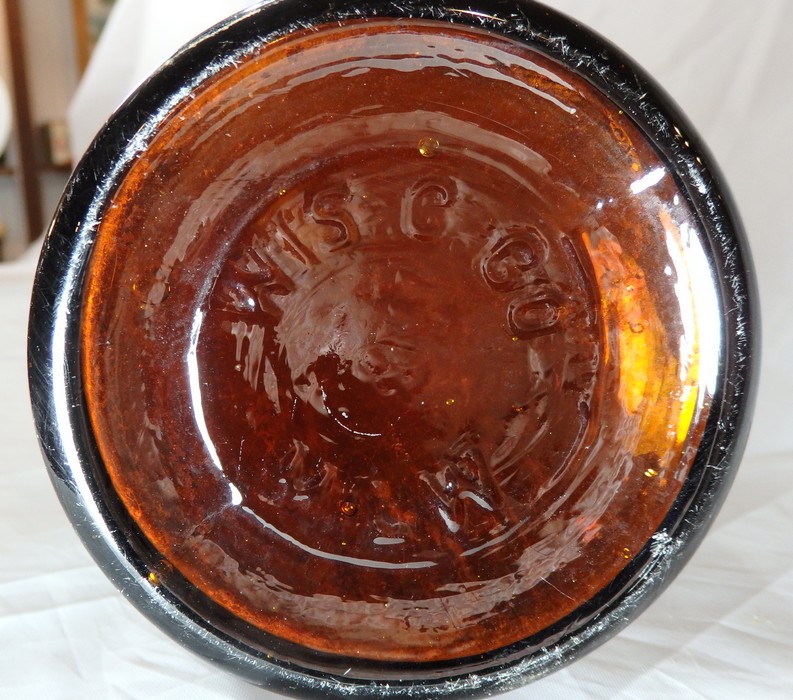

beer #62
example
beer: #42, 61, 62

Chase Valley Glass Works No. 1 and No. 2 merged in Aug 1881 to form Wisconsin Glass Co. (15). Reportedly due to costs, over-diversification, and a series of strikes, the factory closed in 1886 (15). The factory later reopened in 1888 with new partners as the Cream City Glass Co. (15).

Wisconsin Glass Company operated for only five years, which allows us to date its bottles to a narrow range. The Copper Country has three beer bottles with this specific mark, two from A. Haas Brewing Co. and one from Union Brewery.


WIS. G. Co
1881-1886
Wisconsin Glass Co.
Milwaukee, WI (1881-1886)

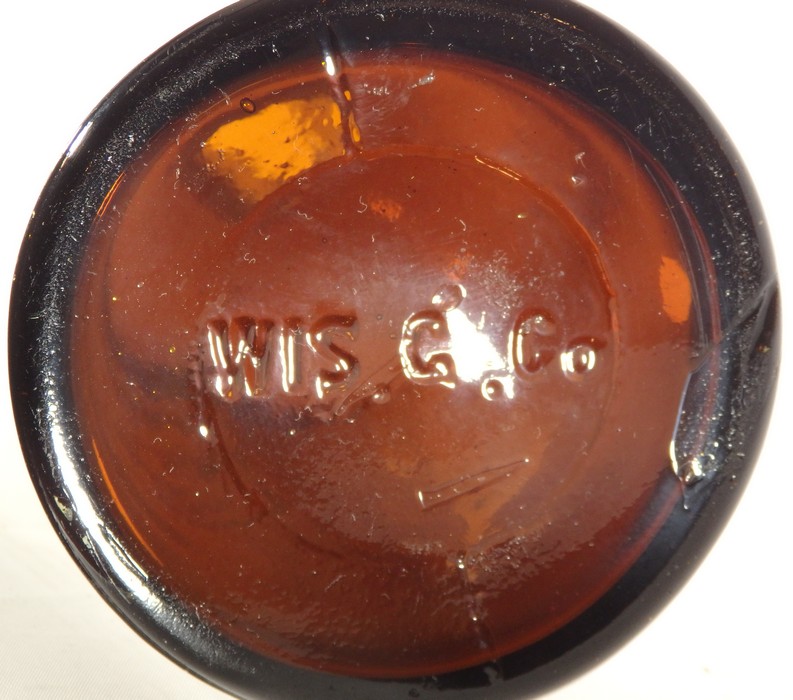

soda-s45
example
soda: #s45

This is a variation of the Wisconsin Glass Company mark, one without MILW as part of the mark.


WIS. GLASS Co. MILW
1881-1886
Wisconsin Glass Co.
Milwaukee, WI (1881-1886)

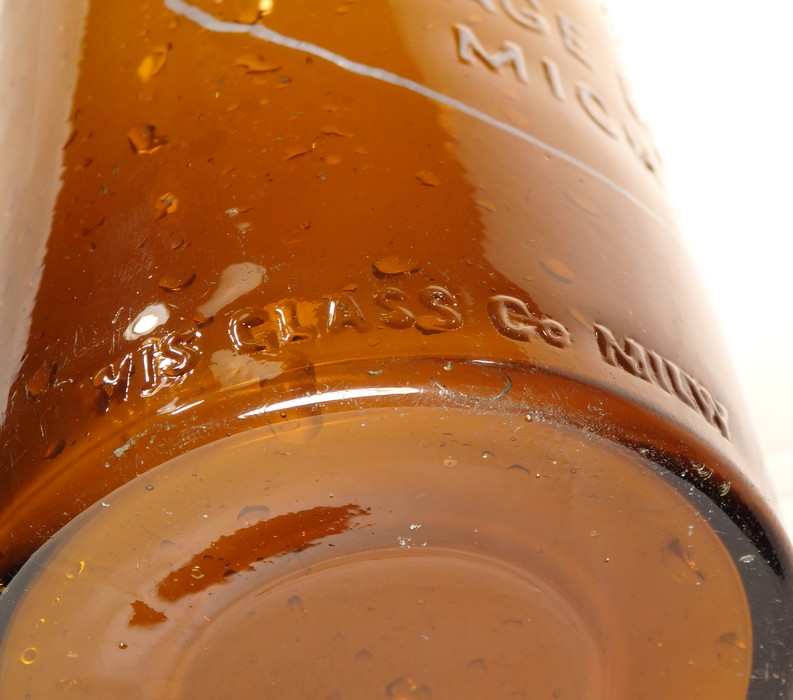

beer-34
example
beer: #34

The WIS. GLASS Co. MILW mark is another mark from Wisconsin Glass Company we find on a Copper Country bottle: lightning-stoppered Union Brewery #34. This bottle bears the mark on its front heel, an atypical location for a marker's mark.

Lockhart et al. (15) studied the variation in marks and hypothesized that the ones with "glass" abbreviated as "G" were from one factory and the ones with "glass" embossed as "GLASS" were from the other factory. But they found no way of knowing which mark came from which factory, if that was in fact the case.


Bottle Production

The bottle makers that supplied the Copper Country were distant from the Copper Country itself, with the nearest factory being in Milwaukee, WI. They were mostly located in the Northeast and lower Midwest. Bottles had to be transported 330 to over 1,100 miles to reach the Copper Country. Lockhart et al. (12) shed light on the locations of early glass operations. Glass factories started on the east coast where people initially settled and population grew, and spread with western migration in the 18th century. Fuel was a major limiting factor. Factories initially used wood until forests were denuded, and then they turned to coal and natural gas. Given the coal and natural gas reserves in the Ohio Valley region, it makes sense that many factories established there.

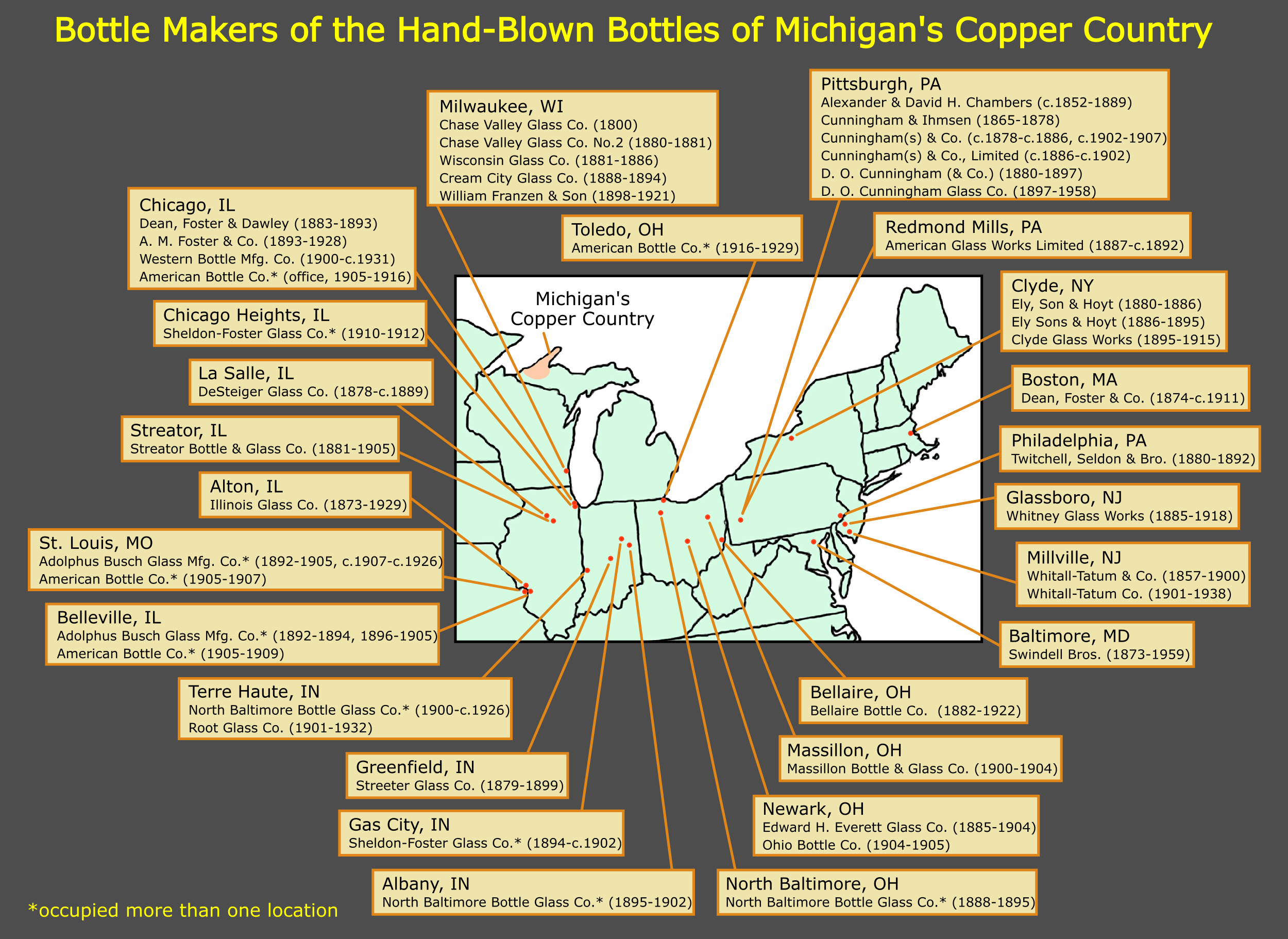

map of bottle makers

Many Copper Country bottlers purchased bottles from various bottle makers. Jos. Bosch, for example, used bottles from C & I, C & Co., E. SON & H, E S & H, C. C. G. Co., CLYDE GLASS WORKS, N B B G Co., S B & G Co., and A B Co. Such an extensive list of suppliers may be expected for a long-lived brewer like Bosch that outlived many of the bottle makers. Plus, some maker's marks represented changes in company names for the same operation. But even for a given time period, we find examples for which different makers were used to produce bottles of similar design and embossing (e.g., A. Haas #69 and #75 and their variants). The reasons why are unknown. Did bottlers have difficulty getting a sufficient supply of bottles? Were bottlers switching makers to get the best price or glass quality?

Another consideration for obtaining a supply of bottles is that glass factories routinely shut down for about two months during the summer and bottlers had to order in advance. The Illinois Glass Co. 1906 catalog stated, "Nearly all glass factories close from Jul 1st to about Sep 1st, on account of the summer heat and for needed repairs of furnaces. Thousands of dollars are lost every summer by those who have failed to properly anticipate their needs for special wares."

Glass company catalogs show the diversity of bottles available to bottlers for customization, production, and purchase (see Illinois Glass Co. 1906 catalog on Bill Lindsey's site and Illinois Glass Co. 1903 catalog and North Baltimore Bottle Glass Co. c.1900 catalog on von Mechow's site). They show that the unit for ordering was a gross (12 dozen = 144 bottles). For example, a gross of 2 oz. Philadelphia Oval pharmacy bottles in the Illinois Glass Co. 1906 catalog costs $7.00 (p. 27). The North Baltimore Bottle Glass Co. c.1900 catalog stated, "Be sure to state the quantity in gross lots you desire..." (in Introductory). If this was the standard practice for bottle makers, each bottle should have had at least 144 copies. The recovery of some local bottles with zero to only a few intact examples speak to the likelihood that sometimes only the minimum order was placed.

The catalogs show that beer and soda mold shapes could be fitted with different types of tops. The North Baltimore Bottle Glass Co. c.1900 catalog stated, "We finish our bottles in Crown cork, seal, aluminum, or Hutchinson stopper, export cork, etc. etc." (in Introductory). The Illinois Glass Co. 1906 catalog specified the tops available for each mold. The pattern is that tall-necked molds could be topped for a cork, lightning stopper, Baltimore loop seal, crown top, or with limited molds, a Hutchinson stopper. Short-necked molds were primarily for the Hutchinson stopper, but could also be finished for a Baltimore loop seal or cork and wire. For the Copper Country, we find examples of different tops on otherwise similar or identical bottles:

  • Lightning Top vs. Baltimore Loop Seal Top: Torch Lake Brewery #5 vs. #6, Torch Lake Brewery #4 vs #7, A. Haas Brewing Co. #61 vs. #68, A. Haas Brewing Co. #64 vs. #s67
  • Lightning Top vs. Double-ring Lightning Top: A. Haas Brewing Co. #61 vs. #62
  • Double-ring Lightning Top vs. Baltimore Loop Seal Top: A. Haas Brewing Co. #63 vs. #65
  • Baltimore Loop Seal Top vs. Cork Top: Scheuermann Brewery #56 vs. #55
  • Baltimore Loop Seal Top vs. Crown Top: A. Haas Brewing Co. #69b vs. #79, Calumet Branch #128 vs. #129, Sterling Spring Mineral Water Co. #48 vs. #s70
  • Cork Top vs. Crown Top: A. Hass Brewing Co. #76a vs. #81

Most of the bottle makers produced both aqua and amber glass, with colorless later becoming the standard for machine-made bottles.

The 1903 and 1906 Illinois Glass Company Catalogs stated, "All sodas made in green glass, unless otherwise ordered." (Note that "green" is known as aqua today.) This confirms the observation that aqua was the standard color for mouth-blown soda bottles. Accordingly, we find that most Copper Country soda bottles were aqua with a few being amber or colorless and one being cobalt blue. The North Baltimore Bottle Glass Co. c.1900 catalog stated, "Don't fail to mention color wanted, whether light green or amber..." (In Introductory). It offered a selection of "quart champagne-shaped bottles" separate from "pint champagne-shaped beer bottles". The availability of such multi-use bottles and choice of color explains the occurrence of amber bottles from Sterling Spring Mineral Water Co. (#47, 48, 49, 49a, 49b), Calumet Bottling Works (#s16), South Range Bottling Works (#s46), and Copper City Bottling Works (#143, 144). The colorless and cobalt blue bottles were probably special orders.

The Illinois Glass Co. 1906 catalog stated, "green or amber glass" for their export beers and "green, amber, or flint" for their champagne beers. (Note that "export" and "champagne" specify shapes with "export" having a swelling in the neck (36)). Despite the choice of color, amber was the standard color for Copper Country beers, with some of the earliest ones being aqua and some of the later export or select beers being aqua or colorless.

We find a few examples of Copper Country beer or soda bottles that have the same plate and bottle shape, but were made with a different glass color.

  • Aqua vs. Amber: Torch Lake Brewery #s1 vs. #2, Torch Lake Brewery #1a vs. #s2, Calumet Brewing Co. #96 vs. #99, Sterling Spring Mineral Water Co. #47 vs. #s44, Sterling Spring Mineral Water Co. #50 vs. #s70
  • Amber vs. Olive Green: Torch Lake Brewery #3 vs. #3b, Torch Lake Brewery #9 vs. #9a, Torch Lake Brewery #14 vs. #14a, Union Brewery #32a vs. #32b

All but one of the Copper Country pharmacy bottles are colorless. Their makers were a different set of glass companies and factories than the ones that produced beer and soda bottles. Their histories show that they specialized in flint glass production. Lindsey (3) noted that flint glass was the name given to colorless glass produced with low-iron sand. The Illinois Glass Co. 1906 catalog listed its pharmacy bottles under "Flint Glass Bottles and Wares".

Having a customized embossing plate allowed the bottle maker to make an order of bottles and then save the plate for a later order. With a subsequent order, the bottler could have selected a mold that differed in shape or generic embossing (e.g., THIS BOTTLE NOT TO BE SOLD or REGISTERED), as shown in the catalogs. The bottler could have added or removed a customized base marking. The glass factory could have used a mold that had or lacked a maker's mark. The glass factory could have been using a different batch of glass that differed in shade of color. We find examples of Copper Country bottles that have the same plate but evidently were ordered and produced at a different time due to differences in mold shape, mold embossing, and/or shade of glass color.

  • Torch Lake Brewery #s1 has a taller body and greener aqua vs. #1.
  • Torch Lake Brewery #2 has a taller body and darker amber vs. #s2.
  • Union Brewery #s33 has a taller body and lighter amber vs. #41.
  • Torch Lake Brewery #12a has REGISTERED vs. #12 that has THIS BOTTLE NOT TO BE SOLD.
  • Calumet Brewing Co. #84 has REGISTERED vs. #83 that does not.
  • Jos. James Bottling Works #82a has J as a base mark and a lighter aqua vs. #82.
  • Jos. James Bottling Works #83 has a maker's mark and darker aqua vs. #83a.
  • Sterling Spring Mineral Water Co. #50 has a base mark vs. #48 which does not.
  • Upper Peninsula Bottling Co. #101 has a maker's mark and no base mark vs. #101a.
  1. Toulouse, J. H. 1971. Bottle Makers and Their Marks. Thomas Nelson Inc.
  2. Whitten, D. accessed in 2021. Glass Bottle Marks. glassbottlemarks.com
  3. Lindsey, B. accessed in 2021. Historic Glass Bottle Identification & Information Website. sha.org
  4. von Mechow, T. accessed 2021. Soda & Beer Bottles of North America. http://www.sodasandbeers.com
  5. Lockhart, B., P. Schulz, B. Schriever, C. Serr, and B. Lindsey. 2013. Bellaire Bottle Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/Bellaire.pdf
  6. Lockhart, B., C. Serr, B. Schriever, and B. Lindsey. 2013, revised 2021. The glass factories and bottles of Alexander and David H. Chambers. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/A&DHChambers.pdf
  7. Lockhart, B., P. Schulz, C. Serr, and B. Lindsey. 2013. The Adolphus Busch glass factories. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/AdolphusBusch2.pdf
  8. Lockhart, B., P. Schulz, B. Lindsey, C. Serr, D. Whitten, and B. Schriever. 2013. The American Bottle Co.: A study in contrasts and contradictions. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/AmericanBottleCo.pdf
  9. Schulz, P., B. Lockhart, C. Serr, B. Schriever, and B. Lindsey. 2017. Massillon Bottle & Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/MassillonBottle&Glass.pdf
  10. Lockhart, B., B. Schriever, B. Lindsey, and C. Serr. 2015. Newark Star and the Everett factory. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/Everett.pdf
  11. Lockhart, B., B. Schriever, B. Lindsey, and C. Serr. 2019. Streater Bottle & Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/StreatorBottleGlassCo.pdf
  12. Lockhart, B., P. Schulz, B. Schriever, C. Serr, and B. Lindsey. 2013. American Glass Works, Ltd. and American Glass Works, Pittsburgh. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/AmGWPittsburgh.pdf
  13. Lockhart, B., B. Schriever, B. Lindsey, and C. Serr. 2014. Cunningham family glass holdings. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/Cunningham.pdf
  14. Lockhart, B., B. Schriever, C. Serr, and B. Lindsey. 2014. Chase Valley Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/ChaseValleyGlass.pdf
  15. Lockhart, B. B. Schriever, B. Lindsey, C. Serr, and B. Brown. 2020. Wisconsin Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/WisconsinGlassCo.pdf
  16. Lockhart, B., B. Schriever, B. Lindsey, and C. Serr. 2014. A marked coincidence: The CCGCo logo of the Colorado City Glass Co. and Cream City Glass Co. Part 2 - Cream City Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/CreamCity.pdf
  17. Schriever, B., B. Lockhart, C. Serr, and B. Lindsey. 2014. A marked coincidence: The C.C.G.CO. logo of the Colorado City Glass Co. and Cream City Glass Co. Part 1 - Colorado City Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/ColoradoCityGlass.pdf
  18. Lockhart, B., B. Schriever, B. Lindsey, and C. Serr. 2018. Northern Glass Works and Northern Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/NorthernGlassWorks.pdf
  19. Lockhart, B., B. Schriever, B. Lindsey, C. Serr, and B. Brown. 2020. William Franzen & Son. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/WilliamFranzen&Son.pdf
  20. Lockhart, B., B. Schriever, C. Serr, and B. Lindsey. 2014. Clyde Glass Works. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/ClydeGW.pdf
  21. Lockhart, B., C. Serr, B. Schriever, and B. Lindsey. 2015. De Steiger Glass Co. and the "twister" blowers. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/DSGCo.pdf
  22. Lockhart, B., P. Schulz, B. Schriever, B. Lindsey, and C. Serr. 2016. Illinois Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/IGCo.pdf
  23. Lockhart, B. B. Schriever, B. Lindsey, and C. Serr. 2018. North Baltimore Bottle Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/NorthBaltimore.pdf
  24. Lockhart, B., B. Schriever, B. Lindsey, and C. Serr. 2019. Root Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/RootGlass.pdf
  25. Lockhart, B., B. Schriever, B. Lindsey, and C. Serr. 2019. Other S marks. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/SOther.pdf
  26. Lockhart, B., B. Lindsey, C. Serr, P. Schulz, and B. Schriever. 2021. Manufacturer's marks and other logos on glass Containers. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/SLogoTable.pdf
  27. Lockhart, B., B. Schriever, B. Lindsey, and C. Serr. 2015. The Dean and Foster companies. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/DeanFoster.pdf
  28. Lockhart, B., B. Schriever, B. Lindsey, C. Serr, and B. Brown. 2013, revised 2021. A.M. Foster & Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/AMFoster.pdf
  29. Lockhart, B., B. Schriever, B. Lindsey, and C. Serr. 2019. The Sheldon-Foster Glass Co. and related companies. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/Sheldon-FosterGlass.pdf
  30. Lockhart, B., B. Schriever, B. Lindsey, and C. Serr. 2019. Swindell Brothers, Baltimore, Maryland. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/SwindellBrothers.pdf
  31. Lockhart, B., P. Schulz, B. Schriever, C. Serr, and B. Lindsey. 2014. Chicago Glass Mfg. Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/ChicagoGlassMfg.pdf
  32. Lockhart, B., B. Schriever, B. Lindsey, C. Serr, and B. Brown. 2020. Whitney Glass Works. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/WhitneyGlass.pdf
  33. Lockhart, B., B. Schriever, B. Lindsey, C. Serr, and B. Brown. 2020. Western Bottle Manufacturing Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/WesternBottle.pdf
  34. Lockhart, B., P. Schulz, B. Schriever, B. Lindsey, C. Serr, and B. Brown. 2020. Whitall Tatum - Part I - Whitall Tatum & Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/WhitallTatum1.pdf
  35. Lockhart, B., P. Schulz, B. Schriever, C. Serr, B. Lindsey, and B. Brown. 2020. Whitall Tatum - Part II - Whitall Tatum Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/WhitallTatum2.pdf
  36. Lockhart, B. 2007. The origins and life of the export beer bottle. Bottles and Extras. May-June 2007: 49-58.
  37. Lockhart, B., P. Schulz, R. Hoenig, P. Perry, C. Serr, and B. Lindsey. 2018. The Owens Bottle Co. Part 1 - History. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/OwensBottleCoPart1.pdf
  38. Lockhart, B., R. Hoenig, B. Schriever, B. Lindsey, and C. Serr. 2018. Owens-Illinois Glass Co. Part 1 - History. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/OwensIllinois2018Part1.pdf
  39. anonymous. accessed May 2022. Owens the Innovator. www.utoledo.edu/library/canaday/exhibits/oi/oiexhibit/owens.htm
  40. Lockhart, B. and R. Hoenig. 2018. Owens-Illinois Glass Co. Part 2 - The bewildering array of Owens-Illinois Glass Co. logos and codes. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/OwensIllinois2018Part2.pdf
  41. Lockhart, B., P. Schulz, C. Serr, B. Lindsey, and B. Brown. 2019. The Thatcher firms. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/ThatcherFirms.pdf
  42. Lindsey, B. accessed in 2023. Historic Glass Bottle Identification & Information Website. Glassmaking & Glassmakers. https://sha.org/bottle/makersmarks.htm
  43. Lockhart, B., N. Briggs, C. Serr, B. Schriever, and B. Lindsey. 2017. Lamb Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/LambGlassCo.pdf
  44. Lockhart, B., P. Schulz, B. Schriever, C. Serr, and B. Lindsey. 2014. Creamery Package Mfg. Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/CreameryPackage.pdf
  45. Lockhart, B., B. Schriever, B. Lindsey, C. Serr, and B. Brown. 2020. Winslow Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/WinslowGlass.pdf
  46. Hoenig, R., B. Lockhart, P. Schulz, C. Serr, L. Jordan, B. Lindsey, and P. Perry. 2013. Berney-Bond Glass Co. In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/Berney-Bond.pdf
  47. Lockhart, B., C. Serr, B. Schriever, and B. Lindsey. 2017. Other "L" marks In: Encyclopedia of Manufacturer's Marks on Historic Bottles. posted on Historic Glass Bottle Identification & Information Website. https://sha.org/bottle/pdffiles/LOther.pdf
